Essential P1655 Standard throw projector 4000 ANSI lumens DLP WUXGA (1920x1200) White
Model P1655Part no. MR.JRE11.001EAN 4710180100983
63 specifications
- TypeStandard throw projector
- Weight2.9 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- Focal length range15.57 - 18.67 mm
Overview
- Type
- Standard throw projector
- Weight
- 2.9 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 15.57 - 18.67 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- P1655
- Part numbers
- MR.JRE11.001, MR.JRE11.002, MR.JRE11.003
- EAN / UPC
- 4710180100983, 4710180078961, 4710180100976
- Also known as
- Acer Essential P1655 Standard throw projector 4000 ANSI lumens DLP WUXGA (1920x1200) White
Specifications
63 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Projection distance | 1 - 5 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, vertical | -40 - 40° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 20000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.57 - 18.67 mm |
| Aperture range (F-F) | 1.94 - 2.06 |
| Zoom capability | Yes |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.47 - 1.76 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |

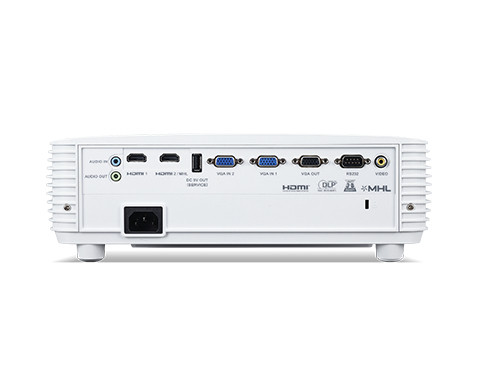

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Microphone in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Desktop |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (economy mode) | 217 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.9 kg |
| Width | 322 mm |
| Depth | 225 mm |
| Height | 91 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | AC |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
