Essential P1260BTi Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) 3D White
Model P1260BTiPart no. MR.JSW11.001EAN 4710180826982
80 specifications
- TypeStandard throw projector
- Weight2.6 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Standard throw projector
- Weight
- 2.6 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- P1260BTi
- Part number
- MR.JSW11.001
- EAN / UPC
- 4710180826982
- Also known as
- Acer Essential P1260BTi Standard throw projector 4000 ANSI lumens DLP XGA (1024x768) 3D White
Specifications
80 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | XGA (1024x768) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 16:9 |
| Screen size compatibility | 1016 - 7620 mm (40 - 300") |
| Projection distance | 1 - 12.1 m |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 90 kHz |
| Vertical scan range | 24 - 85 Hz |
| Horizontal synchronization (max) | 24 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 /+ 30° |
| Keystone correction, vertical | -30 / + 30° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 100 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 22 - 25.79 mm |
| Aperture range (F-F) | 2.42 - 2.62 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.2:1 |
| Throw ratio | 1.94 - 2.33 (1270 mm - 2000 mm) |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |

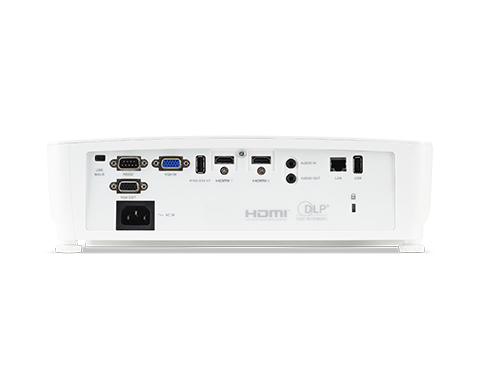

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| DisplayPorts quantity | 4 |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 2 |
| USB 2.0 Type-B ports quantity | 1 |
| Mini-USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| PC in (D-Sub) | Yes |
| Mobile High-Definition Link (MHL) | No |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Wi-Fi | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 2 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Portable |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 270 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.6 kg |
| Width | 332 mm |
| Depth | 244 mm |
| Height | 108 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | Wireless/Wired |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
