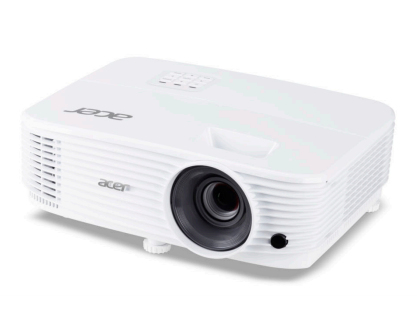

P1155 Standard throw projector 4000 ANSI lumens DLP SVGA (800x600) White
Model P1155Part no. MR.JSH11.001EAN 4710180759389
59 specifications
- Noise31 dB
- TypeStandard throw projector
- Weight2.4 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 31 dB
- Type
- Standard throw projector
- Weight
- 2.4 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- P1155
- Part numbers
- MR.JSH11.001, MR.JSH11.002
- EAN / UPC
- 4710180759389, 4710180759402
- Also known as
- Acer P1155 Standard throw projector 4000 ANSI lumens DLP SVGA (800x600) White
Specifications
59 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | SVGA (800x600) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 4:3 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 558.8 - 7620 mm (22 - 300") |
| Projection distance | 1 - 12 m |
| Number of colours | 1.073 billion colours |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 210 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 22 - 24.01 mm |
| Aperture range (F-F) | 2.56 - 2.68 |
| Zoom capability | Yes |
| Throw ratio | 1.96 - 2.15:1 |
Video
| Specification | Value |
|---|---|
| Full HD | No |
| 3D | No |
| Supported graphics resolutions | 800 x 600 (SVGA) |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 1.4a |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Headphone outputs | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 31 dB |
| Noise level (economic mode) | 27 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 0 - 85% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.4 kg |
| Width | 299.5 mm |
| Depth | 220 mm |
| Height | 105.1 mm |
| Package width | 400 mm |
| Package depth | 297 mm |
| Package height | 155 mm |
| Package weight | 3.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
