X1328 DLP Projector, WXGA (1280×800), 5000 ANSI Lumens
Model MR.JX611.003EAN 4711474020130
87 specifications
- ConnectivityWired
- Noise27 dB
- TypeStandard throw projector
- Weight2.8 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
Overview
- Connectivity
- Wired
- Noise
- 27 dB
- Type
- Standard throw projector
- Weight
- 2.8 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Brand
- Acer
- Category
- Data Projector
- Model
- MR.JX611.003
- Part number
- MR.JX611.003
- EAN / UPC
- 4711474020130
- Also known as
- Acer X1328 DLP Projector, WXGA (1280×800), 5000 ANSI Lumens
Specifications
87 specifications in 17 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 685.8 - 7620 mm (27 - 300") |
| Projection distance | 1 - 10 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4000 ANSI lumens |
| Uniformity | 80% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | OSRAM |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 21.85 - 24 mm |
| Aperture range (F-F) | 2.41 - 2.53 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Digital zoom | 2x |
| Optical zoom | 1.1x |
| Throw ratio | 1.54 – 1.72 (60" @ 2 m) |
| Offset | 125% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Digital signal format system | EDTV, HDTV, SDTV |
| Supported graphics resolutions | 1920 x 1200 (WUXGA) |

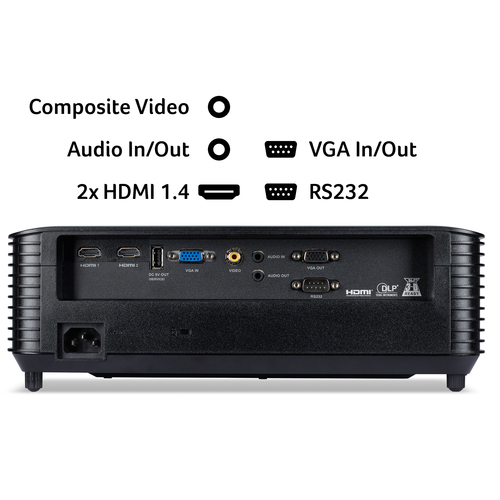

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4b |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Noise level | 27 dB |
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| Country of origin | China |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Business |
| Product colour | Black |
| Placement | Ceiling |
| Cable lock slot type | Kensington |
| LED indicators | Light, Power, Temperature |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 275 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 100 - 240 V |
Software
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
| Other operating systems supported | ChromeOS |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
| Package width | 400 mm |
| Package depth | 340 mm |
| Package height | 168 mm |
| Package weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
| Packaging content | Lens Cap Security Card |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
| Maximum digital resolution | 1920 x 1200 pixels |
| RS-232 ports | 1 |
| Security features | Security Bar |
| Special features | Acer ColorBoost3D™ Acer LumiSense™ Acer BlueLightShield™ Acer ColorSafe II Automatic Vertical Keystone Correction Eco-Mode |
