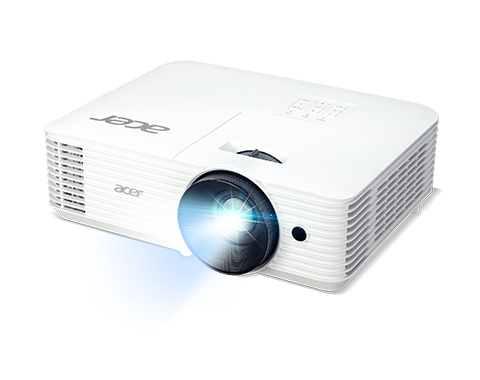

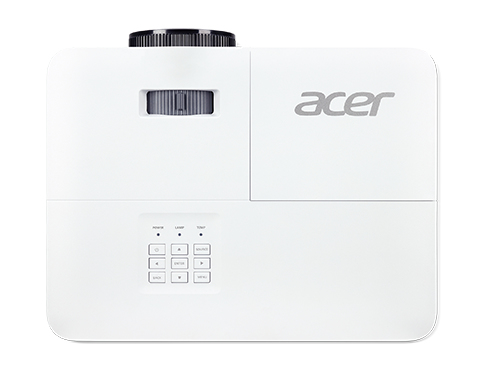

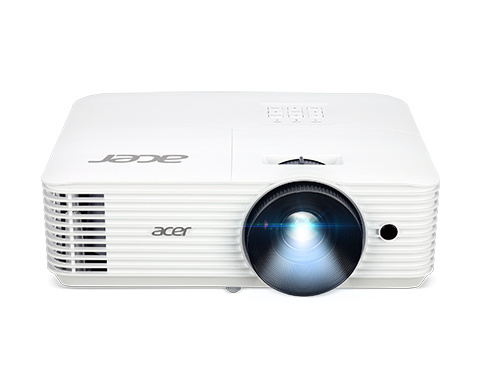

M311 Standard throw projector 4500 ANSI lumens WXGA (1280x800) 3D White
Model M311Part no. MR.JUT11.00MEAN 4710886681878
55 specifications
- ProcessorRK3328
- Memory2 GB
- TypeStandard throw projector
- Weight2.7 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
Overview
- Processor
- RK3328
- Memory
- 2 GB
- Type
- Standard throw projector
- Weight
- 2.7 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Brand
- Acer
- Category
- Data Projector
- Model
- M311
- Part numbers
- MR.JUT11.00M, MR.JUT11.003
- EAN / UPC
- 4710886681878, 4710886662099
- Also known as
- Acer M311 Standard throw projector 4500 ANSI lumens WXGA (1280x800) 3D White
Specifications
55 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projector native resolution | WXGA (1280x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 0 - 7620 mm (0 - 300") |
| Projection distance | 1 - 10 m |
| Number of colours | 1.07 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, vertical | -40 - 40° |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | LED |
| Lamp power | 220 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 21.85 - 24 mm |
| Aperture range (F-F) | 2.41 - 2.53 |
| Throw ratio | 1,54 a 1,72 (1524 mm@2000 mm) |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11ad, 802.11b, Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Storage
| Specification | Value |
|---|---|
| Internal memory | 2 GB |
| Internal memory type | DDR4 |
Features
| Specification | Value |
|---|---|
| Projection modes | Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 260 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Processor
| Specification | Value |
|---|---|
| Processor architecture | ARM Cortex-A53 |
| Processor model | RK3328 |
| Processor cores | 4 |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
