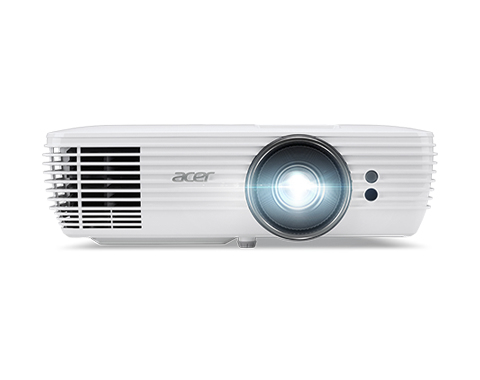

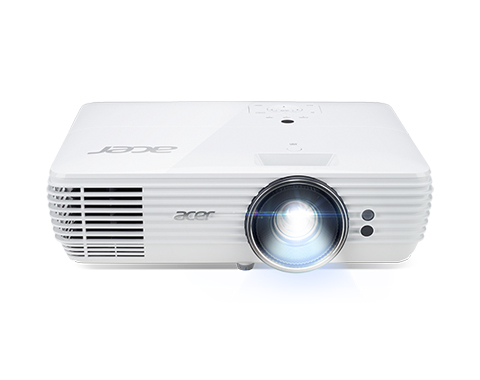

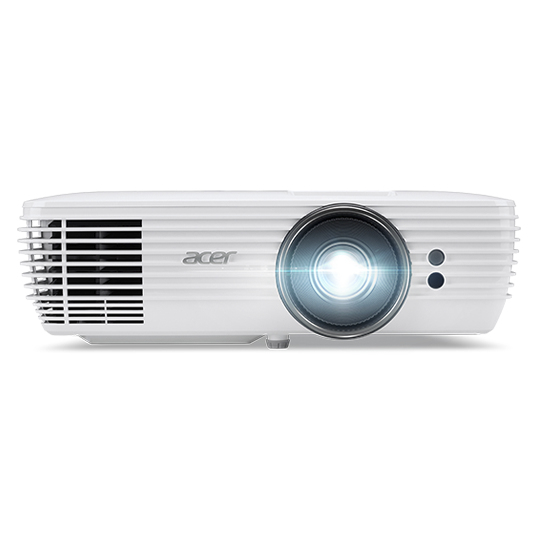

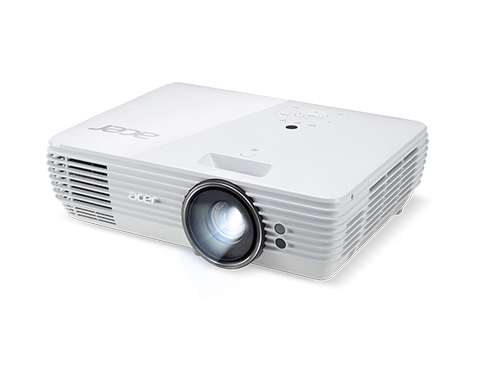

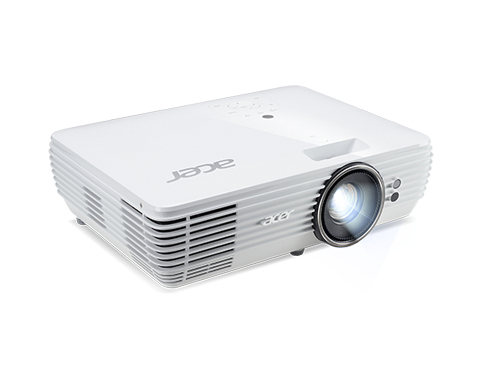

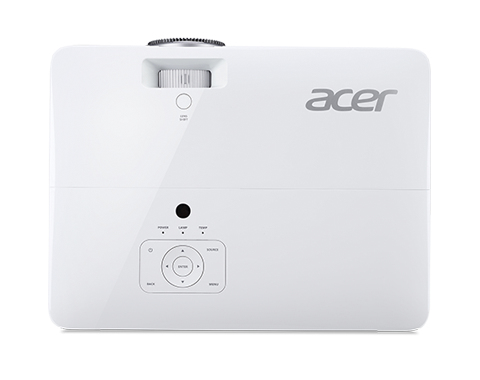

HV832 Standard throw projector 2200 ANSI lumens DLP UHD 4K (3840x2160) White
Model HV832Part no. MR.JQE11.00EEAN 4713883693202
47 specifications
- TypeStandard throw projector
- Weight4 kg
- ColourWhite
- Projector brightness2200 ANSI lumens
- Light source typeLamp
- Focal length range5.57 - 18.67 mm
Overview
- Type
- Standard throw projector
- Weight
- 4 kg
- Colour
- White
- Projector brightness
- 2200 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 5.57 - 18.67 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- HV832
- Part number
- MR.JQE11.00E
- EAN / UPC
- 4713883693202
- Also known as
- Acer HV832 Standard throw projector 2200 ANSI lumens DLP UHD 4K (3840x2160) White
Specifications
47 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 660.4 - 7620 mm (26 - 300") |
| Projection distance | 2 - 9.8 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 135 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -40° |
| Keystone correction, vertical | +40° |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 5.57 - 18.67 mm |
| Fixed focal length | 5.57 mm |
| Aperture range (F-F) | 1.94 - 2.4 |
| Zoom ratio | 1.2:1 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

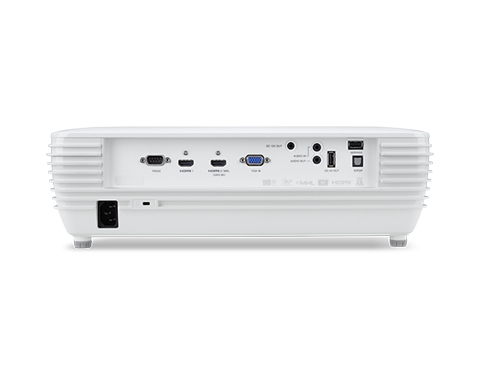

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| AC (power) in | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | White |
| Placement | Ceiling, Floor |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 335 W |
| Power consumption (economy mode) | 270 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
Packaging content
| Specification | Value |
|---|---|
| Carrying case | Yes |
| Mounting brackets included | Yes |
