Home Cinema PL1520i
Model Home Cinema PL1520iPart no. MR.JRU11.002EAN 4710180568011
54 specifications
- TypeStandard throw projector
- Weight4.5 kg

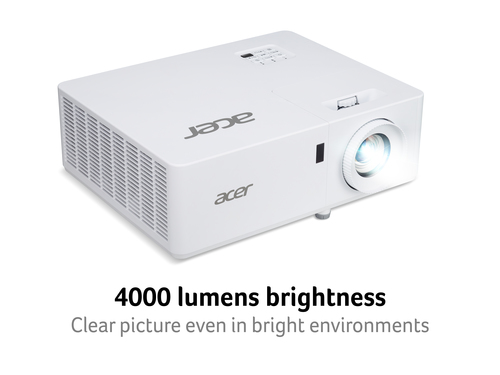

- Projector brightness4000 ANSI lumens
- Light source typeLamp
- FocusAuto
- Analog signal format systemNTSC, PAL, SECAM
Overview
- Type
- Standard throw projector
- Weight
- 4.5 kg
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focus
- Auto
- Analog signal format system
- NTSC, PAL, SECAM
- Brand
- Acer
- Category
- Data Projector
- Model
- Home Cinema PL1520i
- Part number
- MR.JRU11.002
- EAN / UPC
- 4710180568011
- Also known as
- Acer Essential Home Cinema PL1520i Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) 3D
Specifications
54 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 584.2 - 7620 mm (23 - 300") |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |

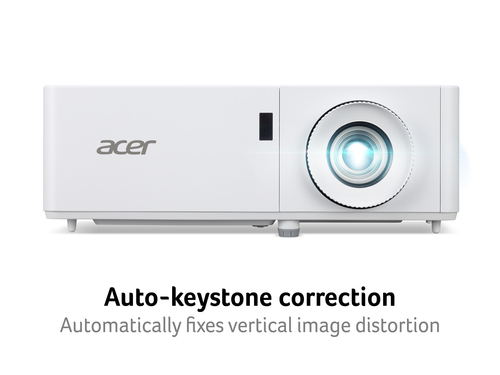

| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 0.024 kHz |
| Vertical synchronization (min) | 0.12 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto |
| Focal length range | 15.98 - 21.42 mm |
| Aperture range (F-F) | 2.5 - 2.93 |
| Zoom capability | Yes |
| Zoom ratio | 2.0:1 |
| Throw ratio | 1.21 to 1.59 (1905 mm@2000 mm) |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160 |

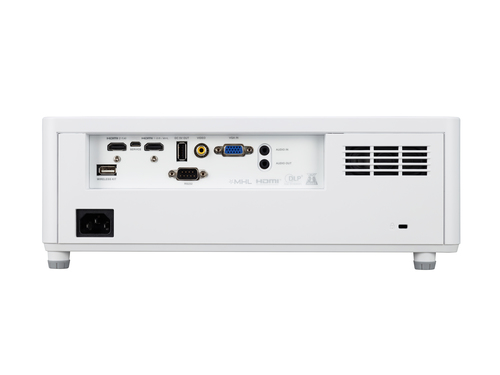

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Placement | Desktop, Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4.5 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
