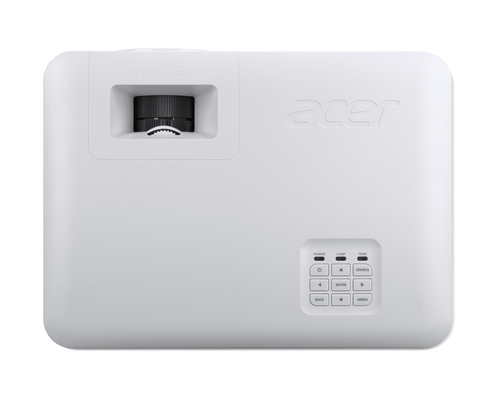

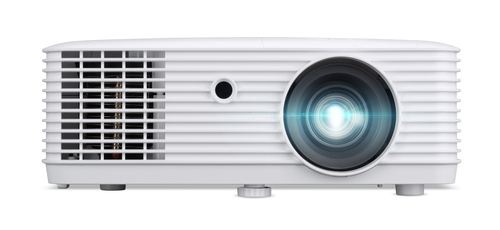

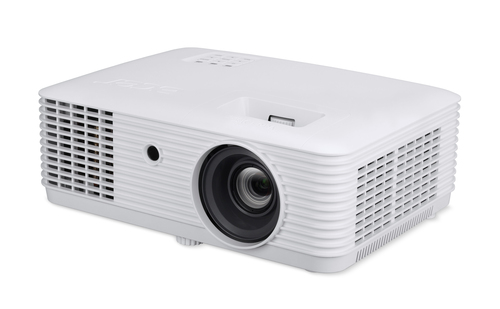

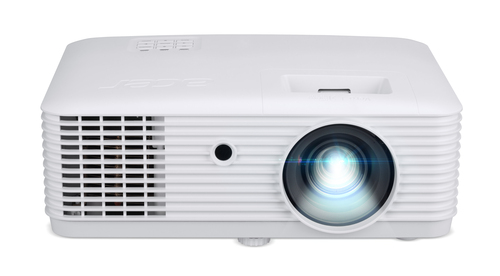

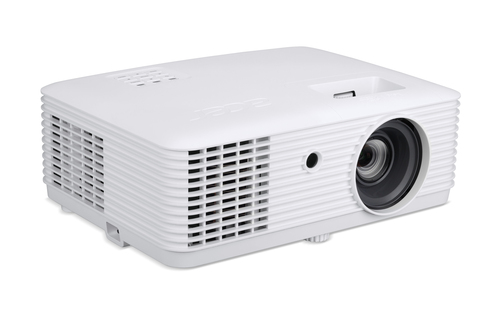

Vero HL6810 Standard throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) White
Model HL6810Part no. MR.JX511.006EAN 4711474076632
60 specifications
- Noise29 dB
- TypeStandard throw projector
- Weight3.2 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLaser/LED hybrid
Overview
- Noise
- 29 dB
- Type
- Standard throw projector
- Weight
- 3.2 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser/LED hybrid
- Brand
- Acer
- Category
- Data Projector
- Model
- HL6810
- Part number
- MR.JX511.006
- EAN / UPC
- 4711474076632
- Also known as
- Acer Vero HL6810 Standard throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) White
Specifications
60 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 50000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Horizontal synchronization (max) | 135 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
| Vertical synchronization (max) | 240 kHz |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser/LED hybrid |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.88 - 21.88 mm |
| Aperture range (F-F) | 2.48 - 2.78 |
| Zoom ratio | 1.3:1 |
| Vertical lens shift range | 55 - 65% |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

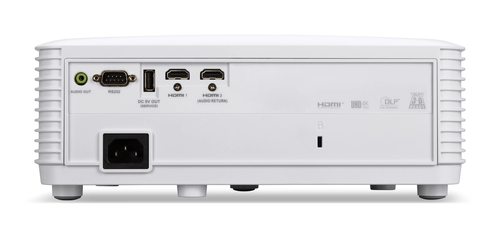

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0b |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| USB connector type | USB Type-A |
Features
| Specification | Value |
|---|---|
| Noise level (economic mode) | 29 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
| HDCP version | 2.2 |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Presentation |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 250 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 155 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.2 kg |
| Width | 304 mm |
| Depth | 226 mm |
| Height | 119 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| AC adapter included | Yes |
| Cables included | AC |
| Carrying case | Yes |
