HL6513i Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) 3D White
Model HL6513iPart no. MR.P0Q11.008EAN 4711474933959
72 specifications
- Noise28 dB
- TypeStandard throw projector
- Weight3.3 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLaser
Overview
- Noise
- 28 dB
- Type
- Standard throw projector
- Weight
- 3.3 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Laser
- Brand
- Acer
- Category
- Data Projector
- Model
- HL6513i
- Part number
- MR.P0Q11.008
- EAN / UPC
- 4711474933959
- Also known as
- Acer HL6513i Standard throw projector 4000 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
72 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9, 4:3 |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1.1 - 10 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Uniformity | 80% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 240 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Service life of light source (economic mode) | 30000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 15.843 - 17.445 mm |
| Aperture range (F-F) | 2 - 2.05 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Throw ratio | 1.50 - 1.65:1 |
| Offset | 110% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 1080p |

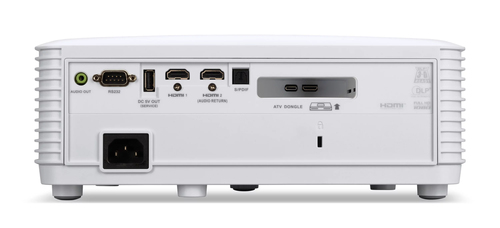

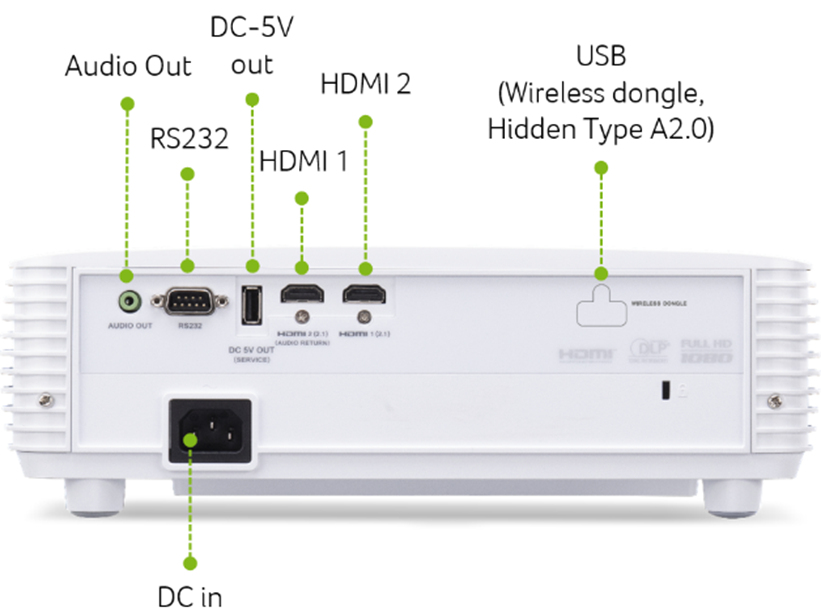

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level (economic mode) | 28 dB |
| HDCP | Yes |
| Projection modes | Front, Rear, Ceiling |
| High Dynamic Range (HDR) supported | Yes |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
| Video formats supported | MPEG4, H.264, H.265, VC-1 |
| Image formats supported | JPEG, PNG, BMP |
| Audio formats supported | MP1, MP3, MP2, WMA, AAC, WAV |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Gaming |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (standby) | 195 W |
| Power consumption (economy mode) | 120 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.3 kg |
| Width | 286 mm |
| Depth | 216 mm |
| Height | 115.5 mm |
| Package width | 400 mm |
| Package depth | 168 mm |
| Package height | 340 mm |
| Package weight | 3.45 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Cables included | HDMI, AC |
| Carrying case | Yes |
