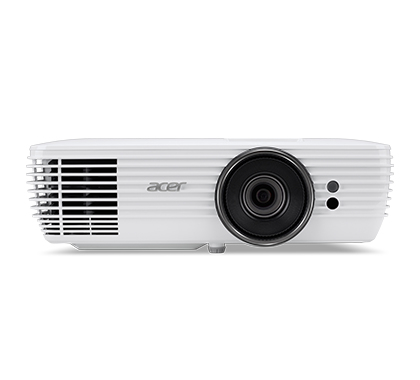

H7850BD Standard throw projector 3000 ANSI lumens DLP UHD 4K (3840x2160) White
Model H7850BDPart no. MR.JPC11.00VEAN 4710180207163
67 specifications
- TypeStandard throw projector
- Weight5.5 kg
- ColourWhite
- Projector brightness3000 ANSI lumens
- Light source typeLamp
- Focal length range20.91 - 32.62 mm
Overview
- Type
- Standard throw projector
- Weight
- 5.5 kg
- Colour
- White
- Projector brightness
- 3000 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 20.91 - 32.62 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- H7850BD
- Part number
- MR.JPC11.00V
- EAN / UPC
- 4710180207163, 4710180505542
- Also known as
- Acer H7850BD Standard throw projector 3000 ANSI lumens DLP UHD 4K (3840x2160) White
Specifications
67 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 1000000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 15.2 - 7670.8 mm (0.6 - 302") |
| Projection distance | 1.3 - 9.3 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 135 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Vertical synchronization (max) | 120 kHz |
| Vertical synchronization (min) | 24 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 20.91 - 32.62 mm |
| Aperture range (F-F) | 2.5 - 3.26 |
| Zoom capability | Yes |
| Zoom ratio | 1.6:1 |
| Throw ratio | 1.39 - 2.22 |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |

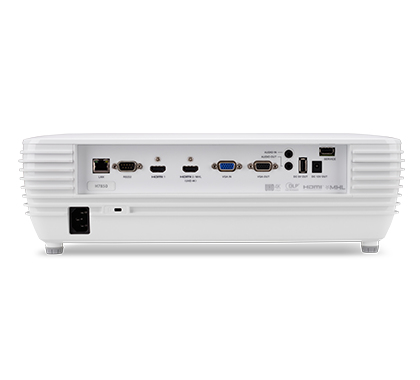

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 0 |
| Serial interface type | RS-232 |
| PC Audio in | Yes |
| PC Audio out | Yes |
| PC in (D-Sub) | Yes |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 2 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 315 W |
| Power consumption (economy mode) | 260 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5.5 kg |
| Width | 398 mm |
| Depth | 297.5 mm |
| Height | 127 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Carrying case | Yes |
| Manual | Yes |
