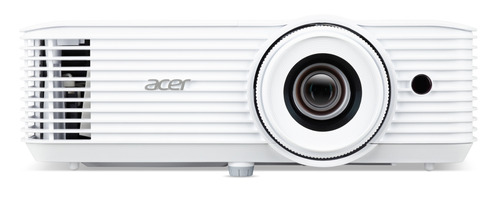

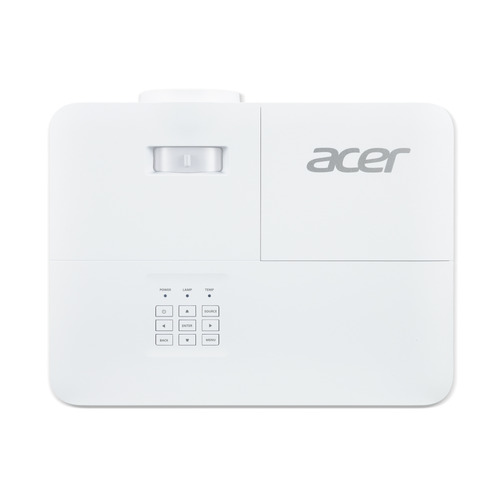

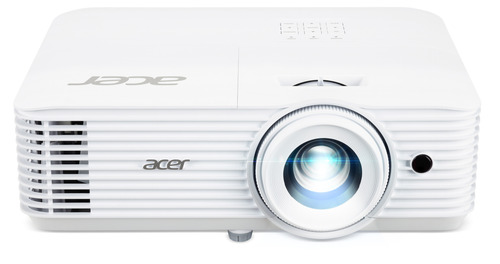

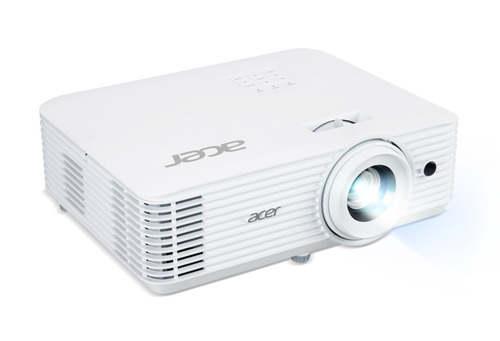

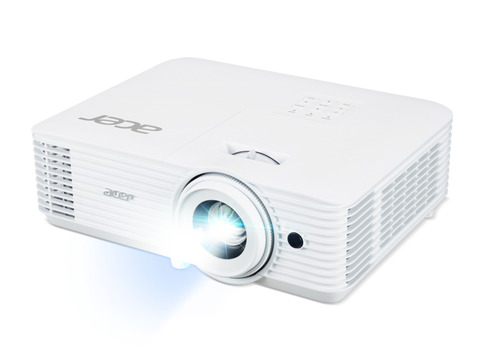

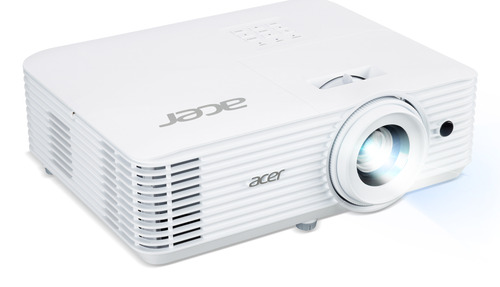

H6815P projector - 4K Ultra HD, 4,000 ANSI lm
Model H6815PPart no. MR.JWK11.002EAN 4711121471759
66 specifications
- ConnectivityWired
- Noise26 dB
- TypeStandard throw projector
- Weight3.1 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
Overview
- Connectivity
- Wired
- Noise
- 26 dB
- Type
- Standard throw projector
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Brand
- Acer
- Category
- Data Projector
- Model
- H6815P
- Part numbers
- MR.JWK11.002, MR.JWK11.001
- EAN / UPC
- 4711121471759, 4711121443725
- Also known as
- Acer H6815P projector - 4K Ultra HD, 4,000 ANSI lm
Specifications
66 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9, 4:3 |
| Smart projector | No |
| Screen size compatibility | 762 - 7620 mm (30 - 300") |
| Projection distance | 1 - 10 m |
| Contrast ratio (dynamic) | 10000:1 |
| Projector brightness (economic mode) | 2600 ANSI lumens |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 240 Hz |
| Keystone correction, horizontal | +/- 30° |
| Keystone correction, vertical | +/- 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 15.84 - 17.44 mm |
| Aperture range (F-F) | 1.98 - 2.02 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.5 - 1.66 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |

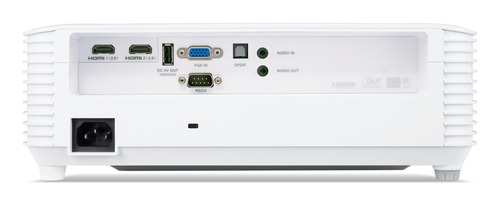

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| S/PDIF out port | Yes |
| AC (power) in | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 26 dB |
| Projection modes | Ceiling, Front, Rear |
| Country of origin | China |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 215 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
| Package width | 400 mm |
| Package depth | 340 mm |
| Package height | 168 mm |
| Package weight | 4.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
| Carrying case | Yes |
| Manual | Yes |
Other features
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
