H6815GTV Standard throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) 3D
Model H6815GTVPart no. MR.JXP11.002EAN 4711474144225
66 specifications
- TypeStandard throw projector
- Weight2.8 kg
- Projector brightness4000 ANSI lumens
- Light source typeLamp
- FocusManual
- Full HDYes
Overview
- Type
- Standard throw projector
- Weight
- 2.8 kg
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Full HD
- Yes
- Brand
- Acer
- Category
- Data Projector
- Model
- H6815GTV
- Part numbers
- MR.JXP11.002, MR.JXP11.001
- EAN / UPC
- 4711474144225, 4711474137623
- Also known as
- Acer H6815GTV Standard throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) 3D
Specifications
66 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9, 4:3 |
| Smart projector | Yes |
| Screen size compatibility | 685.8 - 7620 mm (27 - 300") |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 240 Hz |
| Keystone correction, horizontal | +/- 40° |
| Keystone correction, vertical | +/- 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 15.84 - 17.44 mm |
| Aperture range (F-F) | 2 - 2.05 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
| Throw ratio | 1.5 to 1.65 |
| Offset | 120% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |

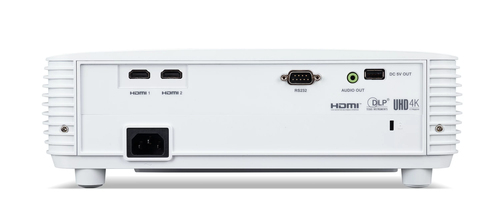

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0b |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac) |
| Bluetooth | Yes |
| Bluetooth version | 5.0 |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 220 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 322 mm |
| Depth | 225 mm |
| Height | 93.8 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, HDMI |
| Carrying case | Yes |
| Manual | Yes |
