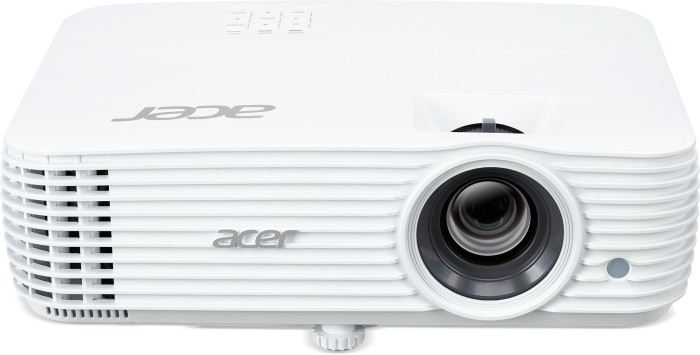

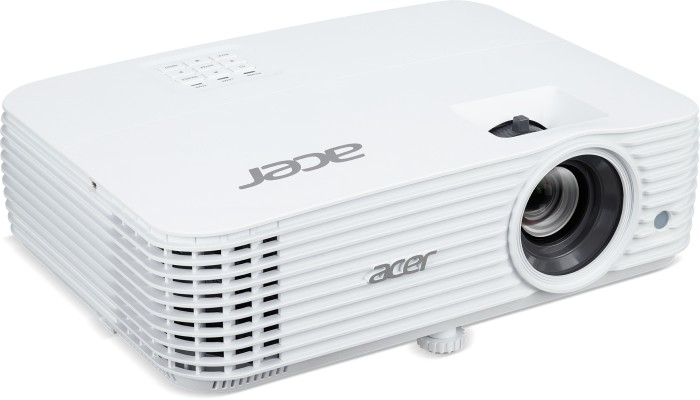

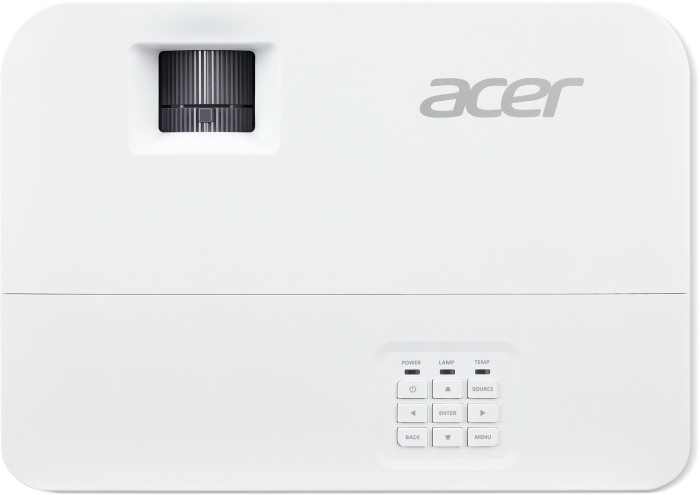

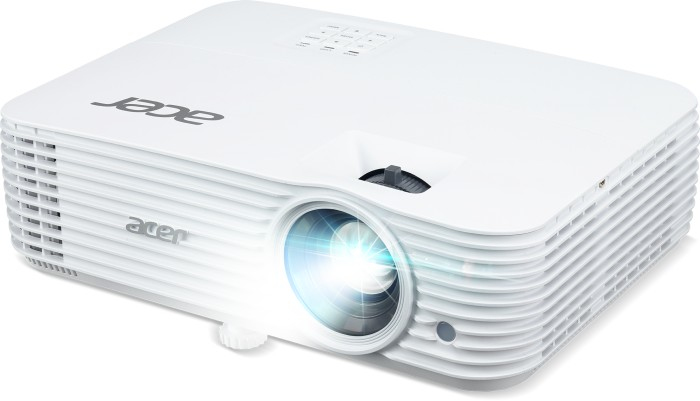

H6815BD Standard throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Model H6815BDPart no. MR.JTA11.001EAN 4710886118947
43 specifications
- TypeStandard throw projector
- Weight2.88 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Focal length range15.84 - 17.45 mm
- Analog signal format systemNTSC, PAL, SECAM
Overview
- Type
- Standard throw projector
- Weight
- 2.88 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Focal length range
- 15.84 - 17.45 mm
- Analog signal format system
- NTSC, PAL, SECAM
- Brand
- Acer
- Category
- Data Projector
- Model
- H6815BD
- Part numbers
- MR.JTA11.001, MR.JTA11.003, MR.JTA11.002
- EAN / UPC
- 4710886118947, 4710886118930, 4710886118954
- Also known as
- Acer H6815BD Standard throw projector 4000 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Specifications
43 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Projection distance | 1 - 10 m |
| Number of colours | 1.073 billion colours |
| Vertical scan range | 24 - 240 Hz |
| Keystone correction, horizontal | -40 - 40° |
| Keystone correction, vertical | -40 - 40° |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.84 - 17.45 mm |
| Aperture range (F-F) | 2 - 2.05 |
| Zoom capability | Yes |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 3840 x 2160 |
Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI version | 1.4 |
| Audio (L/R) out | 1 |
Features
| Specification | Value |
|---|---|
| Compatible operating systems | Mac Windows |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Desktop, Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 245 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.88 kg |
| Width | 322 mm |
| Depth | 225 mm |
| Height | 93.8 mm |
| Package width | 433 mm |
| Package depth | 162 mm |
| Package height | 297 mm |
| Package weight | 4.2 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
