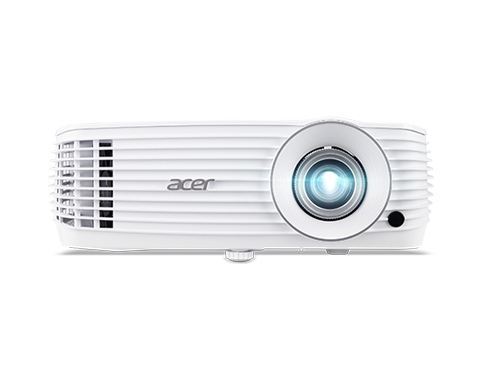

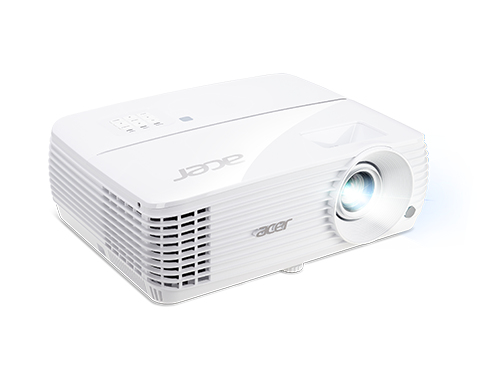

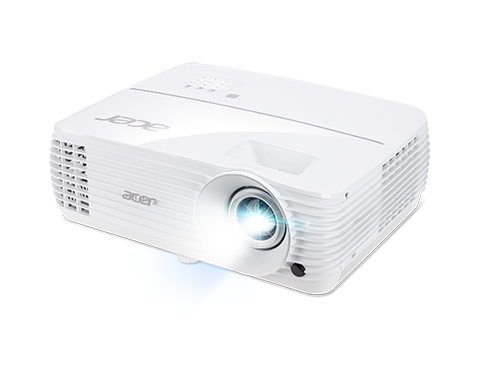

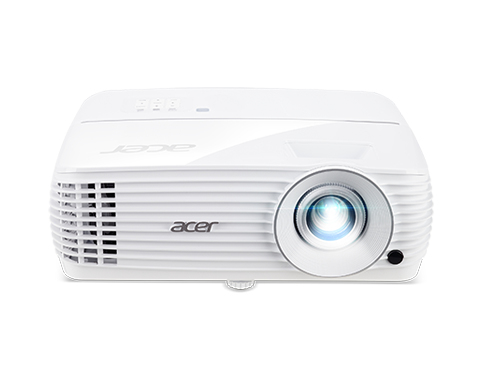

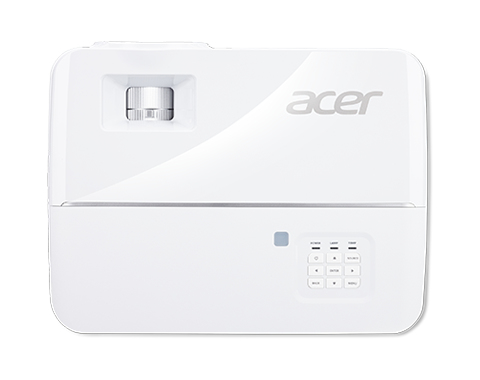

Home H6810BD Standard throw projector 3500 ANSI lumens DLP UHD 4K (3840x2160) White
Model H6810BDPart no. MR.JRK11.001EAN 4710180207125
55 specifications
- Noise33 dB
- TypeStandard throw projector
- Weight4 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 33 dB
- Type
- Standard throw projector
- Weight
- 4 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- H6810BD
- Part numbers
- MR.JRK11.001, MR.JRK11.002
- EAN / UPC
- 4710180207125, 4710180207156
- Also known as
- Acer Home H6810BD Standard throw projector 3500 ANSI lumens DLP UHD 4K (3840x2160) White
Specifications
55 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 660.4 - 7620 mm (26 - 300") |
| Projection distance | 1 - 9.8 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 135 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, vertical | -40/+40° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | UHP |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 15.57 - 18.67 mm |
| Aperture range (F-F) | 1.94 - 2.06 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Optical zoom | 1.2x |
| Throw ratio | 1.46 - 1.76 |

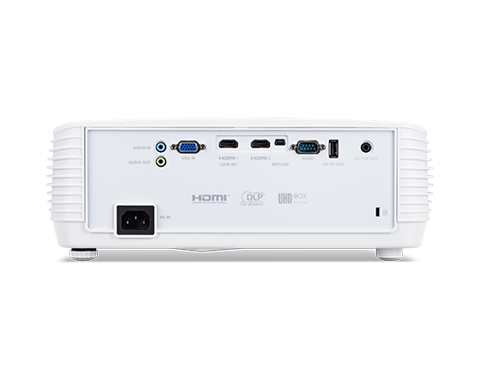

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Features
| Specification | Value |
|---|---|
| Noise level | 33 dB |
| Noise level (economic mode) | 29 dB |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 335 W |
| Power consumption (PowerSave) | 270 W |
| AC input voltage | 100 - 240 V |
Software
| Specification | Value |
|---|---|
| Mac compatibility | Yes |
| Windows operating systems supported | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 4 kg |
| Width | 343 mm |
| Depth | 258 mm |
| Height | 124.6 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
