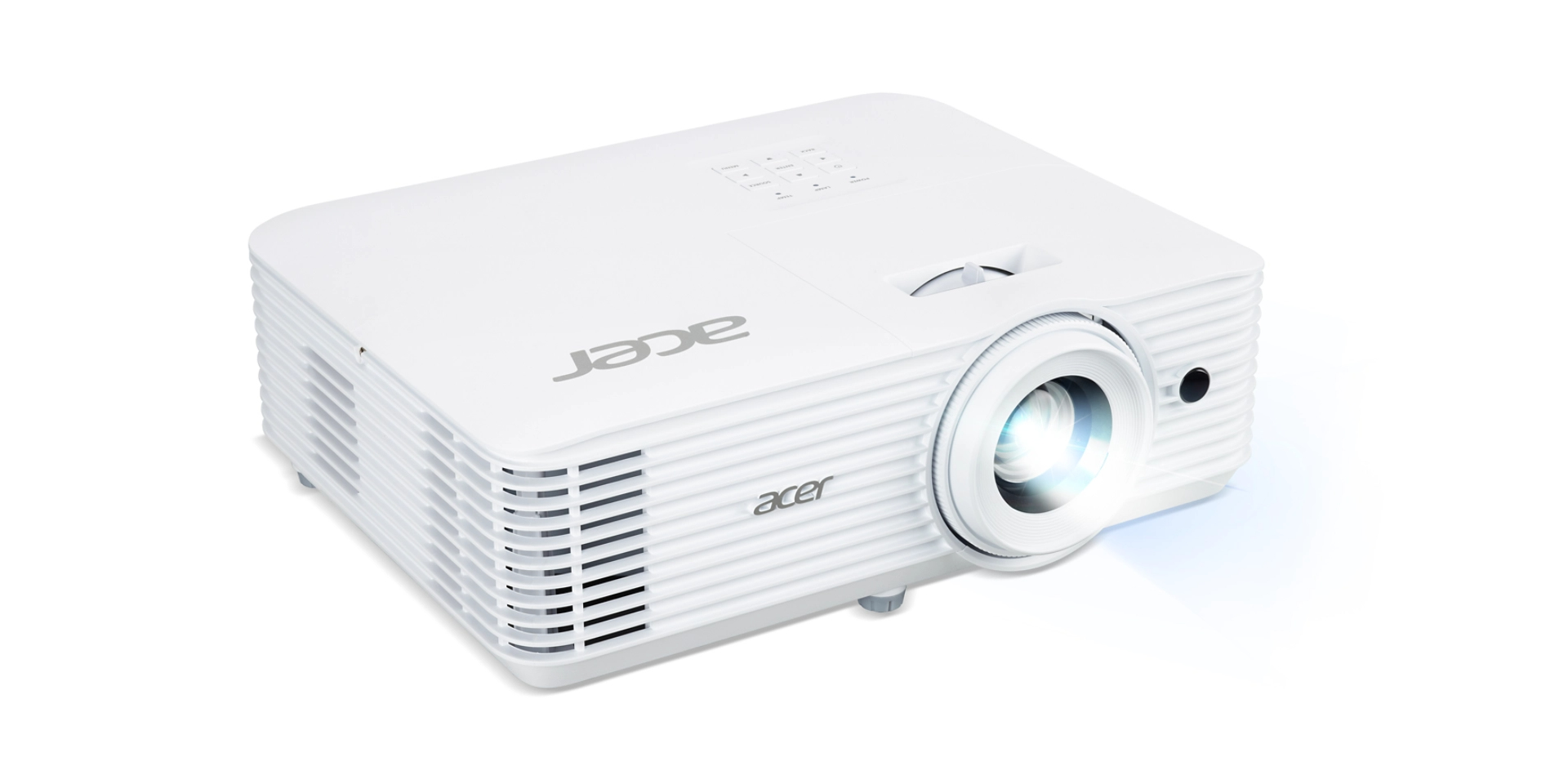

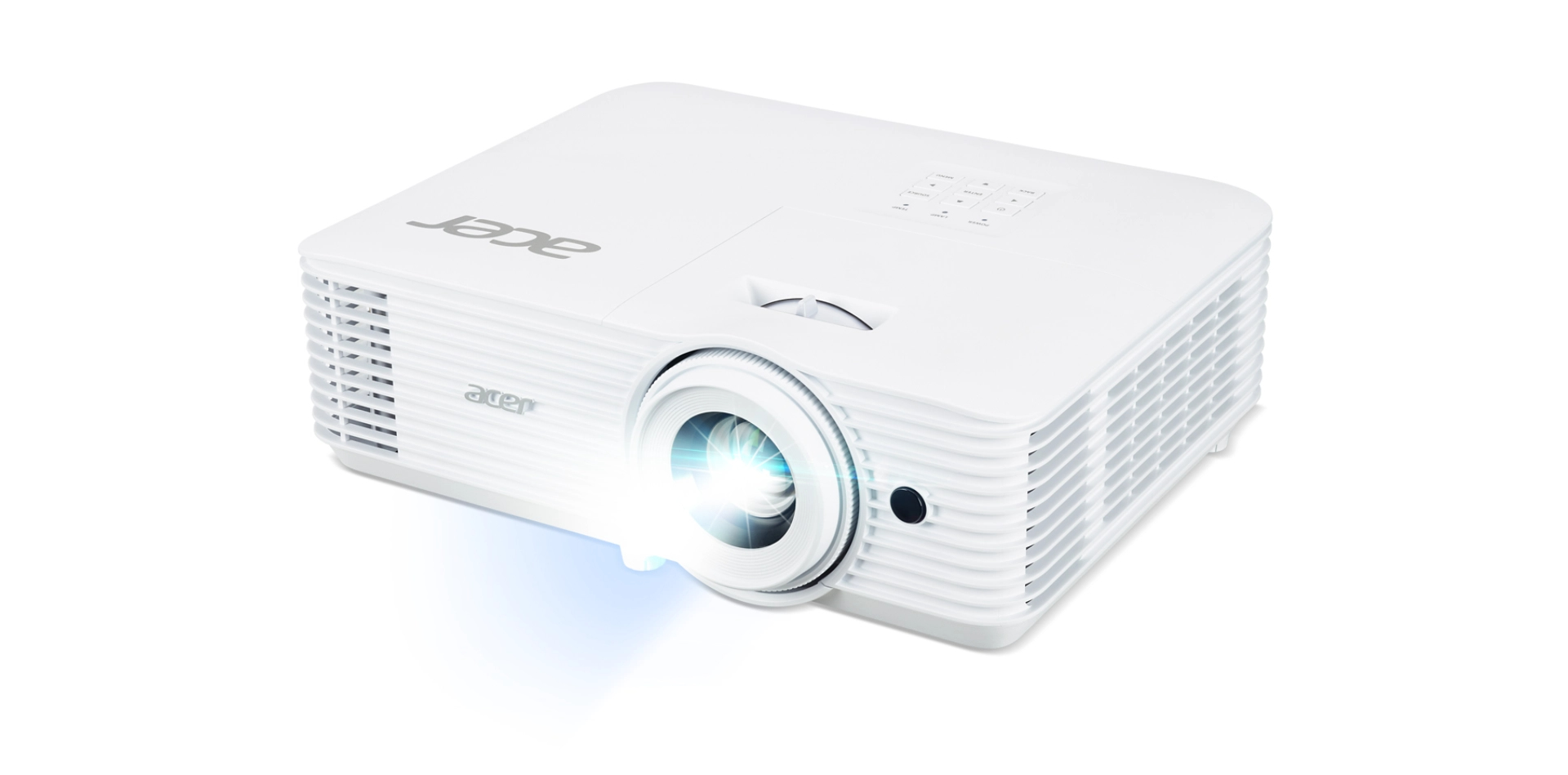

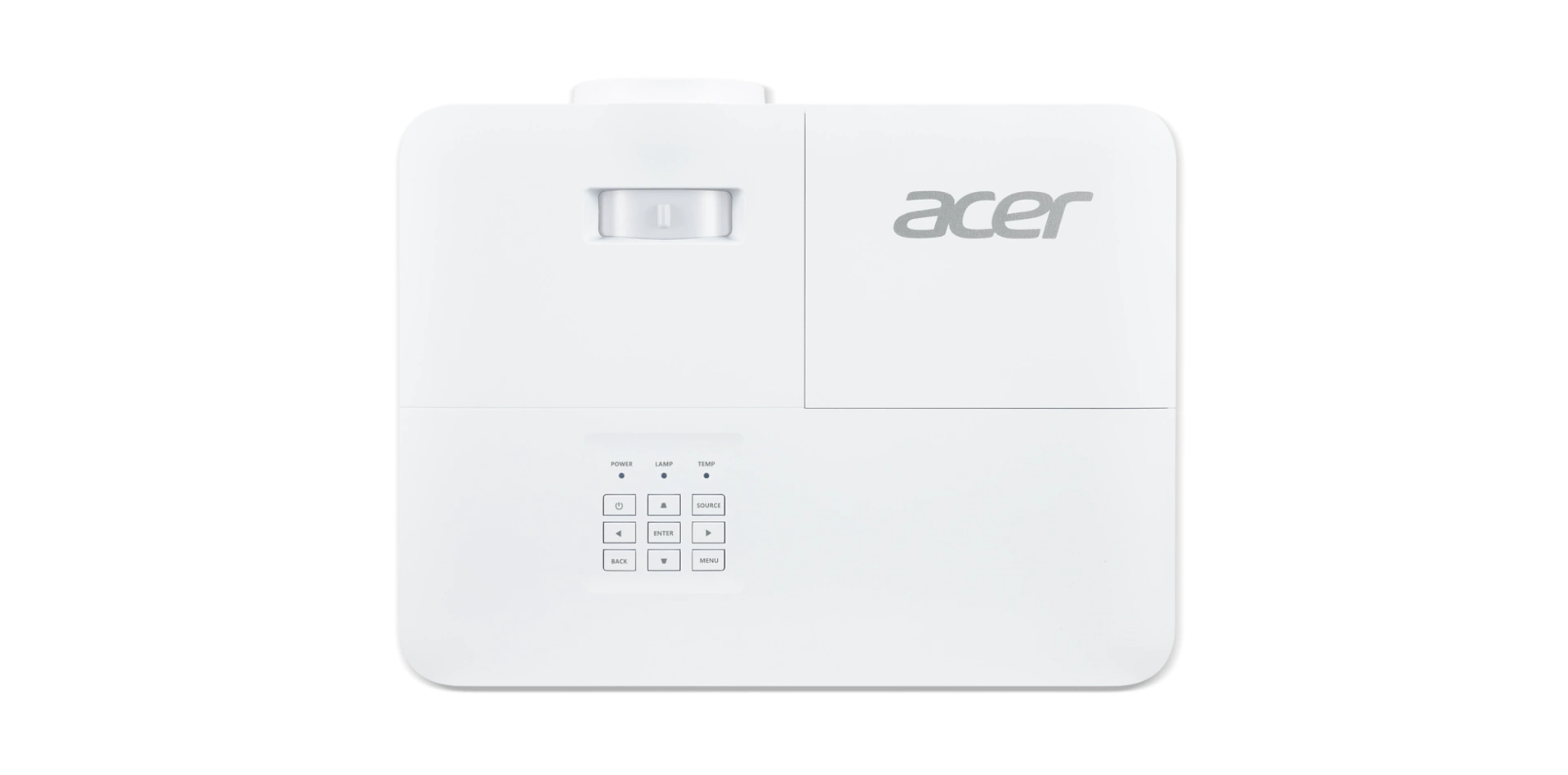

H6805BDa Standard throw projector 4000 ANSI lumens DLP DCI 4K (4096x2160) White
Model H6805BDaPart no. MR.JTB11.00SEAN 4711121306808
46 specifications
- Noise26 dB
- TypeStandard throw projector
- Weight3.1 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 26 dB
- Type
- Standard throw projector
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- H6805BDa
- Part number
- MR.JTB11.00S
- EAN / UPC
- 4711121306808
- Also known as
- Acer H6805BDa Standard throw projector 4000 ANSI lumens DLP DCI 4K (4096x2160) White
Specifications
46 specifications in 11 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | DCI 4K (4096x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 135 kHz |
| Vertical scan range | 24 - 240 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | AC HID |
| Lamp power | 245 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Zoom capability | Yes |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |

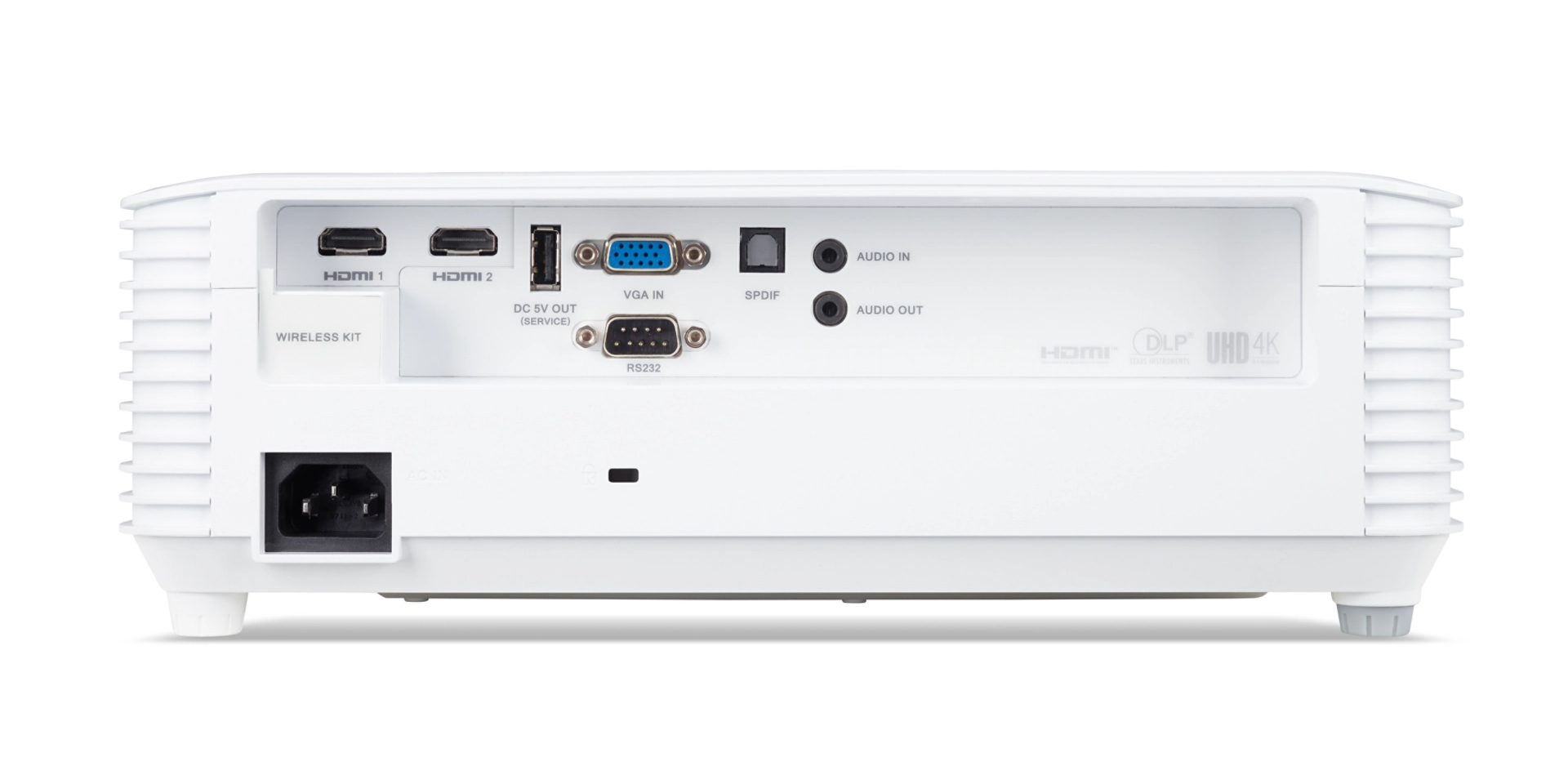

Ports & interfaces
| Specification | Value |
|---|---|
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 2.0 |
| USB 2.0 ports quantity | 2 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| S/PDIF out port | Yes |
| Composite video out | 1 |
Network
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Miracast | Yes |
Features
| Specification | Value |
|---|---|
| Noise level | 26 dB |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
