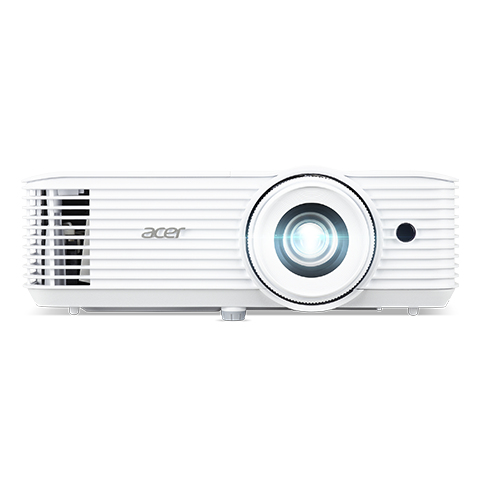

Home H6800BDa Standard throw projector 3600 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Model H6800BDaPart no. MR.JTB11.00MEAN 4710886121633
60 specifications
- TypeStandard throw projector
- Weight3.1 kg
- ColourWhite
- Projector brightness3600 ANSI lumens
- Light source typeLamp
- Focal length range15.84 - 17.44 mm
Overview
- Type
- Standard throw projector
- Weight
- 3.1 kg
- Colour
- White
- Projector brightness
- 3600 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 15.84 - 17.44 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- H6800BDa
- Part numbers
- MR.JTB11.00M, MR.JTB11.002, MR.JTB11.001
- EAN / UPC
- 4710886121633, 4710886434436, 4710886121640
- Also known as
- Acer Home H6800BDa Standard throw projector 3600 ANSI lumens DLP UHD 4K (3840x2160) 3D White
Specifications
60 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3600 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | UHD 4K (3840x2160) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Smart projector | Yes |
| Projection distance | 1 - 10 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 291 kHz |
| Vertical scan range | 24 - 240 Hz |
| Keystone correction, horizontal | -30 - 30° |
| Keystone correction, vertical | -30 - 30° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 4000 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp power | 240 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.84 - 17.44 mm |
| Throw ratio | 1.5 - 1.66 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| S/PDIF out port | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | Yes |
| Ethernet LAN | No |
| Wi-Fi | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Projection modes | Ceiling, Front, Rear |
| High Dynamic Range (HDR) supported | Yes |
| High Dynamic Range (HDR) technology | High Dynamic Range 10 (HDR10) |
| Compatible operating systems | Mac OS, Windows |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 310 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
