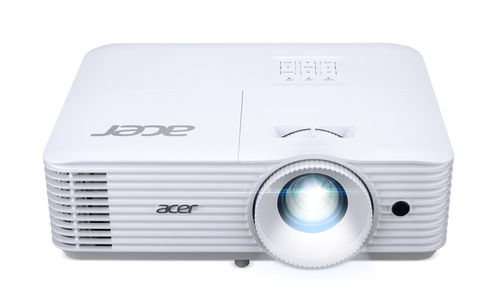

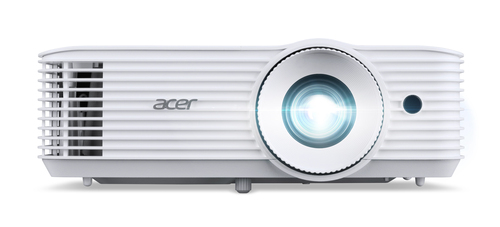

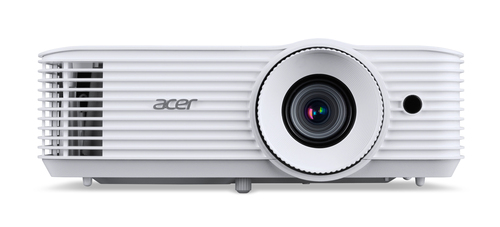

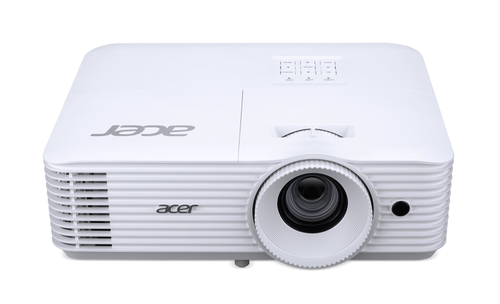

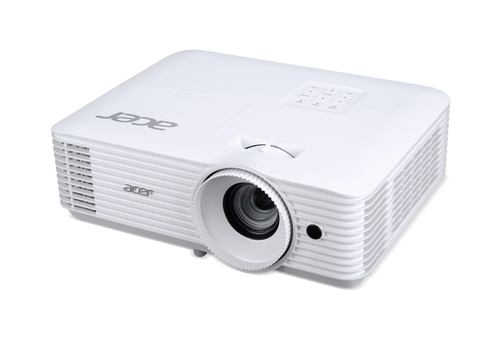

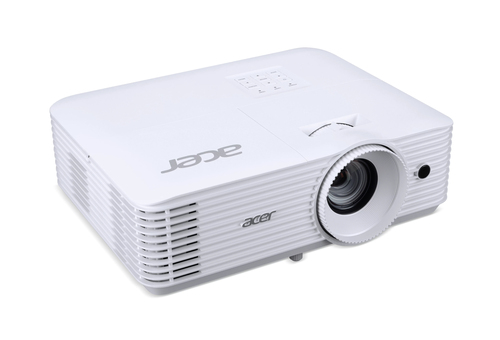

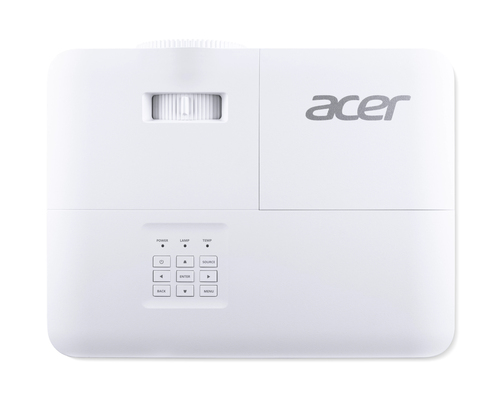

H6560 Standard throw projector 5200 ANSI lumens DLP 1080p (1920x1080) 3D White
Model H6560Part no. MR.JY511.001EAN 4711474283924
57 specifications
- TypeStandard throw projector
- Weight2.8 kg
- ColourWhite
- Projector brightness5200 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Standard throw projector
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 5200 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- H6560
- Part number
- MR.JY511.001
- EAN / UPC
- 4711474283924
- Also known as
- Acer H6560 Standard throw projector 5200 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
57 specifications in 12 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 15000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 787.4 - 7620 mm (31 - 300") |
| Projector brightness (economic mode) | 4160 ANSI lumens |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 240 W |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 16.9 - 21.61 mm |
| Aperture range (F-F) | 2.43 - 2.78 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.3:1 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |

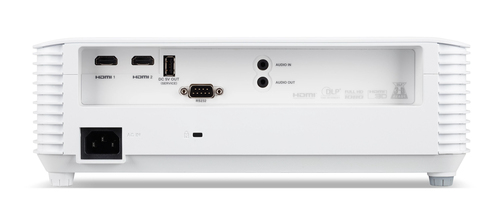

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4b |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Features
| Specification | Value |
|---|---|
| HDCP | Yes |
| Projection modes | Rear, Ceiling, Front |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
| Cable lock slot | Yes |
| Cable lock slot type | Kensington |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 290 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 210 W |
| AC input voltage | 100 - 240 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 313 mm |
| Depth | 236 mm |
| Height | 113.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC |
