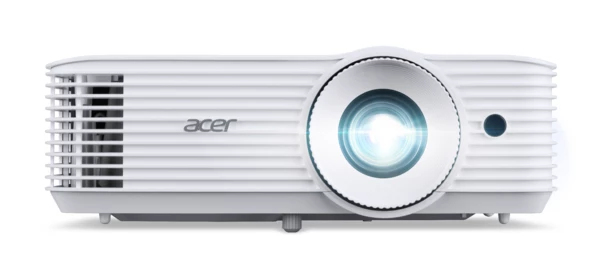

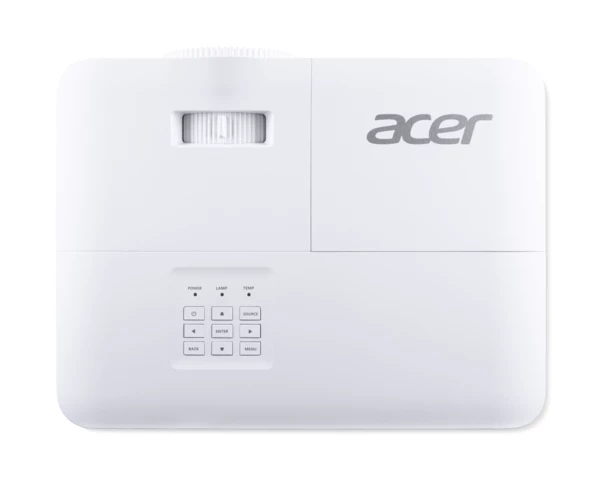

H6545 4000 ANSI lumens DLP 1080p (1920x1080) 3D White
Model H6545Part no. MR.P0Y11.007EAN 4711721094877
53 specifications
- Noise27 dB
- Weight2.8 kg
- ColourWhite
- Projector brightness4000 ANSI lumens
- Service life of light source5000 h
- FocusAuto/Manual
Overview
- Noise
- 27 dB
- Weight
- 2.8 kg
- Colour
- White
- Projector brightness
- 4000 ANSI lumens
- Service life of light source
- 5000 h
- Focus
- Auto/Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- H6545
- Part number
- MR.P0Y11.007
- EAN / UPC
- 4711721094877
- Also known as
- Acer H6545 4000 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
53 specifications in 13 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 711.2 - 7620 mm (28 - 300") |
| Projection distance | 1 - 10 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 3200 ANSI lumens |
| Uniformity | 75% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Service life of light source | 5000 h |
| Service life of light source (economic mode) | 10000 h |
Lens system
| Specification | Value |
|---|---|
| Focus | Auto/Manual |
| Focal length range | 15.59 - 17.14 mm |
| Throw ratio | 1.47 - 1.62:1 |
| Offset | 132% |
Video
| Specification | Value |
|---|---|
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| Supported video modes | 1080p |

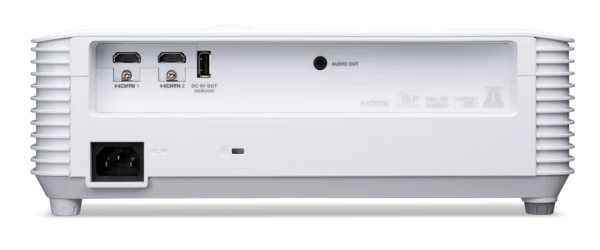

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 0 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| HDMI version | 1.4b |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 0 |
| DVI port | No |
| USB 2.0 Type-A ports quantity | 1 |
| Audio (L/R) in | 0 |
| Audio (L/R) out | 1 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Noise level (economic mode) | 27 dB |
| HDCP | Yes |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.8 kg |
| Width | 313 mm |
| Depth | 236 mm |
| Height | 113.7 mm |
| Package width | 400 mm |
| Package depth | 340 mm |
| Package height | 168 mm |
| Package weight | 3.87 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | HDMI |
