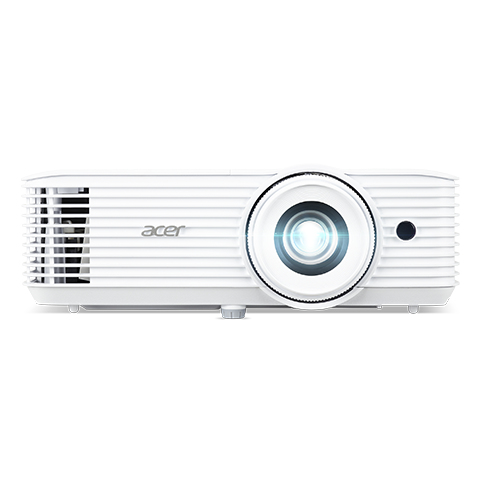

Home H6523BDP Standard throw projector 3500 ANSI lumens DLP 1080p (1920x1080) 3D White
Model H6523BDPPart no. MR.JUV11.001EAN 4710886679363
65 specifications
- Noise36 dB
- TypeStandard throw projector
- Weight2.9 kg
- ColourWhite
- Projector brightness3500 ANSI lumens
- Light source typeLamp
Overview
- Noise
- 36 dB
- Type
- Standard throw projector
- Weight
- 2.9 kg
- Colour
- White
- Projector brightness
- 3500 ANSI lumens
- Light source type
- Lamp
- Brand
- Acer
- Category
- Data Projector
- Model
- H6523BDP
- Part numbers
- MR.JUV11.001, MR.JUV11.005, MR.JUV11.002
- EAN / UPC
- 4710886679363, 4710886679356, 4710886686682
- Also known as
- Acer Home H6523BDP Standard throw projector 3500 ANSI lumens DLP 1080p (1920x1080) 3D White
Specifications
65 specifications in 16 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 3500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 16:9 |
| Smart projector | No |
| Projection distance | 1 - 9.76 m |
| Number of colours | 1.07 billion colours |
| Uniformity | 80% |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 245 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 15.59 - 17.14 mm |
| Aperture range (F-F) | 2.1 - 2.31 |
| Zoom capability | Yes |
| Throw ratio | 1.47 - 1.62 |
| Offset | 116% |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| 3D | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 1920 x 1200 (WUXGA) |
| Supported video modes | 1080p |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 0 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
| Serial interface type | RS-232 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Noise level | 36 dB |
| Noise level (economic mode) | 27 dB |
| Projection modes | Ceiling, Front, Rear |
| Country of origin | China |
| Eye protection | Yes |
| Compatible operating systems | Windows, MacOS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 290 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.9 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
| Harmonized System (HS) code | 85286200 |
