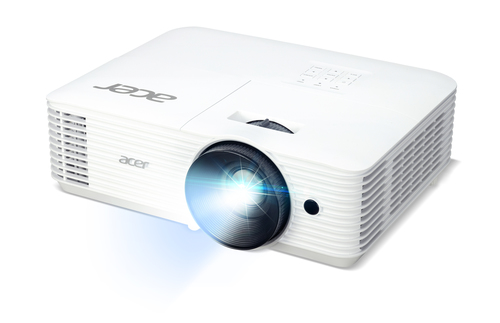

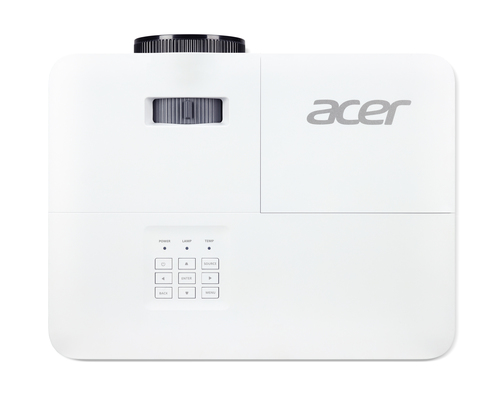

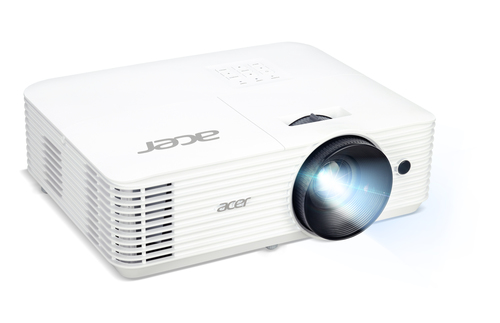

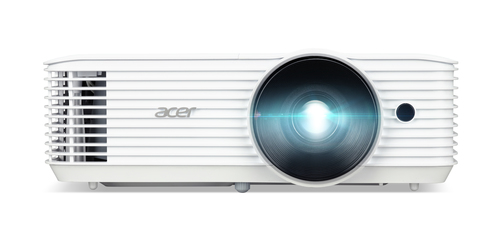

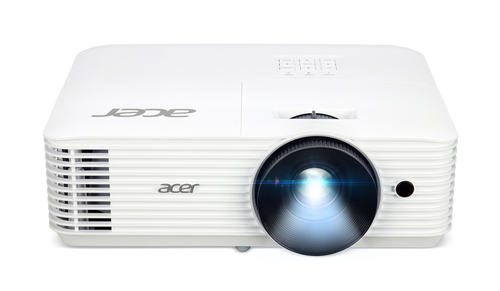

Home H5386BDKi Short throw projector 4500 ANSI lumens DLP WXGA (1280x720) 3D White
Model H5386BDKiPart no. MR.JVF11.001EAN 4711121000980
51 specifications
- TypeShort throw projector
- Weight2.75 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
- Light source typeLamp
- Focal length range21.85 - 24 mm
Overview
- Type
- Short throw projector
- Weight
- 2.75 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 21.85 - 24 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- H5386BDKi
- Part numbers
- MR.JVF11.001, MR.JVF11.002
- EAN / UPC
- 4711121000980, 4711121115073
- Also known as
- Acer Home H5386BDKi Short throw projector 4500 ANSI lumens DLP WXGA (1280x720) 3D White
Specifications
51 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1280x720) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Smart projector | No |
| Projection distance | 1 - 10 m |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 0 h |
| Lamp power | 220 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 21.85 - 24 mm |
| Zoom capability | Yes |
| Zoom ratio | 1.1:1 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | Yes |

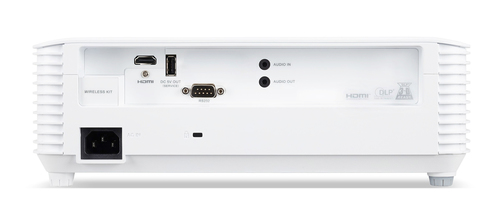

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 0 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 0 |
| Audio (L/R) in | 1 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Miracast | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Projection modes | Ceiling, Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
Design
| Specification | Value |
|---|---|
| Product type | Short throw projector |
| Market positioning | Home cinema |
| Product colour | White |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 265 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 230 V |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.75 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
