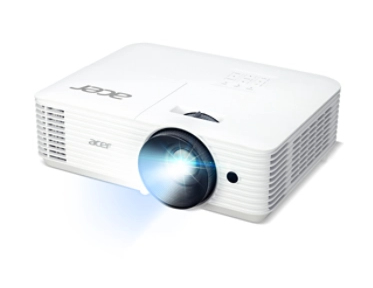

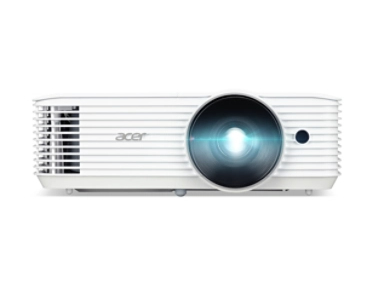

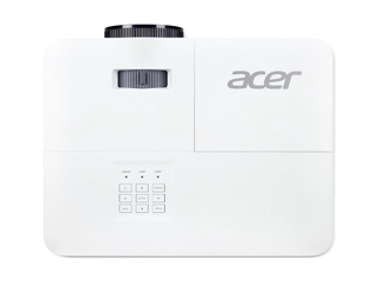

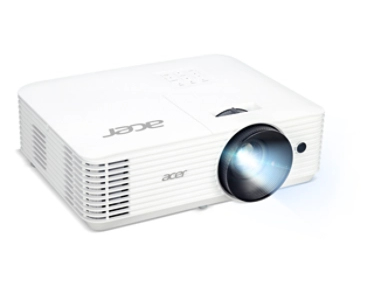

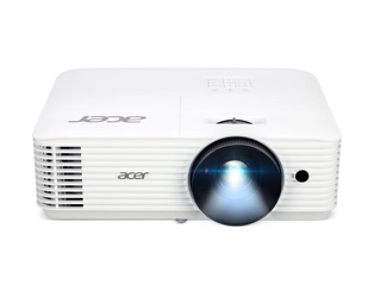

Home H5386ABDKi 4500 ANSI lumens DLP 720p (1280x720) White
Model H5386ABDKiPart no. MR.JVZ11.001
52 specifications
- Weight2.75 kg
- ColourWhite
- Projector brightness4500 ANSI lumens
- Light source typeLamp
- Focal length range12.81 - 16.74 mm
- Analog signal format systemNTSC, PAL, SECAM
Overview
- Weight
- 2.75 kg
- Colour
- White
- Projector brightness
- 4500 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 12.81 - 16.74 mm
- Analog signal format system
- NTSC, PAL, SECAM
- Brand
- Acer
- Category
- Data Projector
- Model
- H5386ABDKi
- Part number
- MR.JVZ11.001
- Also known as
- Acer Home H5386ABDKi 4500 ANSI lumens DLP 720p (1280x720) White
Specifications
52 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 4500 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 720p (1280x720) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3 |
| Screen size compatibility | 889 - 7620 mm (35 - 300") |
| Number of colours | 1.07 billion colours |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
| Keystone correction, vertical | -40 - 40° |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamp power | 220 W |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 12.81 - 16.74 mm |
| Aperture range (F-F) | 1.94 - 2.23 |
| Zoom capability | Yes |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |

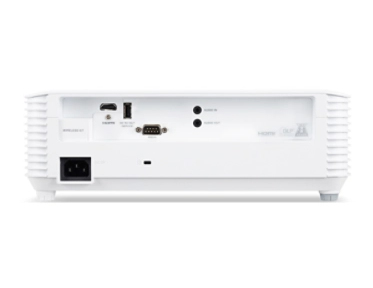

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 1 |
| HDMI ports quantity | 2 |
| HDMI connector type | Full-size |
| DVI port | No |
| S-Video inputs quantity | 0 |
| USB 2.0 ports quantity | 1 |
| PC Audio in | Yes |
| PC in (D-Sub) | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | Yes |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 3 W |
Design
| Specification | Value |
|---|---|
| Market positioning | Home cinema |
| Product colour | White |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 265 W |
| Power consumption (standby) | 0.5 W |
| AC input voltage | 120 - 230 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.75 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 113.7 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Remote control type | IR |
| Batteries included | Yes |
| Cables included | AC, VGA |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
