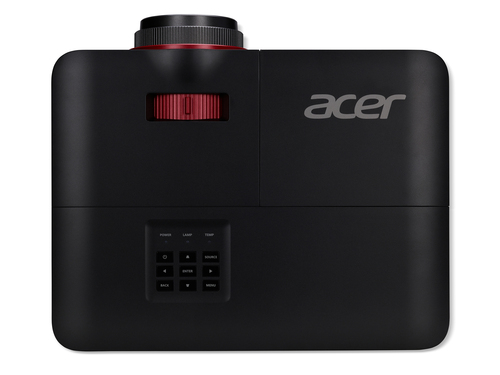

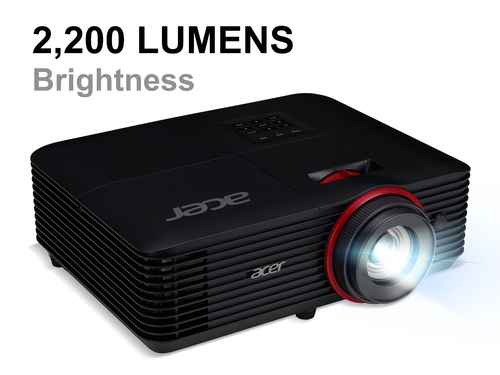

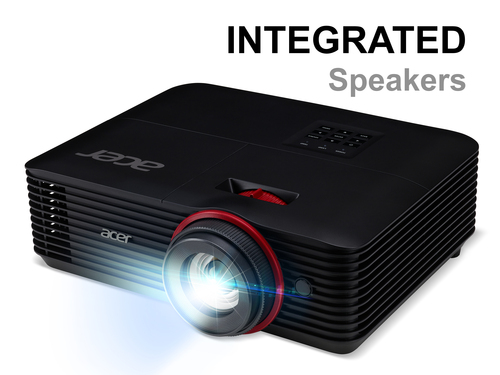

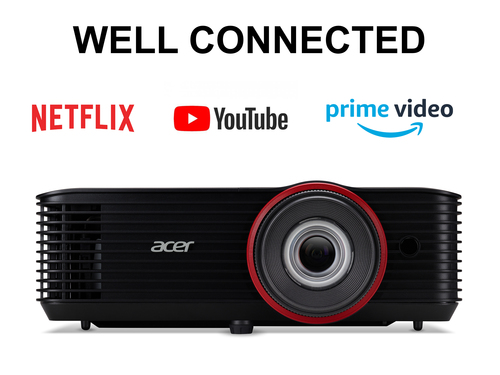

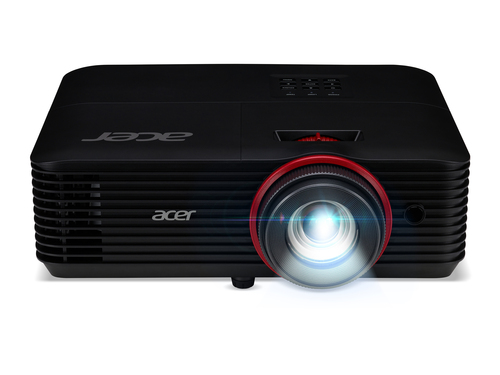

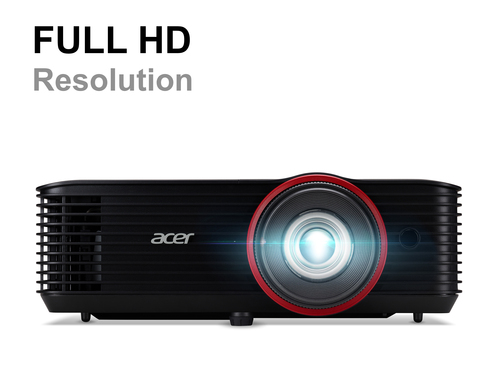

NITRO G550 gaming projector (DLP 3D, 1080p, 2200Lm)
Model G550Part no. MR.JQW11.002EAN 4713883837668
64 specifications
- TypeStandard throw projector
- Weight3.1 kg
- ColourBlack
- Projector brightness2200 ANSI lumens
- Light source typeLamp
- Focal length range12.81 - 16.74 mm
Overview
- Type
- Standard throw projector
- Weight
- 3.1 kg
- Colour
- Black
- Projector brightness
- 2200 ANSI lumens
- Light source type
- Lamp
- Focal length range
- 12.81 - 16.74 mm
- Brand
- Acer
- Category
- Data Projector
- Model
- G550
- Part number
- MR.JQW11.002
- EAN / UPC
- 4713883837668
- Also known as
- Acer NITRO G550 gaming projector (DLP 3D, 1080p, 2200Lm)
Specifications
64 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 2200 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | 1080p (1920x1080) |
| Contrast ratio (typical) | 10000:1 |
| Native aspect ratio | 16:9 |
| Supported aspect ratios | 4:3, 16:9 |
| Screen size compatibility | 711.2 - 7620 mm (28 - 300") |
| Projection distance | 1 - 8.04 m |
| Number of colours | 1.073 billion colours |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, vertical | -40 - 40° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Service life of light source | 3500 h |
| Service life of light source (economic mode) | 10000 h |
| Lamp type | OSRAM |
| Lamp power | 250 W |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focal length range | 12.81 - 16.74 mm |
| Aperture range (F-F) | 1.94 - 2.23 |
| Zoom capability | Yes |
| Throw ratio | 1.21 - 1.59 |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | Yes |
| Supported graphics resolutions | 1920 x 1080 (HD 1080), 3840 x 2160 |
Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 3 |
| HDMI ports quantity | 1 |
| HDMI version | 2.0 |
| Composite video in | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 2 |
| Audio (L/R) out | 1 |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Wi-Fi | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Ceiling, Front, Rear |
| Country of origin | China |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
| Number of built-in speakers | 1 |
| RMS rated power | 10 W |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Market positioning | Gaming |
| Product colour | Black |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 300 W |
| Power consumption (economy mode) | 210 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
| Operating relative humidity (H-H) | 0 - 80% |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 3.1 kg |
| Width | 313 mm |
| Depth | 240 mm |
| Height | 110.7 mm |
| Package width | 400 mm |
| Package depth | 340 mm |
| Package height | 168 mm |
| Package weight | 3.81 kg |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85286200 |
