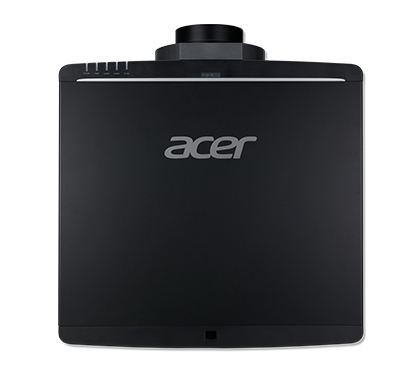

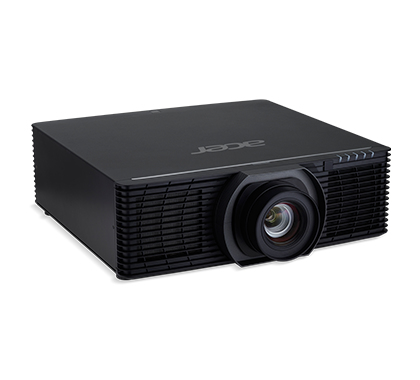

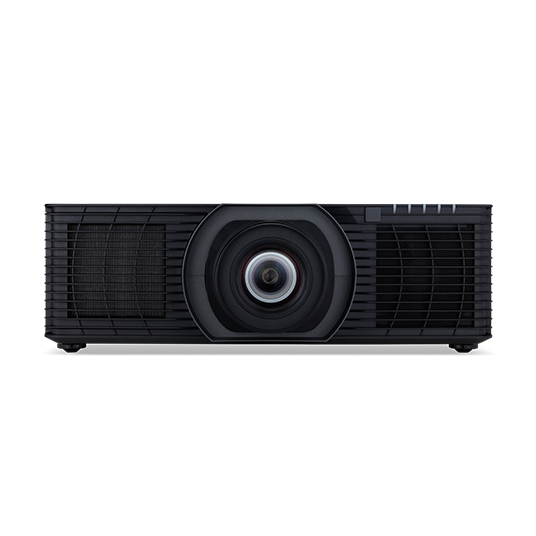

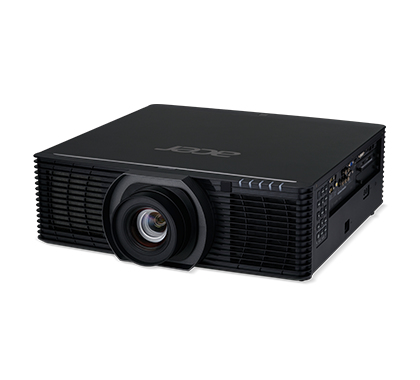

Large Venue FL8630 Ceiling-mounted projector 12000 ANSI lumens DLP WUXGA (1920x1200) Black
Model FL8630Part no. MR.JS811.001EAN 4710180695625
52 specifications
- TypeCeiling-mounted projector
- Weight5 kg
- ColourBlack
- Projector brightness12000 ANSI lumens
- Light source typeLaser
- Analog signal format systemNTSC, PAL, SECAM
Overview
- Type
- Ceiling-mounted projector
- Weight
- 5 kg
- Colour
- Black
- Projector brightness
- 12000 ANSI lumens
- Light source type
- Laser
- Analog signal format system
- NTSC, PAL, SECAM
- Brand
- Acer
- Category
- Data Projector
- Model
- FL8630
- Part number
- MR.JS811.001
- EAN / UPC
- 4710180695625
- Also known as
- Acer Large Venue FL8630 Ceiling-mounted projector 12000 ANSI lumens DLP WUXGA (1920x1200) Black
Specifications
52 specifications in 15 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 12000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WUXGA (1920x1200) |
| Contrast ratio (typical) | 2000000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Number of colours | 1.073 billion colours |
| Horizontal scan range | 15 - 100 kHz |
| Vertical scan range | 24 - 120 Hz |
Light source
| Specification | Value |
|---|---|
| Light source type | Laser |
| Service life of light source | 20000 h |
| Lamps quantity | 1 lamp(s) |
Video
| Specification | Value |
|---|---|
| Analog signal format system | NTSC, PAL, SECAM |
| Full HD | No |
| 3D | No |

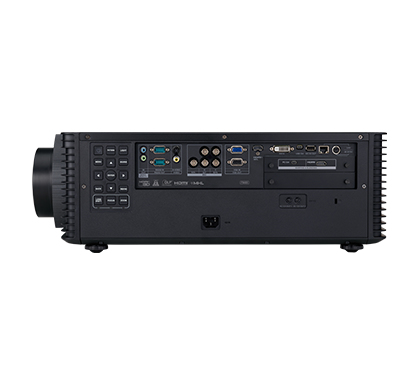

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| DVI port | Yes |
| S-Video inputs quantity | 1 |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 0 |
| Serial interface type | RJ-45 |
| Mobile High-Definition Link (MHL) | No |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Interactive | No |
| Projection modes | Ceiling, Front, Rear |
| Compatible operating systems | Windows, MacOS |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | No |
Design
| Specification | Value |
|---|---|
| Product type | Ceiling-mounted projector |
| Market positioning | Presentation |
| Product colour | Black |
| Placement | Ceiling |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 1320 W |
| AC input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 40 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 5 kg |
| Width | 548 mm |
| Depth | 536 mm |
| Height | 189 mm |
Packaging content
| Specification | Value |
|---|---|
| Remote control included | Yes |
| Batteries included | Yes |
| Cables included | AC, Composite |
| Manual | Yes |
Logistics data
| Specification | Value |
|---|---|
| Quantity per pack | 1 pc(s) |
