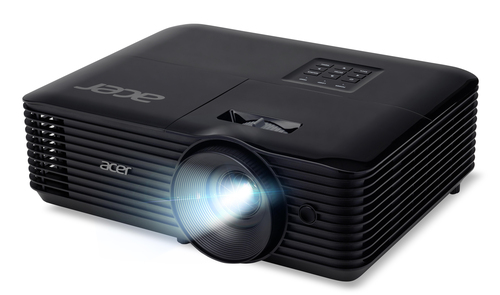

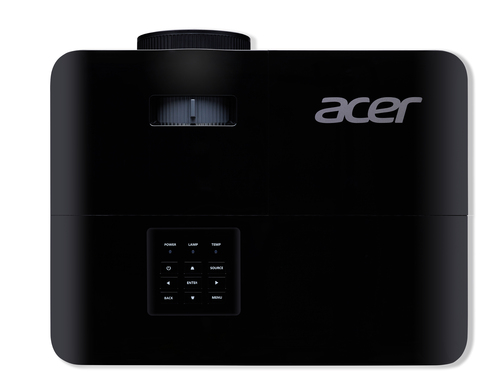

BS-314 Standard throw projector 5000 ANSI lumens DLP WXGA (1200x800) Black
Model BS-314Part no. MR.JTJ11.00QEAN 4711121790218
49 specifications
- TypeStandard throw projector
- Weight2.7 kg
- ColourBlack
- Projector brightness5000 ANSI lumens
- Light source typeLamp
- FocusManual
Overview
- Type
- Standard throw projector
- Weight
- 2.7 kg
- Colour
- Black
- Projector brightness
- 5000 ANSI lumens
- Light source type
- Lamp
- Focus
- Manual
- Brand
- Acer
- Category
- Data Projector
- Model
- BS-314
- Part number
- MR.JTJ11.00Q
- EAN / UPC
- 4711121790218
- Also known as
- Acer BS-314 Standard throw projector 5000 ANSI lumens DLP WXGA (1200x800) Black
Specifications
49 specifications in 14 groups
Projector
| Specification | Value |
|---|---|
| Projector brightness | 5000 ANSI lumens |
| Projection technology | DLP |
| Projector native resolution | WXGA (1200x800) |
| Contrast ratio (typical) | 20000:1 |
| Native aspect ratio | 16:10 |
| Supported aspect ratios | 4:3, 16:10, 16:9 |
| Projection distance (wide) | 1.54 - 1.72 m |
| Number of colours | 1.07 billion colours |
| Projector brightness (economic mode) | 4000 ANSI lumens |
| Projector brightness (portrait mode) | 5000 ANSI lumens |
| Horizontal synchronization (max) | 100 kHz |
| Horizontal synchronization (min) | 15 kHz |
| Keystone correction, vertical | +/- 40° |
| Vertical synchronization (max) | 0.12 kHz |
| Vertical synchronization (min) | 0.024 kHz |
Light source
| Specification | Value |
|---|---|
| Light source type | Lamp |
| Lamps quantity | 1 lamp(s) |
Lens system
| Specification | Value |
|---|---|
| Focus | Manual |
| Focal length range | 21.85 - 24.00 mm |
| Aperture range (F-F) | 2.41 - 2.53 |
| Zoom capability | Yes |
| Zoom type | Manual |
| Zoom ratio | 1.1:1 |
Video
| Specification | Value |
|---|---|
| Full HD | No |

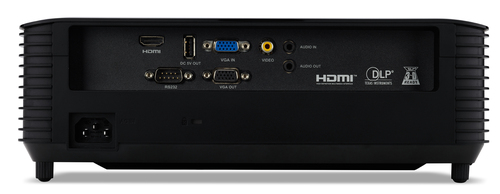

Ports & interfaces
| Specification | Value |
|---|---|
| VGA (D-Sub) ports quantity | 2 |
| HDMI ports quantity | 1 |
| HDMI connector type | Full-size |
| HDMI version | 1.4a |
| Component video (YPbPr/YCbCr) in | 1 |
| DVI port | No |
| USB 2.0 ports quantity | 1 |
| Audio (L/R) in | 1 |
| Serial interface type | RS-232 |
| AC (power) in | Yes |
Network
| Specification | Value |
|---|---|
| Smart TV | No |
| Ethernet LAN | No |
| Wi-Fi | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Features
| Specification | Value |
|---|---|
| Projection modes | Front, Rear |
Multimedia
| Specification | Value |
|---|---|
| Built-in speaker(s) | Yes |
Design
| Specification | Value |
|---|---|
| Product type | Standard throw projector |
| Product colour | Black |
Display
| Specification | Value |
|---|---|
| Built-in display | No |
Power
| Specification | Value |
|---|---|
| Power source | AC |
| Power consumption (typical) | 275 W |
| Power consumption (standby) | 0.5 W |
| Power consumption (economy mode) | 205 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Weight | 2.7 kg |
Packaging content
| Specification | Value |
|---|---|
| Carrying case | Yes |
