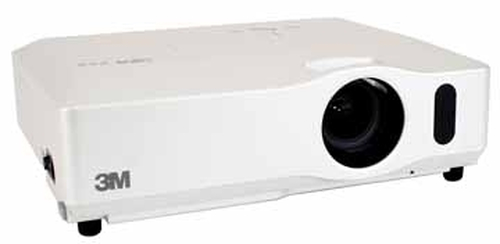

3M X90 4000 ANSI lumens LCD XGA (1024x768)

3M X90 4000 ANSI lumens LCD XGA (1024x768)

Model X90Part no. 78923669234

52 specifications
  • ConnectivityWired
  • Noise39 dB
  • Weight7.1 kg
  • Projector brightness4000 ANSI lumens
  • Light source typeLamp
  • Focal length range24 - 29 mm
See all specifications

Overview

Connectivity
Wired
Noise
39 dB
Weight
7.1 kg
Projector brightness
4000 ANSI lumens
Light source type
Lamp
Focal length range
24 - 29 mm
Brand
3M
Model
X90
Part numbers
78923669234, 59301, FF000X90
Also known as
3M X90 4000 ANSI lumens LCD XGA (1024x768)

Specifications

52 specifications in 15 groups

Projector

Projector brightness4000 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)1000:1
Screen size compatibility762 - 8890 mm (30 - 350")
Horizontal scan range31.5 - 106 kHz
Vertical scan range56 - 120 Hz
Keystone correction, horizontal±20°
Keystone correction, vertical±40°
Matrix size2.03 cm (0.8")

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)3000 h
Lamp typeUHB
Lamp power285 W

Lens system

Focal length range24 - 29 mm
Zoom ratio1.2:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, SECAM
Full HDNo
HD-ReadyYes

Ports & interfaces

VGA (D-Sub) ports quantity3
Component video (YPbPr/YCbCr) in1
Composite video in1
S-Video inputs quantity1
Audio (L/R) in2
Headphone outputs1
Microphone inYes
Serial interface typeRS-232
PC Audio inYes

Network

Ethernet LAN (RJ-45) ports1

Features

Noise level39 dB
Plug and PlayYes
Noise reductionYes
CertificationUL, cUL, FCC Part 15 Class B, CE, EN60950

Multimedia

Number of built-in speakers4
RMS rated power16 W

Design

Market positioningPresentation

Display

Display number of colours16.78 million colours

Power

Power consumption (typical)460 W

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)20 - 60 °C

Weight & dimensions

Weight7.1 kg

Packaging content

Remote control includedYes

Other features

Aspect ratio4:3, 16:9
Connectivity technologyWired
Dimensions (WxDxH)418 x 319 x 139 mm
InterfaceUSB
Networking featuresFast Ethernet
Power supply type100-120V/220-240V, 50/60Hz
RS-232 ports1
Resolution783336
I/O portsPC 3 x Analog RGB (2 in, 1 out) 1 x Digital RGB (1 in = M1-D) 1 x USB Mouse (M1-D) 1 x Serial Control 1 x Network Port 1 x SD Card 1 x USB - USB Memory Stick Video 1 x Composite 1 x S-Video 1 x Component 2 x Video/Audio Audio in/out 2 x RCA Audio Ins (Red RCA/White RCA) 2 x Mini Stereo Jack Ins 1 x
