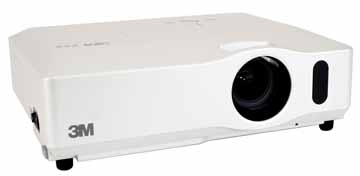

3M Digital Projector X66

3M Digital Projector X66

Model Digital Projector X66Part no. X66EAN 051125631563

41 specifications
  • ConnectivityWired
  • Noise36 dB
  • Weight3.5 kg
  • Projector brightness3000 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Connectivity
Wired
Noise
36 dB
Weight
3.5 kg
Projector brightness
3000 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
3M
Model
Digital Projector X66
Part numbers
X66, 78-9236-6925-9
EAN / UPC
051125631563
Also known as
3M Digital Projector X66 3000 ANSI lumens LCD XGA (1024x768)

Specifications

41 specifications in 11 groups

Projector

Projector brightness3000 ANSI lumens
Projection technologyLCD
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)400:1
Screen size compatibility350
Number of colours16.78 million colours
Horizontal scan range31.5 - 106 kHz
Vertical scan range56 - 120 Hz
Keystone correction, vertical-30 - 30°

Light source

Light source typeLamp
Service life of light source2000 h
Service life of light source (economic mode)3000 h
Lamp typeUHB
Lamp power220 W

Lens system

FocusManual
Focal length range19 - 23 mm
Zoom ratio1.2:1

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, SECAM

Ports & interfaces

VGA (D-Sub) ports quantity3
Component video (YPbPr/YCbCr) in1
Composite video in1
S-Video inputs quantity1
USB 2.0 ports quantity1
Audio (L/R) in1
Serial interface typeRS-232

Features

Noise level36 dB
Plug and PlayYes
CertificationUL, cUL, FCC Part 15 Subpart B Class B, EN60950-1, CE

Multimedia

Number of built-in speakers1
RMS rated power6 W

Power

Power consumption (typical)320 W

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight3.5 kg

Other features

Aspect ratio4:3, 16:9
Audio input3
Audio output1
Connectivity technologyWired
Dimensions (WxDxH)340 x 270 x 100 mm
Power requirements100 - 120 V, 220 - 240 V, 50/60 Hz
RS-232 ports1
