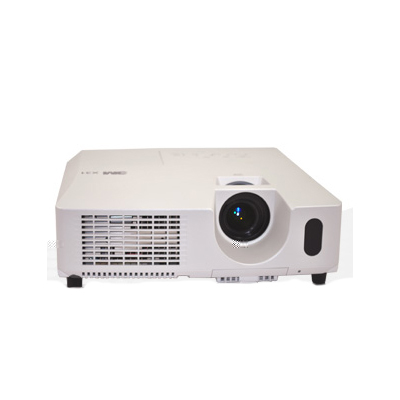

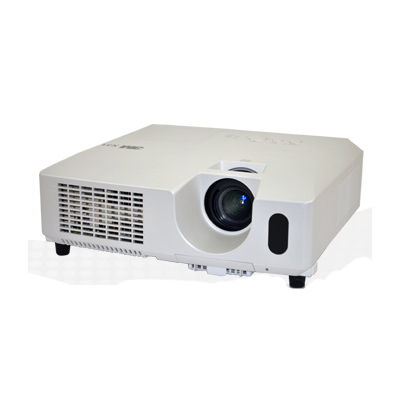

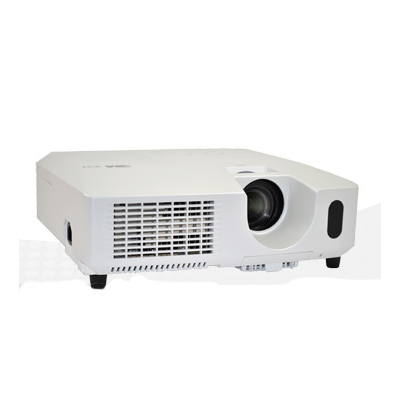

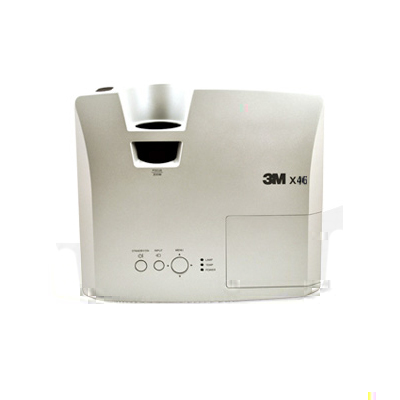

3M Digital Projector X46

3M Digital Projector X46

Model Digital Projector X46Part no. FF000X46

51 specifications
  • ConnectivityUSB A, USB B
  • Noise37 dB
  • Weight3.6 kg
  • Projector brightness4000 ANSI lumens
  • Light source typeLamp
  • FocusManual
See all specifications

Overview

Connectivity
USB A, USB B
Noise
37 dB
Weight
3.6 kg
Projector brightness
4000 ANSI lumens
Light source type
Lamp
Focus
Manual
Brand
3M
Model
Digital Projector X46
Part number
FF000X46
Also known as
3M Digital Projector X46 4000 ANSI lumens XGA (1024x768)

Specifications

51 specifications in 13 groups

Projector

Projector brightness4000 ANSI lumens
Projector native resolutionXGA (1024x768)
Contrast ratio (typical)2000:1
Screen size compatibility762 - 7620 mm (30 - 300")
Projection distance0.9 - 9 m
Number of colours16.78 million colours
Horizontal scan range31.5 - 106 kHz
Vertical scan range56 - 120 Hz

Light source

Light source typeLamp
Service life of light source3000 h
Service life of light source (economic mode)6000 h
Lamp typeUHB
Lamp power210 W

Lens system

FocusManual
Zoom capabilityYes
Zoom ratio1.2:1
Magnification4x

Video

Analog signal format systemNTSC, NTSC 4.43, PAL, SECAM
HD-ReadyYes

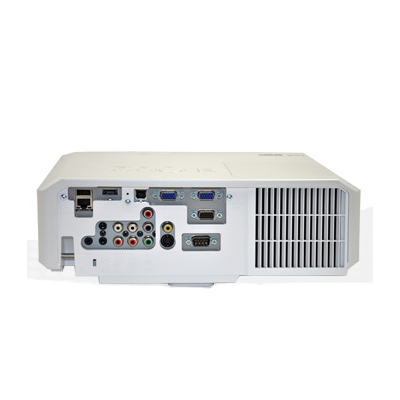

Ports & interfaces

VGA (D-Sub) ports quantity3
HDMI ports quantity1
Component video (YPbPr/YCbCr) in3
Composite video in1
DVI portNo
S-Video inputs quantity1
USB 2.0 ports quantity2
Audio (L/R) in3
Audio (L/R) out2
Microphone inYes
Serial interface typeRS-232
PC Audio inYes

Network

Ethernet LANYes
Ethernet LAN (RJ-45) ports1
Wi-FiNo

Features

Noise level37 dB
CertificationUL, cUL, FCC Part 15 Subpart B, Class B, EN60950-1, CE

Multimedia

RMS rated power16 W

Power

Power consumption (typical)330 W
Power consumption (standby)1 W

Operational conditions

Operating temperature (T-T)5 - 35 °C
Storage temperature (T-T)-20 - 60 °C

Weight & dimensions

Weight3.6 kg

Packaging content

Remote control includedYes

Other features

Aspect ratio4:3, 14:9, 16:9
Dimensions (WxDxH)317 x 98 x 28 mm
InterfaceUSB A, USB B
Power requirementsAC 110~120V /220~240V (50/60 Hz)
RS-232 ports1
Resolution1600 x 1200 pixels
Video inHDMI
Digital keystone correction±30°
