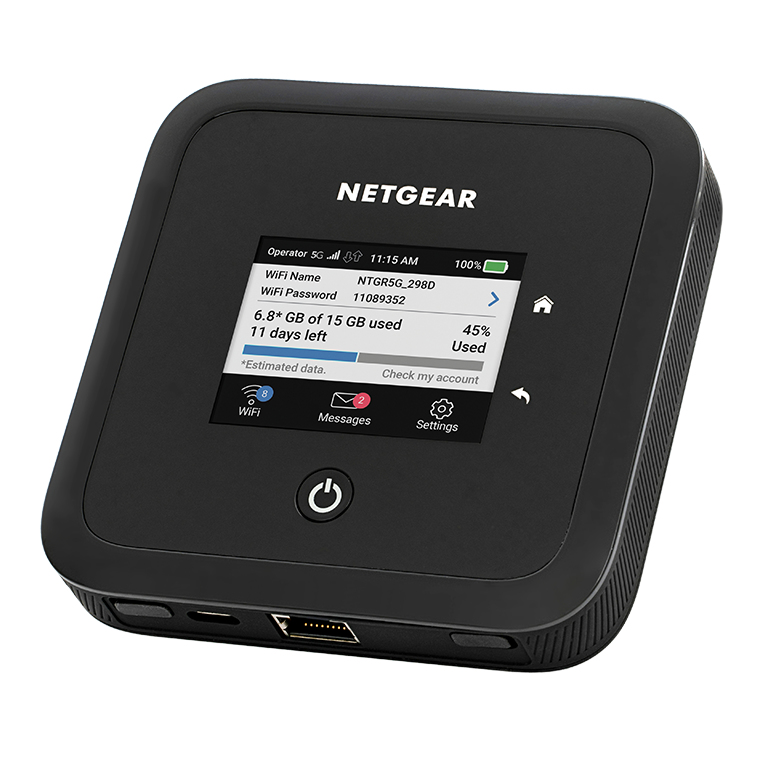

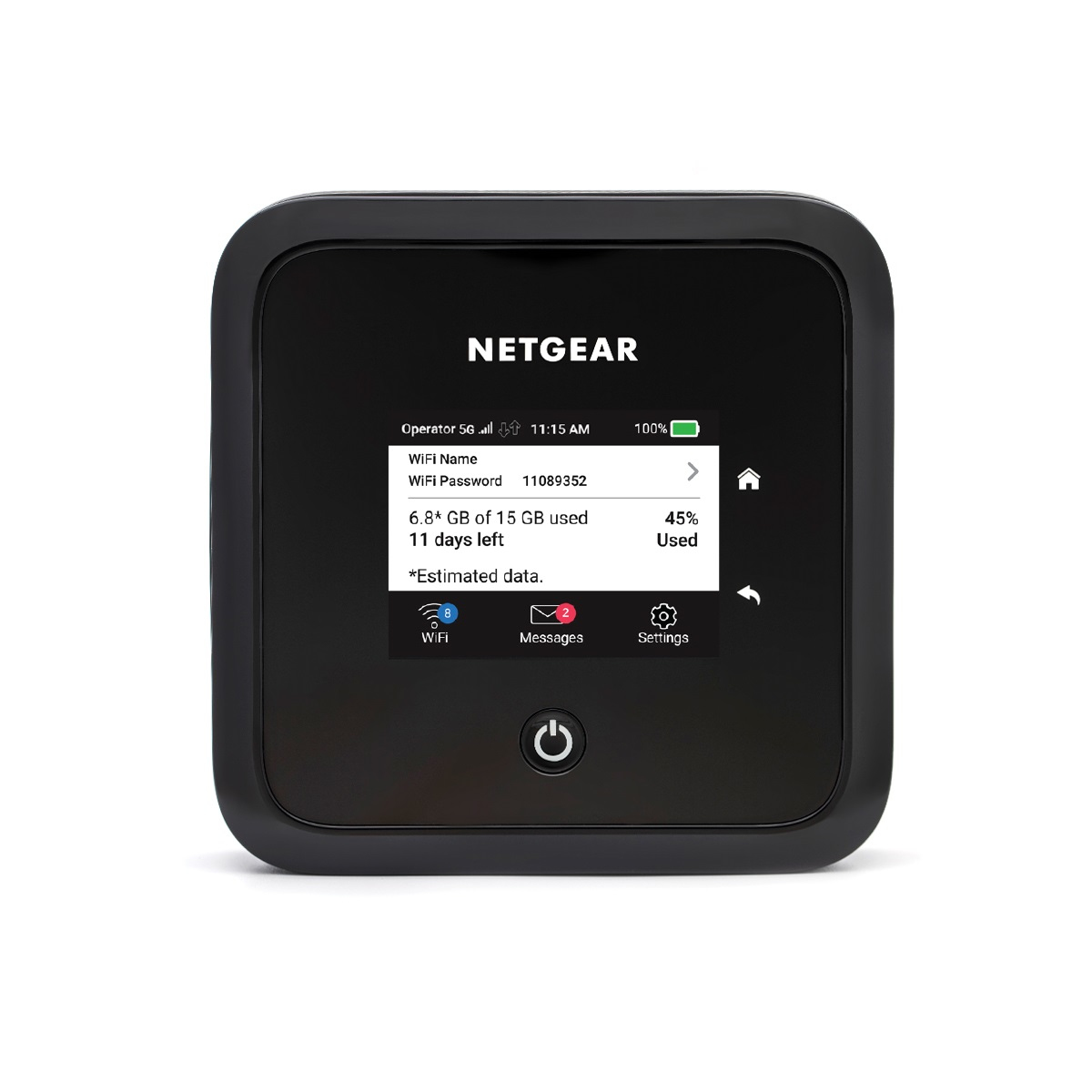

Nighthawk M5 5G WiFi 6 Mobile Router (MR5200)
Model Nighthawk M5 5G WiFi 6 Mobile Router (MR5200)Part no. MR5200-100EUS
37 specifications
- ProcessorSDX55
- Battery5040 mAh
- Weight240 g
- ColourBlack
- Device typeCellular network router
- Ethernet LANYes
Overview
- Processor
- SDX55
- Battery
- 5040 mAh
- Weight
- 240 g
- Colour
- Black
- Device type
- Cellular network router
- Ethernet LAN
- Yes
- Brand
- NETGEAR
- Category
- Cellular Network Device
- Model
- Nighthawk M5 5G WiFi 6 Mobile Router (MR5200)
- Part number
- MR5200-100EUS
- Also known as
- NETGEAR Nighthawk M5 5G WiFi 6 Mobile Router (MR5200) Cellular network router
Specifications
37 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network router |
| Product colour | Black |
| Market positioning | Portable |
| Suitable for indoor use | Yes |
| Suitable for outdoor use | Yes |
| Built-in display | Yes |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Supported network protocols | IPv6 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 600,1200 Mbit/s |
Mobile network
| Specification | Value |
|---|---|
| Data network | 3G, 4G, 5G, LTE |
| 4G standard | LTE-TDD & LTE-FDD |
| 3G bands supported | 850,900,1900,2100 MHz |
| 4G bands supported | 700,900,1800,2100,2600 MHz |
| SIM card type | NanoSIM |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port type | USB Type-C |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA, WPA2, WPA3 |
| URL filtering | Yes |
| Port forwarding | Yes |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 5040 mAh |
Packaging content
| Specification | Value |
|---|---|
| Cables included | USB Type-C |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Processor manufacturer | Qualcomm |
| Processor model | SDX55 |
| Antenna type | Internal & external |
| Antenna connector type | TS9 |
| Detachable antenna(s) | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 105 mm |
| Depth | 105 mm |
| Height | 21.5 mm |
| Weight | 240 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
