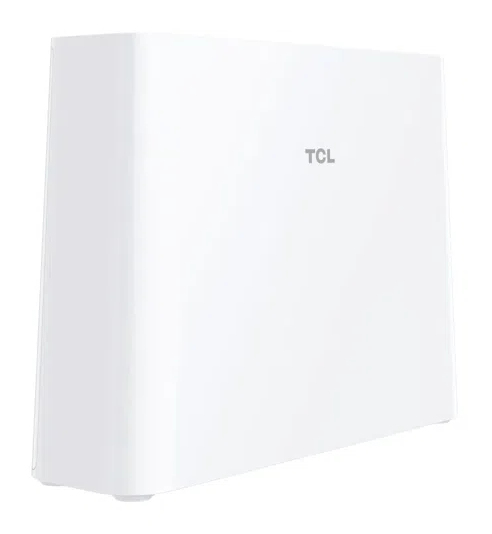

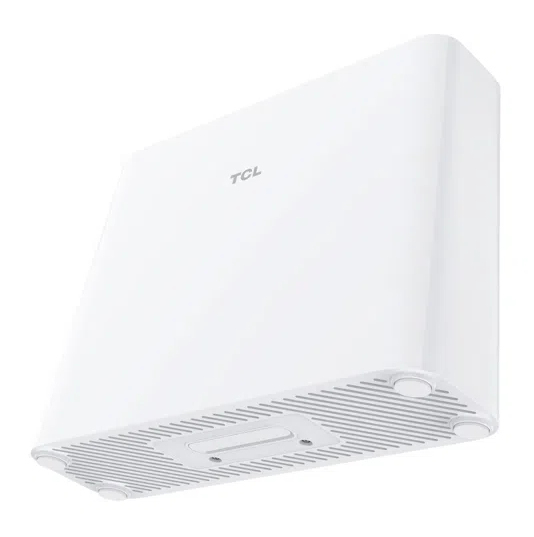

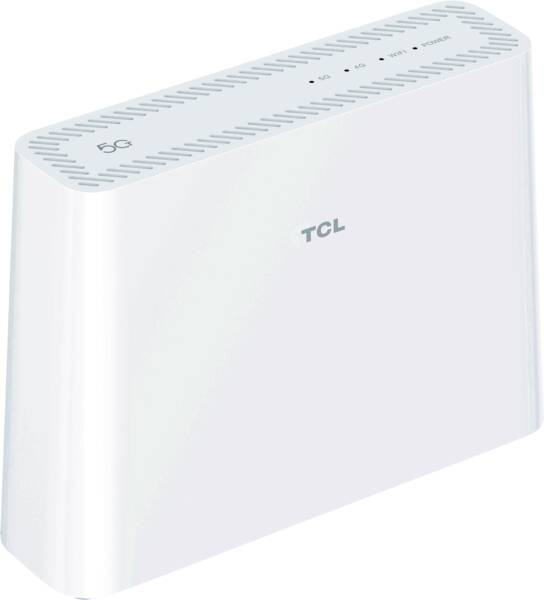

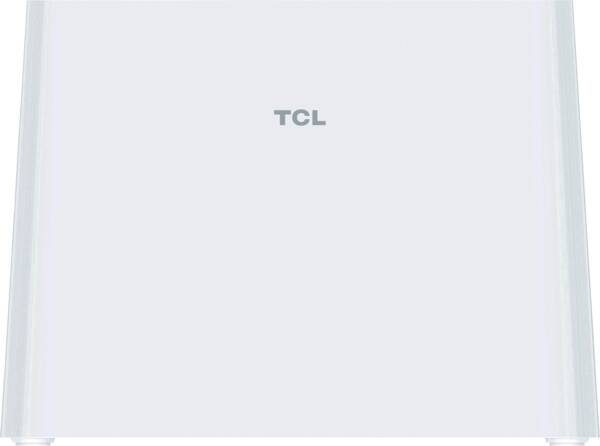

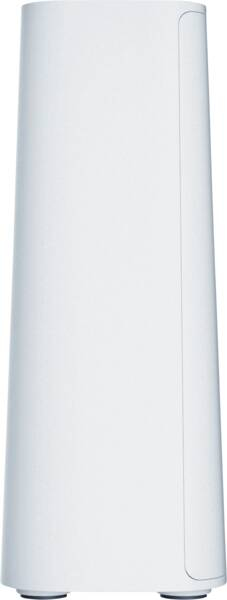

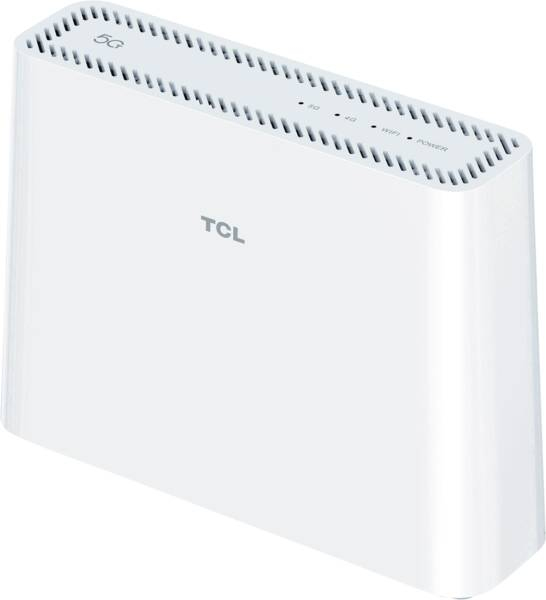

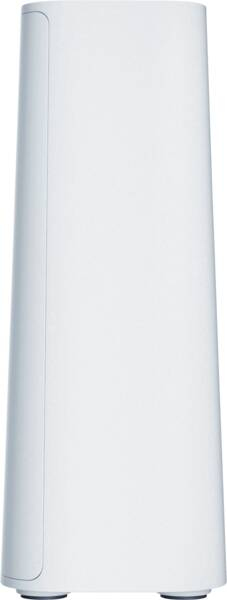

LINKHUB HH515L
Model LINKHUB HH515LPart no. HH515LMEAN 4894461788814
57 specifications
- Storage4 GB
- Weight465 g
- ColourWhite
- Device typeCellular network router
- Ethernet LANYes
- Data networkLTE, 4G, 5G
Overview
- Storage
- 4 GB
- Weight
- 465 g
- Colour
- White
- Device type
- Cellular network router
- Ethernet LAN
- Yes
- Data network
- LTE, 4G, 5G
- Brand
- TCL
- Category
- Cellular Network Device
- Model
- LINKHUB HH515L
- Part number
- HH515LM
- EAN / UPC
- 4894461788814
- Also known as
- TCL LINKHUB HH515L Cellular network router
Specifications
57 specifications in 12 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network router |
| Product colour | White |
| Suitable for indoor use | Yes |
| Reset button | Yes |
| LED indicators | Wi-Fi, Power, Network |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| DHCP client | Yes |
| DHCP server | Yes |
| Dynamic DNS (DDNS) | Yes |
| MAC address filtering | Yes |
| Network bridge | Yes |
| Universal Plug and Play (UPnP) | Yes |
| Guest access | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11a, 802.11b, 802.11g, Wi-Fi 4 (802.11n), Wi-Fi 5 (802.11ac), Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 3000 Mbit/s |
| Wi-Fi band | Dual-band (2.4 GHz / 5 GHz) |
| Wi-Fi Protected Setup (WPS) | Yes |
| Number of WLAN connections (max) | 128 |
Mobile network
| Specification | Value |
|---|---|
| Data network | LTE, 4G, 5G |
| 4G standard | LTE-TDD & LTE-FDD |
| 5G standard | Sub6 NSA, Sub6 SA, NR |
| Number of SIM cards | 2 |
| SIM card type | NanoSIM + eSIM |
| Voice over LTE (VoLTE) supported | Yes |

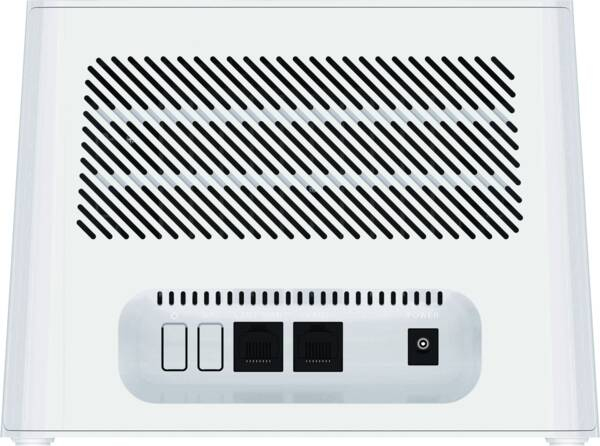

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 2 |
| RJ-11 ports quantity | 0 |
| USB port type | Micro-USB |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| IP address filtering | Yes |
| DMZ support | Yes |
| Port forwarding | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS, REACH, WEEE |
| Waste Electrical and Electronic Equipment (WEEE) compliance | Yes |
| Certification | Wi-Fi Alliance |
Packaging content
| Specification | Value |
|---|---|
| AC adapter included | Yes |
| Quick start guide | Yes |
| Packaging content | PSI |
Performance
| Specification | Value |
|---|---|
| Internal storage capacity | 4 GB |
| Web-based management | Yes |
| Management protocols | TR-069 |
| Antenna type | Internal |
| Parental control | Yes |
| Antenna gain level (max) | 10 dBi |
| Mobile app support | Yes |
Power
| Specification | Value |
|---|---|
| Power source type | DC, AC |
| Output voltage | 12 V |
| Power consumption (typical) | 18 W |
| External power adapter | Yes |
| Input voltage | 100 - 240 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating temperature (T-T) | 0 - 45 °C |
| Storage temperature (T-T) | -10 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 185 mm |
| Depth | 53.3 mm |
| Height | 135 mm |
| Weight | 465 g |
