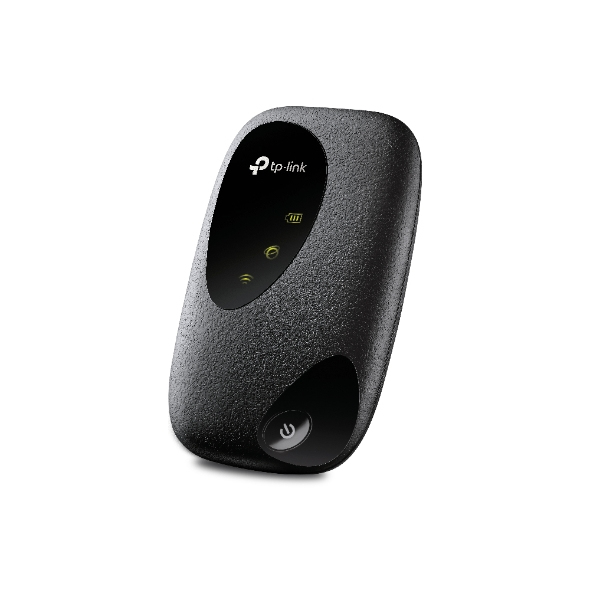

4G LTE Mobile Wi-Fi
Model M7010EAN 4897098682500
44 specifications
- Battery2000 mAh
- ColourBlack
- Device typeCellular network router
- Ethernet LANNo
- Wi-FiYes
- Data network3G, 4G, LTE
Overview
- Battery
- 2000 mAh
- Colour
- Black
- Device type
- Cellular network router
- Ethernet LAN
- No
- Wi-Fi
- Yes
- Data network
- 3G, 4G, LTE
- Brand
- TP-Link
- Category
- Cellular Network Device
- Model
- M7010
- Part number
- M7010
- EAN / UPC
- 4897098682500, 4897098683378
- Also known as
- TP-Link 4G LTE Mobile Wi-Fi
Specifications
44 specifications in 15 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network router |
| Product colour | Black |
| Reset button | Yes |
| LED indicators | Power, WLAN |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Networking standards | IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| DHCP client | Yes |
| DHCP server | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
Mobile network
| Specification | Value |
|---|---|
| Data network | 3G, 4G, LTE |
| 3G standards | HSPA, HSPA+, UMTS |
| 4G standard | LTE-FDD |
| 3G bands supported | 850,900,2100 MHz |
| 4G bands supported | 800,850,900,1800,2100,2300,2500,2600 MHz |
| UMTS bands supported | 850,900,2100 MHz |
| SIM card type | MicroSIM |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | Micro-USB |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSID, WPA-PSK, WPA2-PSK |
Battery
| Specification | Value |
|---|---|
| Battery capacity | 2000 mAh |
Packaging content
| Specification | Value |
|---|---|
| Cables included | Micro-USB |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
| Certification | CE, RoHS |
Sustainability
| Specification | Value |
|---|---|
| Sustainability compliance | Yes |
Performance
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Mac operating systems supported | Yes |
| Windows operating systems supported | Windows 10, Windows 7, Windows 8, Windows Vista, Windows XP |
| Mobile operating systems supported | Android, Windows Phone, iOS |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Output voltage | 5 V |
| Output current | 1 A |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 35 °C |
| Storage relative humidity (H-H) | 5 - 90% |
| Storage temperature (T-T) | -20 - 60 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 94 mm |
| Depth | 56.7 mm |
| Height | 19.8 mm |
Packaging data
| Specification | Value |
|---|---|
| Package width | 135 mm |
| Package depth | 95 mm |
| Package height | 50 mm |
| Package weight | 197 g |
