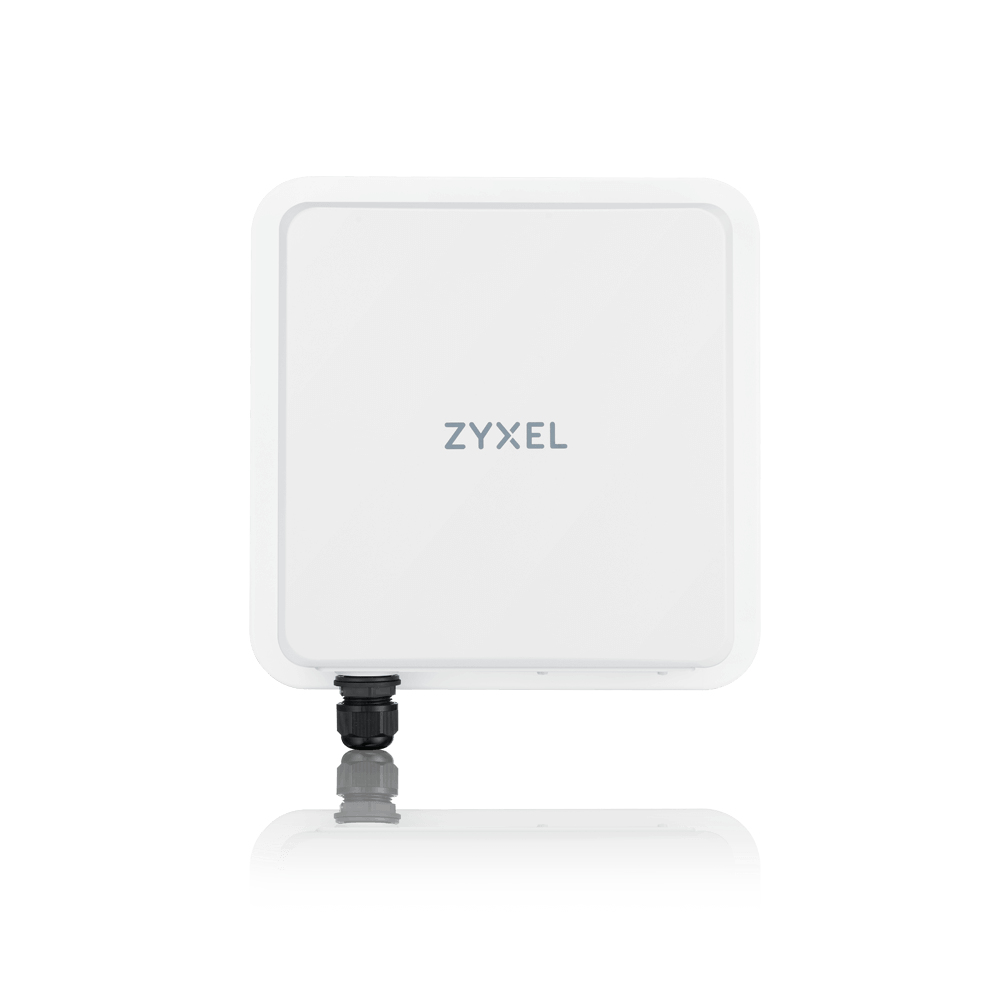

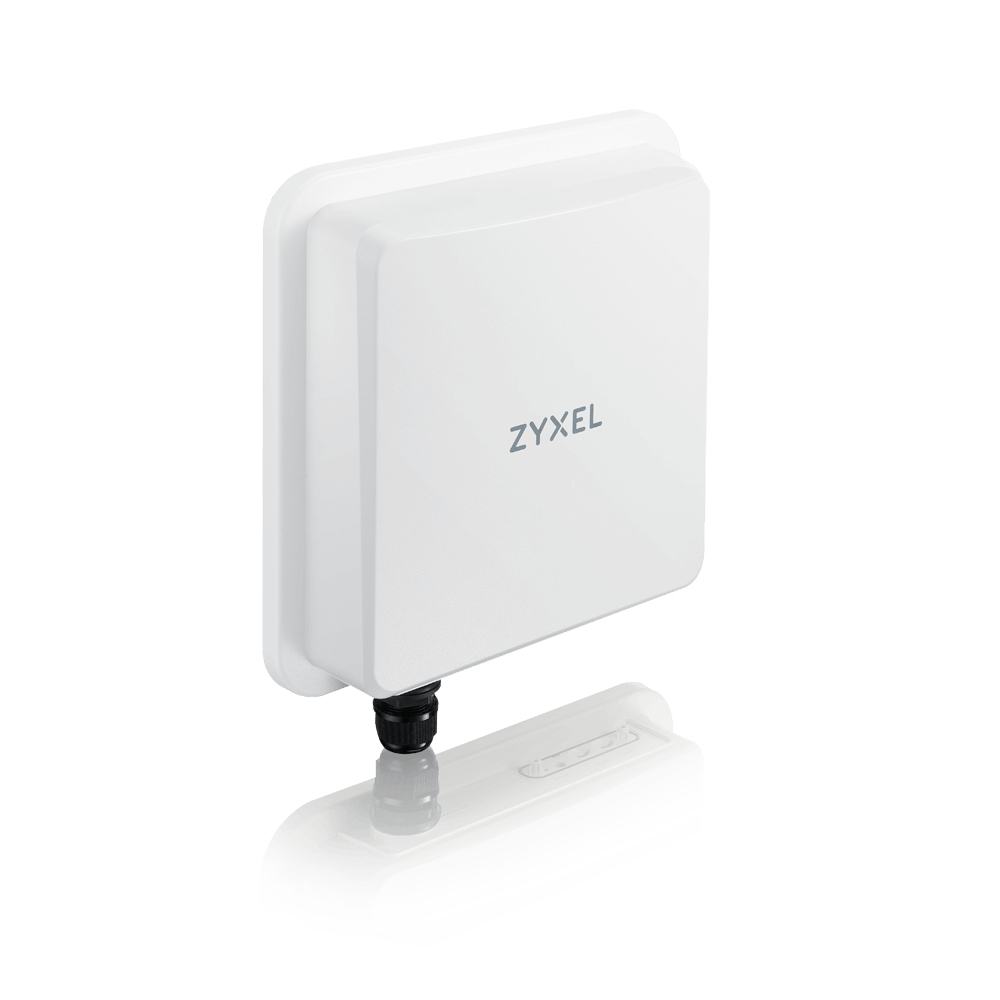

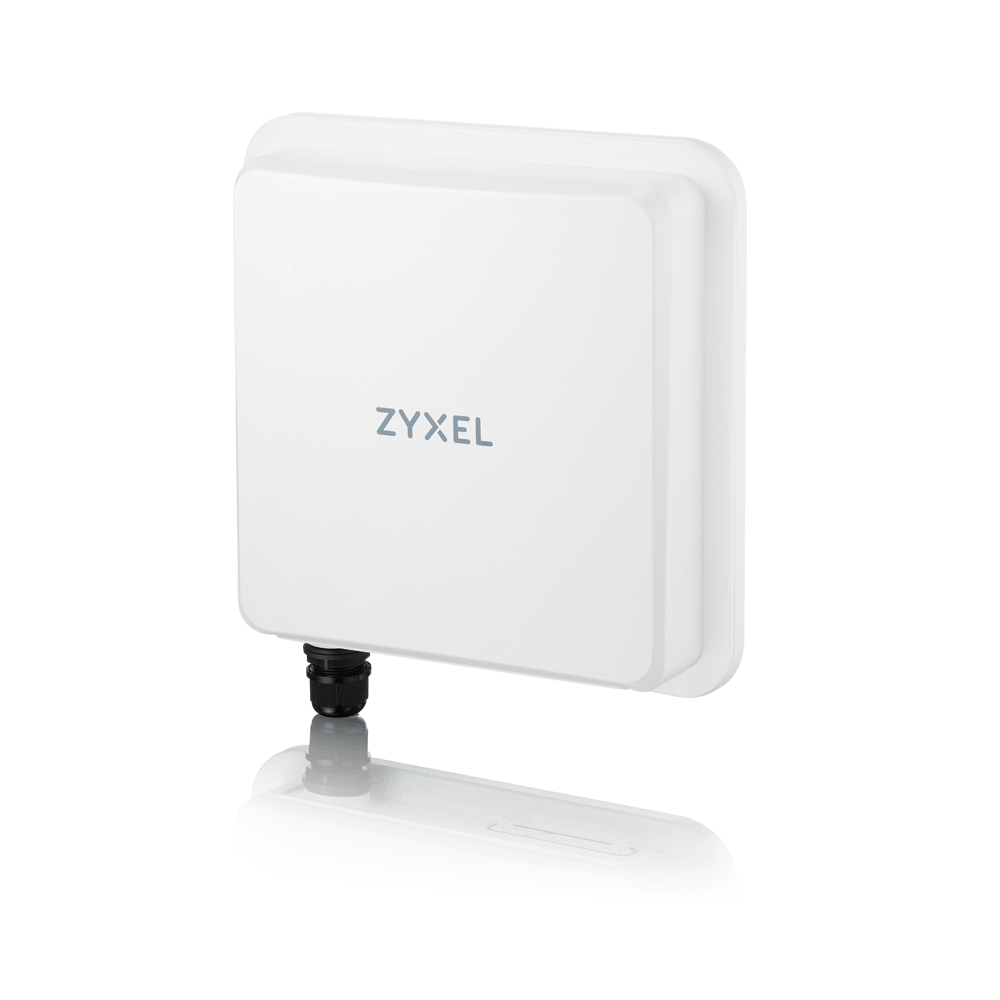

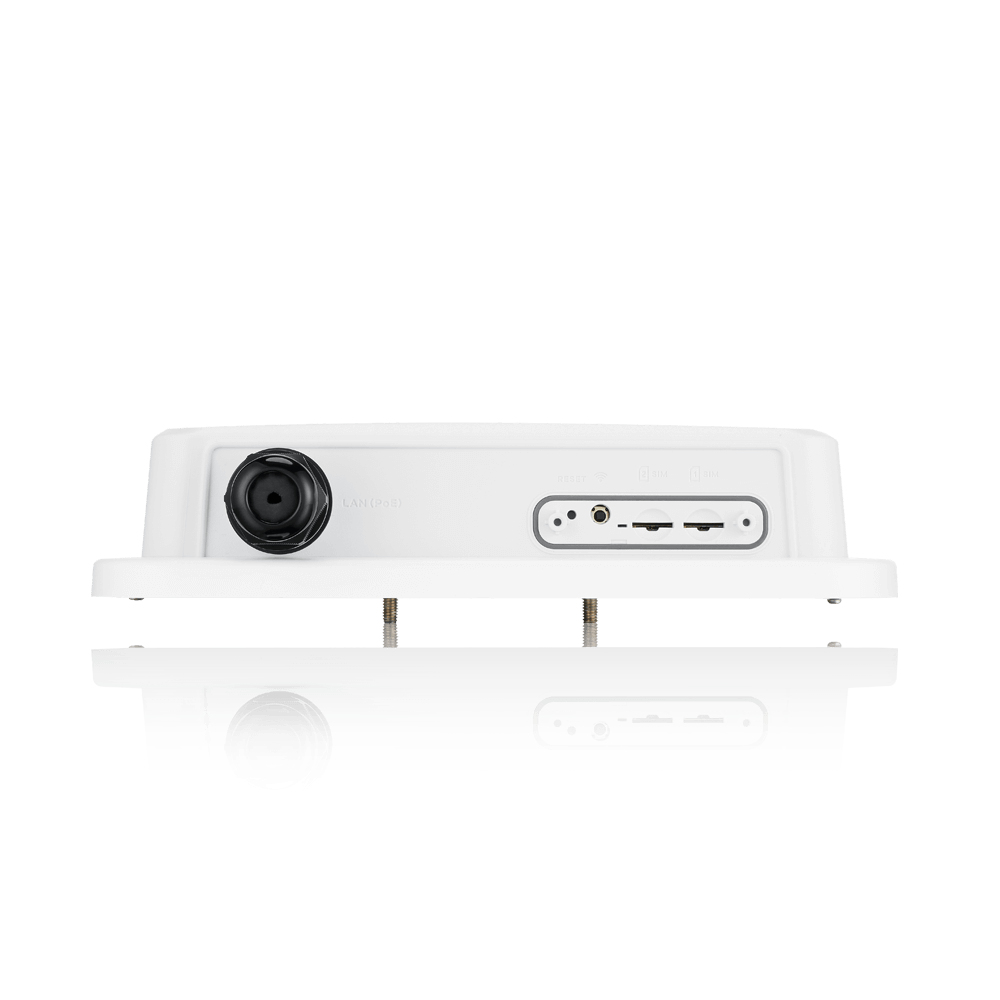

NR7101 Cellular network router
Model NR7101Part no. NR7101-GBZNN1FEAN 4718937627103
49 specifications
- Weight1.14 kg
- ColourWhite
- Device typeCellular network router
- Ethernet LANYes
- Data network4G, 5G, LTE
- Ethernet LAN (RJ-45) ports1
Overview
- Weight
- 1.14 kg
- Colour
- White
- Device type
- Cellular network router
- Ethernet LAN
- Yes
- Data network
- 4G, 5G, LTE
- Ethernet LAN (RJ-45) ports
- 1
- Brand
- Zyxel
- Category
- Cellular Network Device
- Model
- NR7101
- Part numbers
- NR7101-GBZNN1F, NR7101-EU01V1F, NR7101-GB01V1F, NR7101-EUZNN1F
- EAN / UPC
- 4718937627103, 4718937612925, 4718937619146, 4718937624874
- Also known as
- Zyxel NR7101 Cellular network router
Specifications
49 specifications in 14 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network router |
| Product colour | White |
| Mounting | Wall mounting |
| Suitable for outdoor use | Yes |
| Reset button | Yes |
| LED indicators | Yes |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Networking standards | IEEE 802.3af, IEEE 802.3at |
| DHCP server | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | 802.11b, 802.11g, Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 300 Mbit/s |
| Wi-Fi frequency | 2.4 GHz |
Mobile network
| Specification | Value |
|---|---|
| Data network | 4G, 5G, LTE |
| 4G standard | LTE-TDD & LTE-FDD |
| Number of SIM cards | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| USB port | No |
Security
| Specification | Value |
|---|---|
| Security algorithms | SSH |
| Firewall | Yes |
| IP address filtering | Yes |
| URL filtering | Yes |
| DMZ support | Yes |
| Port forwarding | Yes |
| VPN support | Virtual Private Network (VPN) pass-through |
Packaging content
| Specification | Value |
|---|---|
| Cables included | LAN (RJ-45) |
Certificates
| Specification | Value |
|---|---|
| Certification | CE, WEEE, RoHS, HSF |
Performance
| Specification | Value |
|---|---|
| Web-based management | Yes |
| Management protocols | APN, PIN/PUK, MQTT |
| Antenna type | Internal |
| Antennas quantity | 6 |
| Antenna gain level (max) | 10 dBi |
| Mobile operating systems supported | Android, iOS |
Power
| Specification | Value |
|---|---|
| Power source type | PoE |
| Power consumption (typical) | 16 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 60 °C |
| Storage relative humidity (H-H) | 5 - 95% |
| Storage temperature (T-T) | -40 - 65 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 255 mm |
| Depth | 256 mm |
| Height | 58 mm |
| Weight | 1.14 kg |
Packaging data
| Specification | Value |
|---|---|
| Package width | 280 mm |
| Package depth | 420 mm |
| Package height | 108 mm |
| Package weight | 2.82 kg |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
