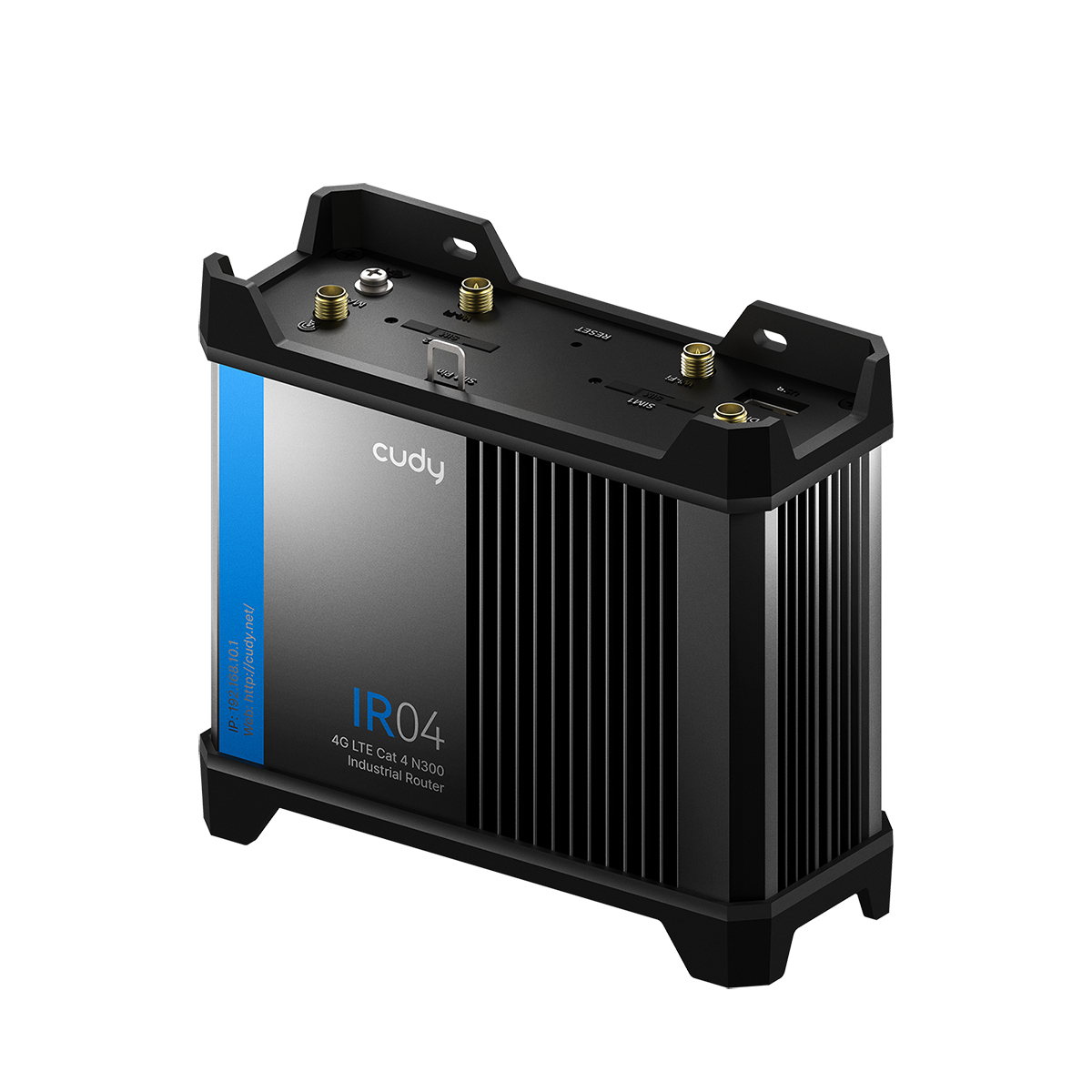

4G LTE Cat 4 N300 Industrial Wi-Fi Router, IR04 1.0
Model 4G LTE Cat 4 N300 Industrial Wi-Fi Router, IR04 1.0Part no. IR04 1.0EAN 6971690793210
56 specifications
- Weight462 g
- ColourBlack
- Device typeCellular network router
- Ethernet LANYes
- Data network4G, WCDMA, 3G
- Ethernet LAN (RJ-45) ports4
Overview
- Weight
- 462 g
- Colour
- Black
- Device type
- Cellular network router
- Ethernet LAN
- Yes
- Data network
- 4G, WCDMA, 3G
- Ethernet LAN (RJ-45) ports
- 4
- Brand
- Cudy
- Category
- Cellular Network Device
- Model
- 4G LTE Cat 4 N300 Industrial Wi-Fi Router, IR04 1.0
- Part number
- IR04 1.0
- EAN / UPC
- 6971690793210
- Also known as
- Cudy 4G LTE Cat 4 N300 Industrial Wi-Fi Router, IR04 1.0 Cellular network router
Specifications
56 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network router |
| Product colour | Black |
| Housing material | Metal |
| Mounting | Wall mounting |
| Reset button | Yes |
| LED indicators | Yes |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| DHCP client | Yes |
| MAC address filtering | Yes |
| Guest access | Yes |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 4 (802.11n) |
| WLAN data transfer rates supported | 150,130,300 Mbit/s |
| Wi-Fi band | Single-band (2.4 GHz) |
| MIMO | Yes |
| MIMO type | Multi User MIMO |
| Wi-Fi Protected Setup (WPS) | Yes |
Mobile network
| Specification | Value |
|---|---|
| Data network | 4G, WCDMA, 3G |
| 4G standard | LTE-TDD & LTE-FDD |
| Number of SIM cards | 2 |

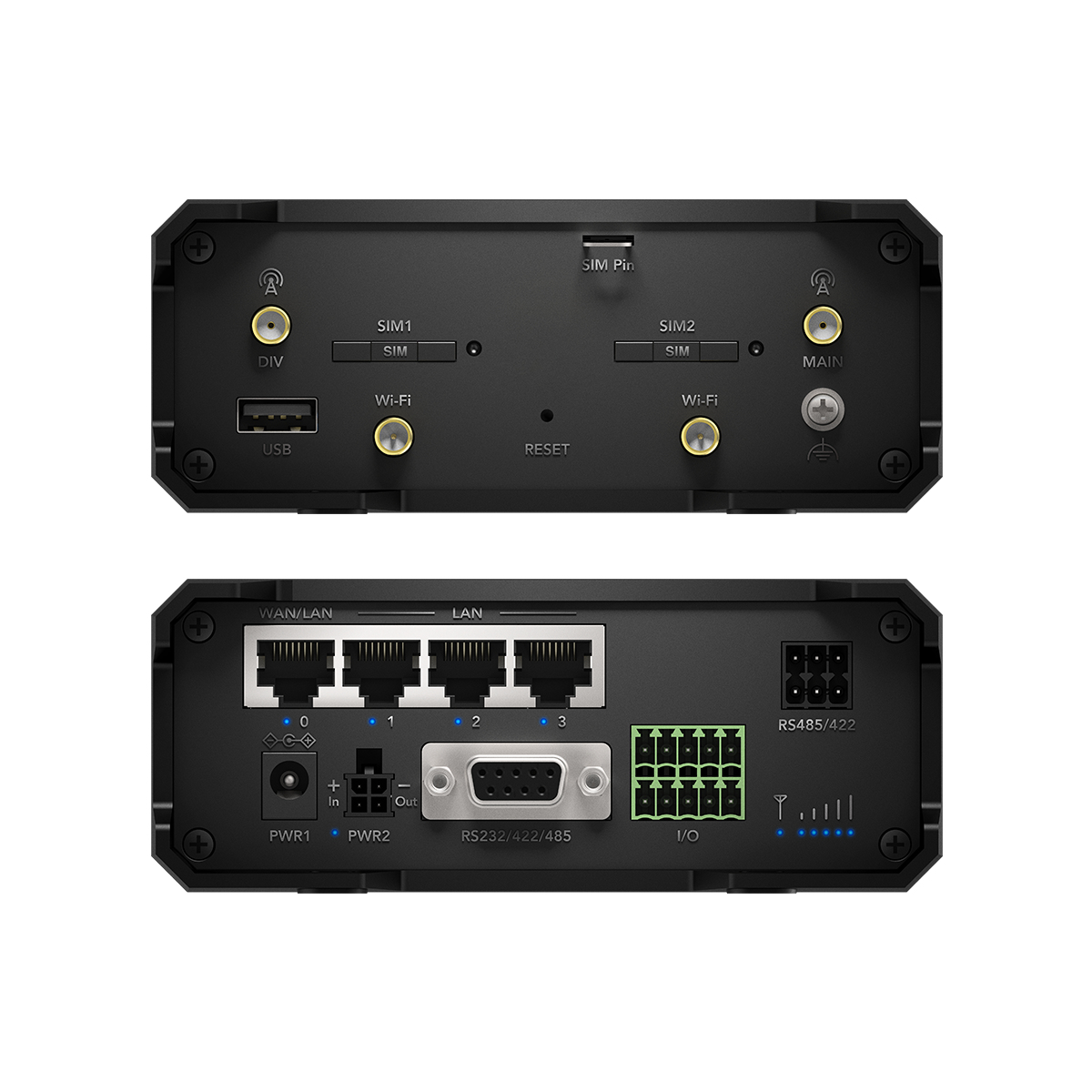

Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 4 |
| USB port | Yes |
| USB 2.0 ports quantity | 1 |
| Power over Ethernet (PoE) ports quantity | 1 |
| Serial interface type | DB9, RS-232/422/485, RS-422/485 |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA2, WPA3, WPA |
| Firewall | Yes |
| IP address filtering | Yes |
| DMZ support | Yes |
| Port forwarding | Yes |

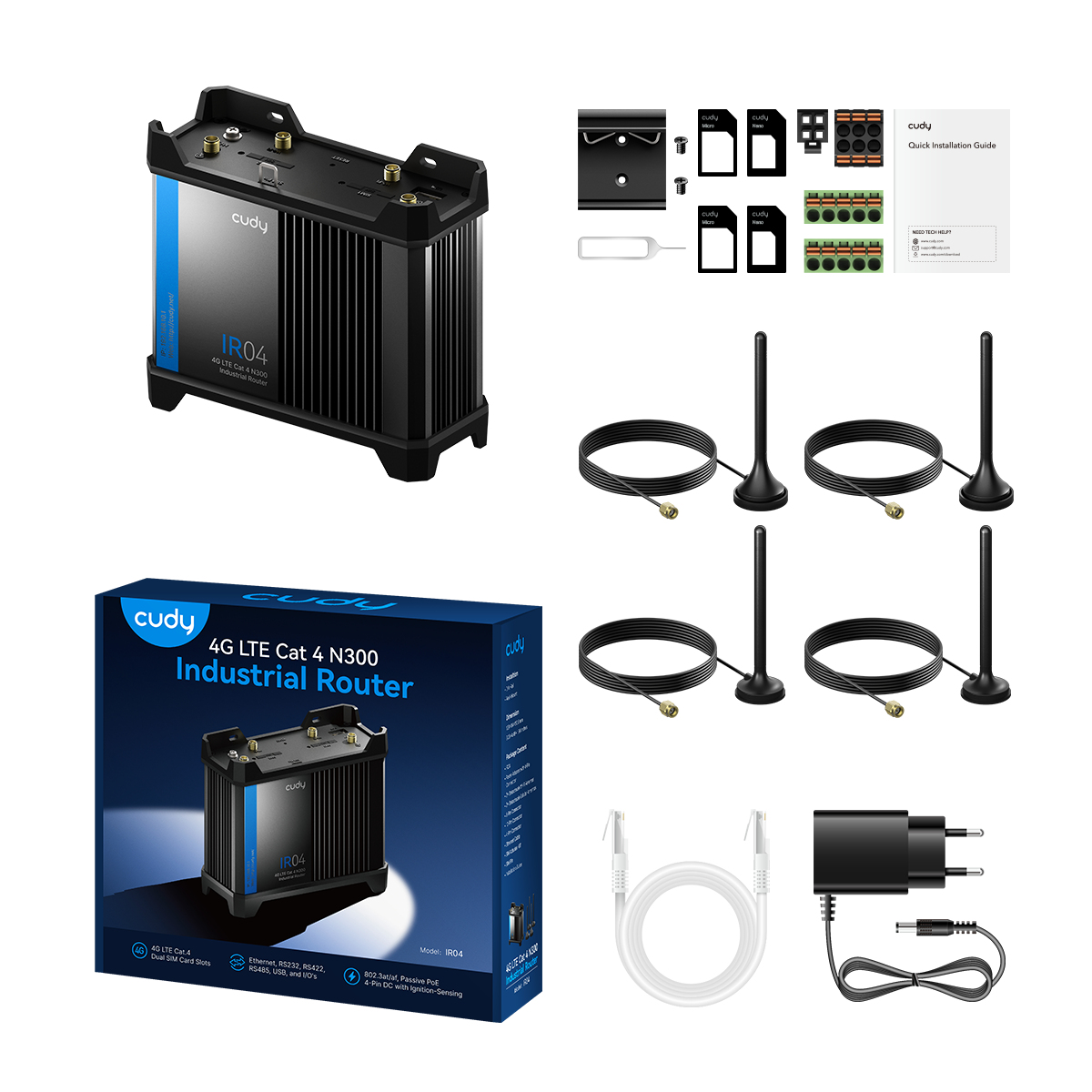

Packaging content
| Specification | Value |
|---|---|
| Cables included | DC, LAN (RJ-45) |
| AC adapter included | Yes |
| Quick start guide | Yes |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | Federal Communications Commission (FCC), CE |
Performance
| Specification | Value |
|---|---|
| Built-in processor | Yes |
| Antenna connector type | RP-SMA |
| Antennas quantity | 4 |
| International Protection (IP) code | IP30 |
Power
| Specification | Value |
|---|---|
| Power source type | AC |
| Output voltage | 12 V |
| Power consumption (typical) | 1 W |
| Input voltage | 100 - 240 V |
| Power consumption (max) | 9.6 W |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -40 - 75 °C |
| Storage temperature (T-T) | -40 - 85 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 129 mm |
| Depth | 114 mm |
| Height | 50.6 mm |
| Weight | 462 g |
Packaging data
| Specification | Value |
|---|---|
| Package width | 220 mm |
| Package depth | 200 mm |
| Package height | 60 mm |
| Package weight | 935 g |
