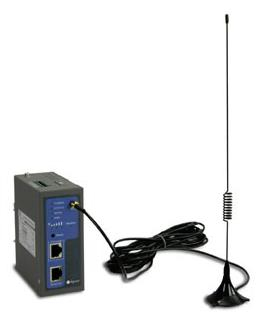

8E4506 cellular network device Cellular network router
Model 8E4506
30 specifications
- ColourBlack
- Device typeCellular network router
- Ethernet LANYes
- Data network3G, GPRS, GSM, HSPA, HSUPA
- Ethernet LAN (RJ-45) ports1
- Antenna connector typeSMA
Overview
- Colour
- Black
- Device type
- Cellular network router
- Ethernet LAN
- Yes
- Data network
- 3G, GPRS, GSM, HSPA, HSUPA
- Ethernet LAN (RJ-45) ports
- 1
- Antenna connector type
- SMA
- Brand
- Digicom
- Category
- Cellular Network Device
- Model
- 8E4506
- Part number
- 8E4506
- Also known as
- Digicom 8E4506 cellular network device Cellular network router
Specifications
30 specifications in 10 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network router |
| Product colour | Black |
| Market positioning | Industrial |
| Reset button | Yes |
| LED indicators | Yes |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Fast Ethernet |
| Ethernet LAN data rates | 10,100 Mbit/s |
| Networking standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab |
| DHCP server | Yes |
| IP routing | Yes |
Mobile network
| Specification | Value |
|---|---|
| Data network | 3G, GPRS, GSM, HSPA, HSUPA |
| GSM bands supported | 850,900,1900,2100 MHz |
| Number of simultaneous SIM cards | 1 |
| Short Message Service (SMS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Ethernet LAN (RJ-45) ports | 1 |
| Serial interface type | RS-232 |
Security
| Specification | Value |
|---|---|
| Network address translation (NAT) | Yes |
| Firewall | Yes |
| DMZ support | Yes |
Performance
| Specification | Value |
|---|---|
| Antenna connector type | SMA |
Power
| Specification | Value |
|---|---|
| Power source type | AC, DC |
| Output voltage | 12 V |
| External power adapter | Yes |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 5 - 95% |
| Operating temperature (T-T) | -25 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 100 mm |
| Depth | 46 mm |
| Height | 110 mm |
Other features
| Specification | Value |
|---|---|
| Data transfer rate | 0.1 Gbit/s |
