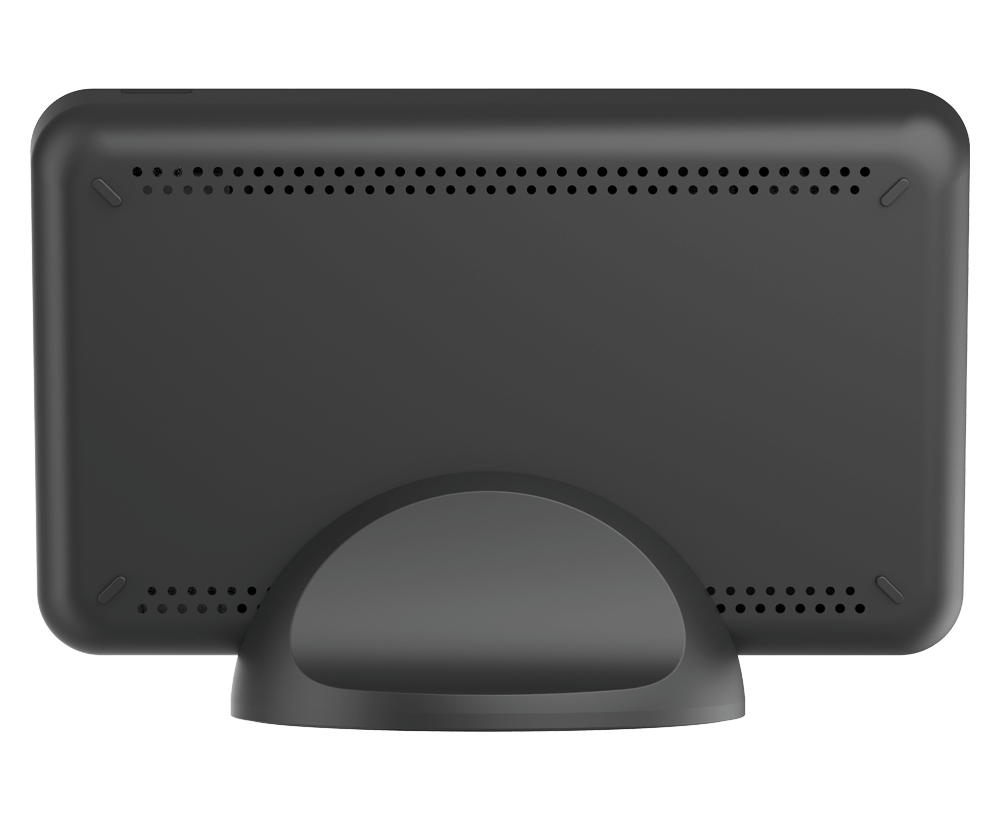

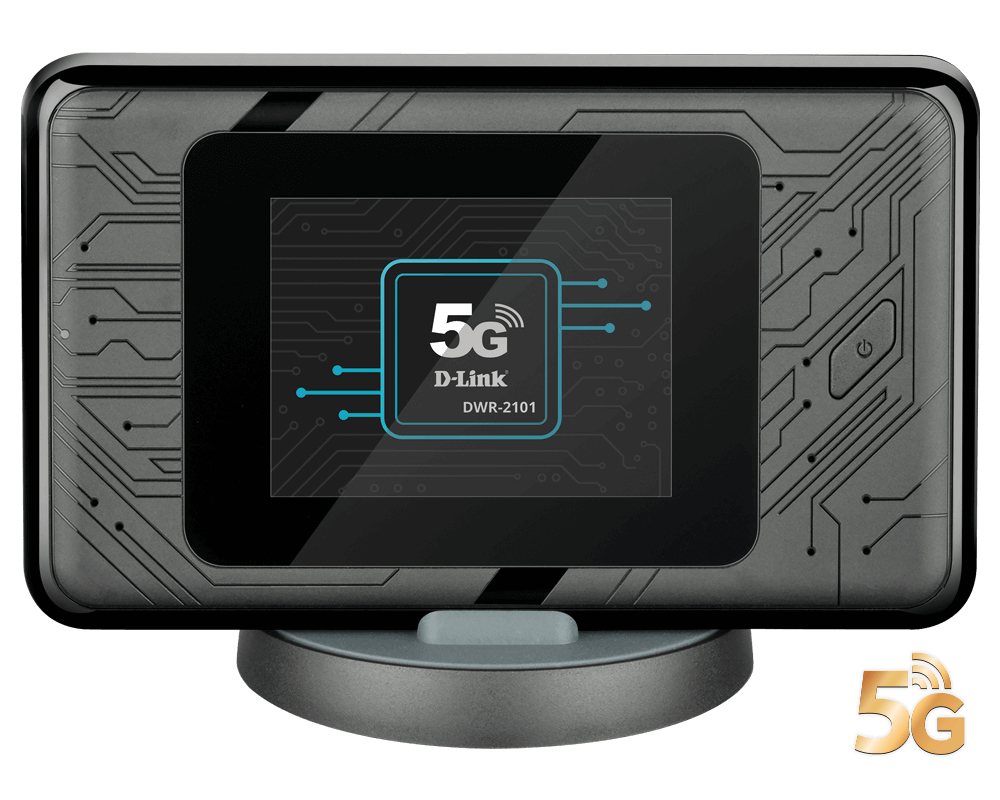

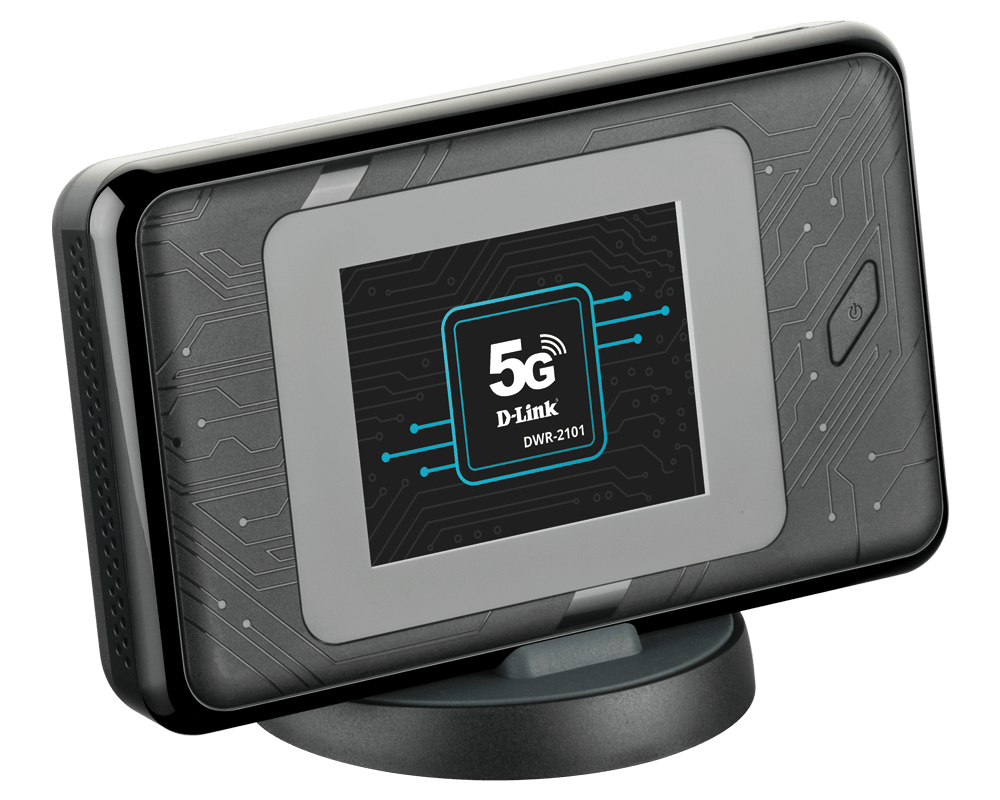

5G Wi-Fi 6 Mobile Hotspot AX1800
Model DWR-2101EAN 790069454332
40 specifications
- Display6.1 cm (2.4")
- Battery5260 mAh
- Weight235 g
- ColourBlack
- Device typeCellular network modem
- Ethernet LANYes
Overview
- Display
- 6.1 cm (2.4")
- Battery
- 5260 mAh
- Weight
- 235 g
- Colour
- Black
- Device type
- Cellular network modem
- Ethernet LAN
- Yes
- Brand
- D-Link
- Category
- Cellular Network Device
- Model
- DWR-2101
- Part number
- DWR-2101
- EAN / UPC
- 790069454332
- Also known as
- D-Link 5G Wi-Fi 6 Mobile Hotspot AX1800
Specifications
40 specifications in 13 groups
Design
| Specification | Value |
|---|---|
| Device type | Cellular network modem |
| Product colour | Black |
| Market positioning | Portable |
| Built-in display | Yes |
| Display type | LCD |
| Display diagonal | 6.1 cm (2.4") |
Ethernet LAN features
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Ethernet LAN interface type | Gigabit Ethernet |
| Ethernet LAN data rates | 1200 Mbit/s |
| Networking standards | IEEE 802.11ac, IEEE 802.11ax, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Supported network protocols | WPA/WPA2, WPA3 |
Wireless LAN features
| Specification | Value |
|---|---|
| Wi-Fi | Yes |
| Wi-Fi standards | Wi-Fi 6 (802.11ax) |
| WLAN data transfer rates supported | 1200 Mbit/s |
| Wi-Fi frequency | 5.85 GHz |
Mobile network
| Specification | Value |
|---|---|
| Data network | 4G, 5G, LTE, WCDMA |
| 4G standard | LTE-TDD & LTE-FDD |
| Number of SIM cards | 1 |
| Short Message Service (SMS) | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| USB port type | USB Type-C |
| USB port | Yes |
Security
| Specification | Value |
|---|---|
| Security algorithms | WPA, WPA2, WPA3 |
| DMZ support | Yes |
Battery
| Specification | Value |
|---|---|
| Battery technology | Lithium-Ion (Li-Ion) |
| Battery capacity | 5260 mAh |
Certificates
| Specification | Value |
|---|---|
| Compliance certificates | CE, RoHS |
Performance
| Specification | Value |
|---|---|
| Antenna type | Internal |
| Antennas quantity | 3 |
Power
| Specification | Value |
|---|---|
| Power source type | Battery |
| Output current | 2 A |
| Built-in battery | Yes |
| Input voltage | 5 V |
Operational conditions
| Specification | Value |
|---|---|
| Operating relative humidity (H-H) | 10 - 90% |
| Operating temperature (T-T) | 0 - 55 °C |
| Storage temperature (T-T) | -30 - 70 °C |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 119 mm |
| Depth | 23.5 mm |
| Height | 72 mm |
| Weight | 235 g |
Logistics data
| Specification | Value |
|---|---|
| Harmonized System (HS) code | 85176990 |
