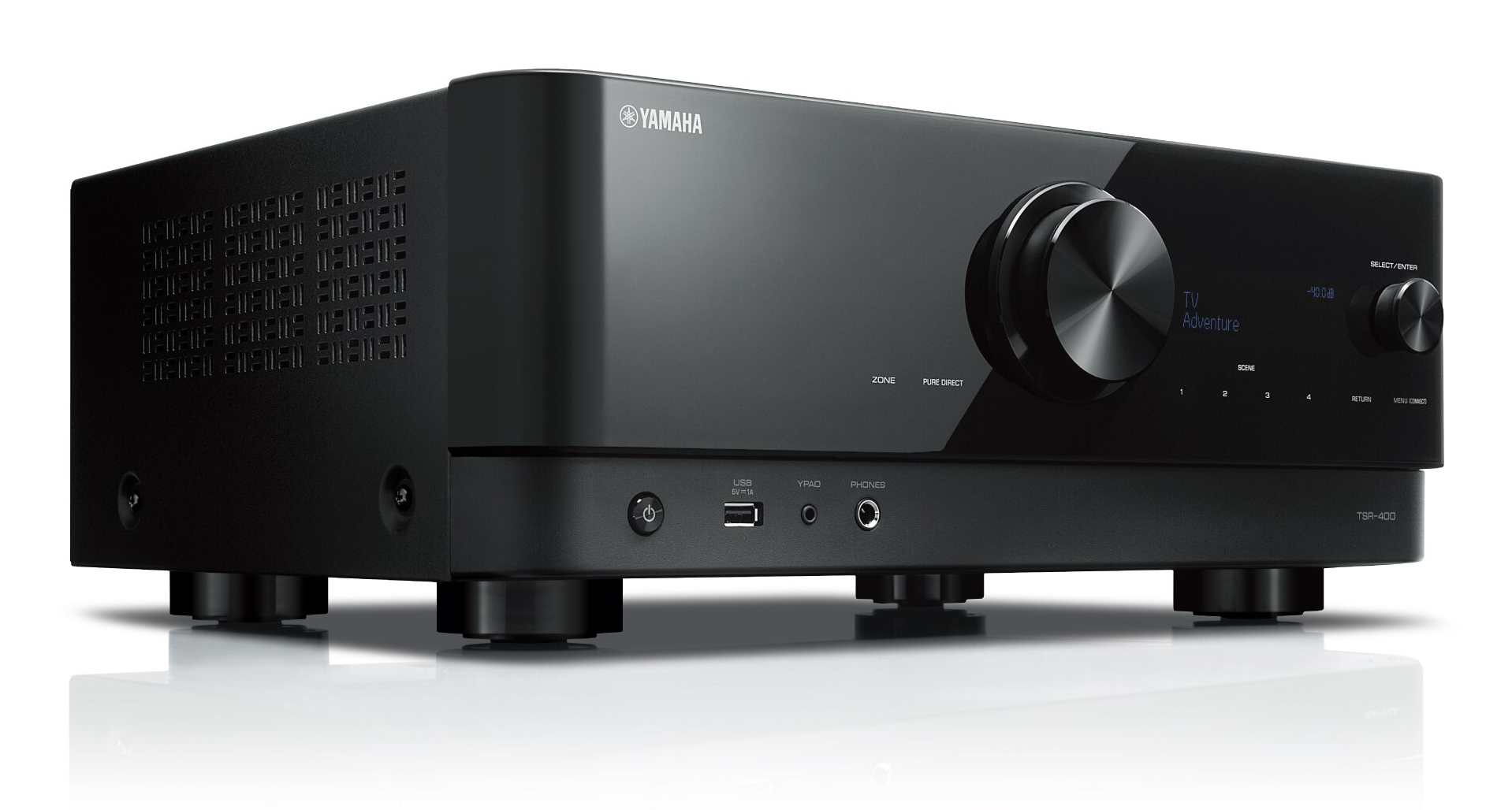

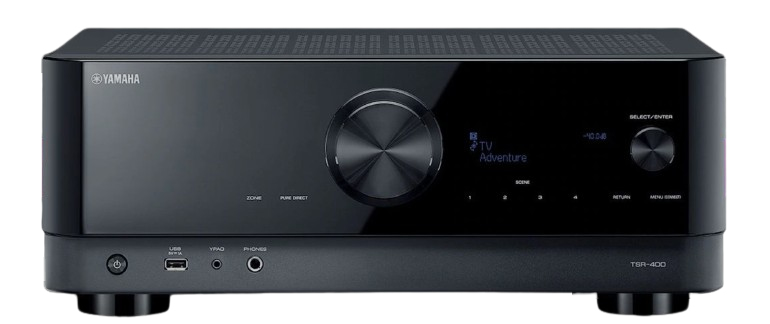

TSR-400 80 W 5.2 channels Surround 3D Black
Model TSR-400Part no. ATSR400BLEAN 4957812660402
61 specifications
- ConnectivityWired & Wireless
- Weight8.8 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)80 W
- HDMI in4
- Number of HDMI outputs1
Overview
- Connectivity
- Wired & Wireless
- Weight
- 8.8 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 80 W
- HDMI in
- 4
- Number of HDMI outputs
- 1
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- TSR-400
- Part number
- ATSR400BL
- EAN / UPC
- 4957812660402
- Also known as
- Yamaha TSR-400 80 W 5.2 channels Surround 3D Black
Specifications
61 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 80 W |
| Audio output channels | 5.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@6 Ohm) | 115 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out channels | 0.2 |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Clamp terminals |
| Connectivity technology | Wired & Wireless |
| Analog audio output terminal ports | 10 |
| Phono inputs (RCA) | 7 |
| Subwoofer out | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA |
| Video formats supported | MPEG4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth profiles | AAC, SBC |
| Data transfer rate | 24000 Mbit/s |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | DAB |
| Internet radio | Yes |
| Internet radio services supported | Spotify |
| Preset stations quantity | 40 |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 3840 x 2160, 7680 x 4320 |
| Supported video modes | 2160p, 4320p |
| 3D | Yes |
| Video D/A Converter (DAC) | 32-bit/384kHz |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD, High Definition Audio (HD Audio) |
| Audio Return Channel (ARC) | Yes |
| DSP programs quantity | 17 |
| Digital Signal Processing (DSP) | Yes |
| AV input | Yes |
| AirPlay | Yes |
| Analog audio input | 3 |
| Audio amplifier | Yes |
| Auto standby | Yes |
| Bi-amping | Yes |
| ECO mode | Yes |
| Power consumption (off) | 0.1 W |
| Product colour | Black |
| Remote control included | Yes |
| Volume control | Yes |
| Warranty period | 3 year(s) |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 377 mm |
| Height | 171 mm |
| Weight | 8.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AM antenna | Yes |
| FM antenna | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI ports quantity | 5 |
