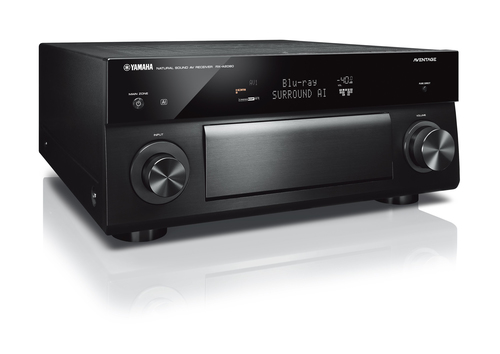

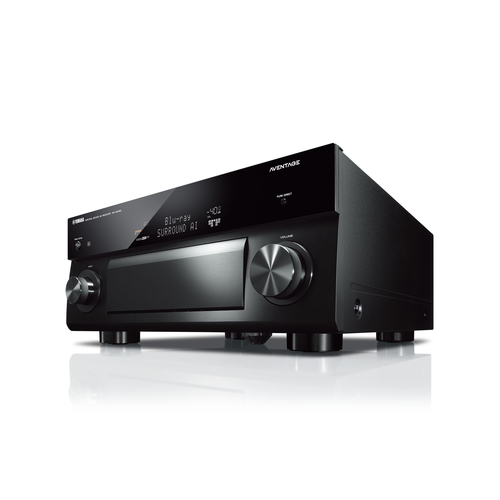

RX-A2080 140 W 9.2 channels Surround 3D Black
Model RX-A2080Part no. RX-A2080 BLACKEAN 4957812633314
70 specifications
- ConnectivityWired & Wireless
- Weight17 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)140 W
- HDMI in7
- Number of HDMI outputs3
Overview
- Connectivity
- Wired & Wireless
- Weight
- 17 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 140 W
- HDMI in
- 7
- Number of HDMI outputs
- 3
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A2080
- Part numbers
- RX-A2080 BLACK, RX-A2080 TITAN
- EAN / UPC
- 4957812633314, 4957812633390
- Also known as
- Yamaha RX-A2080 140 W 9.2 channels Surround 3D Black
Specifications
70 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 140 W |
| Audio output channels | 9.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 220 W |
| Dynamic power per channel (4 Ohm) | 285 W |
| Dynamic power per channel (8 Ohm) | 165 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out channels | 7.2 |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 7 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 4 |
| Audio (L/R) in | 9 |
| Digital audio optical in | 3 |
| Digital audio coaxial in | 3 |
| Remote (IR) input | 1 |
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |

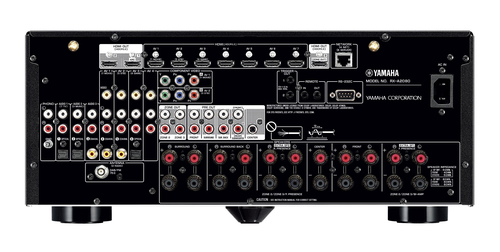

Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 3 |
| Component video (YPbPr/YCbCr) out | 0 |
| Composite video out | 0 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
| FM antenna ports quantity | 1 |
| 12V trigger | Yes |
| 12V trigger ports quantity | 2 |
| Phono inputs (RCA) | 1 |
| RS-232 ports | 1 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, DSD, FLAC, MP3, WAV, WMA |
| Video formats supported | MPEG4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | DAB, FM |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported video modes | 2160p |
| 3D | Yes |
| Video D/A Converter (DAC) | 32-bit/384kHz |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| Multi-Zone capability | Yes |
| Multi-Zone quantity | 4 |
| Apple docking | Yes |
| Apple docking compatibility | iPad, iPhone |
| Graphical user interface (GUI) | Yes |
| DSP programs quantity | 24 |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Audio Lip synchronization | Yes |
| Bi-amping | Yes |
| ECO mode | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 474 mm |
| Height | 192 mm |
| Weight | 17 kg |
