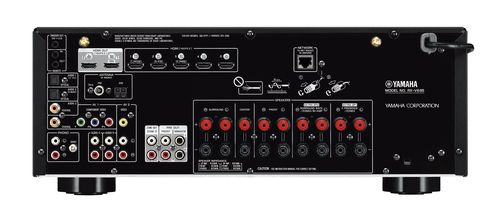

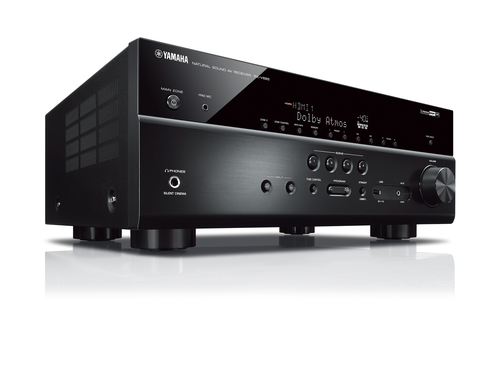

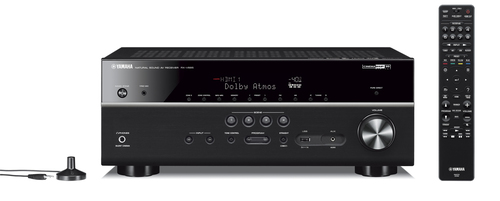

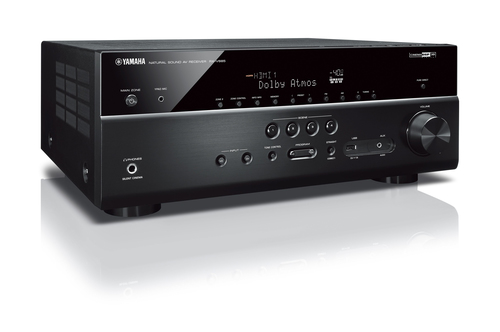

RX-V685 90 W 7.2 channels Surround 3D Black
Model RX-V685Part no. RX-V685-BLEAN 4957812627702
67 specifications
- Weight10.5 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)90 W
- HDMI in5
- Number of HDMI outputs2
- 12V triggerYes
Overview
- Weight
- 10.5 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 90 W
- HDMI in
- 5
- Number of HDMI outputs
- 2
- 12V trigger
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-V685
- Part numbers
- RX-V685-BL, RXV685-TI
- EAN / UPC
- 4957812627702, 4957812627801
- Also known as
- Yamaha RX-V685 90 W 7.2 channels Surround 3D Black
Specifications
67 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 90 W |
| Audio output channels | 7.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 150 W |
| Dynamic power per channel (2 Ohm) | 235 W |
| Dynamic power per channel (4 Ohm) | 190 W |
| Dynamic power per channel (6 Ohm) | 165 W |
| Dynamic power per channel (8 Ohm) | 125 W |
| Total Harmonic Distortion (THD) | 10% |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 5 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 1 |
| Digital audio optical in | 2 |
| Digital audio coaxial in | 2 |
| Remote (IR) input | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| Line-in | Yes |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 2 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| 12V trigger | Yes |
| 12V trigger ports quantity | 1 |
| Phono inputs (RCA) | 1 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
| Bluetooth profiles | A2DP, AVRCP |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| AM band range | 531 - 1611 kHz |
| FM band range | 87.5 - 108 MHz |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1280 x 720 (HD 720), 1920 x 1080 (HD 1080), 3840 x 2160 |
| Supported video modes | 720p, 1080i, 1080p, 2160p |
| 3D | Yes |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| Deep colour support | Yes |
| Audio Return Channel (ARC) | Yes |
| Multi-Zone capability | Yes |
| Multi-Zone quantity | 2 |
| DSP programs quantity | 17 |
| Digital Signal Processing (DSP) | Yes |
| AUX in | Yes |
| AV input | Yes |
| AirPlay | Yes |
| Auto standby | Yes |
| Bluetooth range | 10 m |
| ECO mode | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Product colour | Black |
| Remote control included | Yes |
| USB 2.0 ports quantity | 1 |
| Volume control | Rotary |
Power
| Specification | Value |
|---|---|
| AC input voltage | 230 V |
| AC input frequency | 50 Hz |
| Power consumption (typical) | 300 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 378 mm |
| Height | 171 mm |
| Weight | 10.5 kg |
