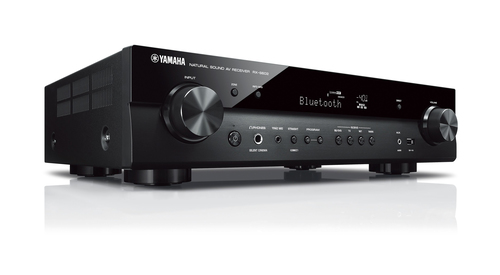

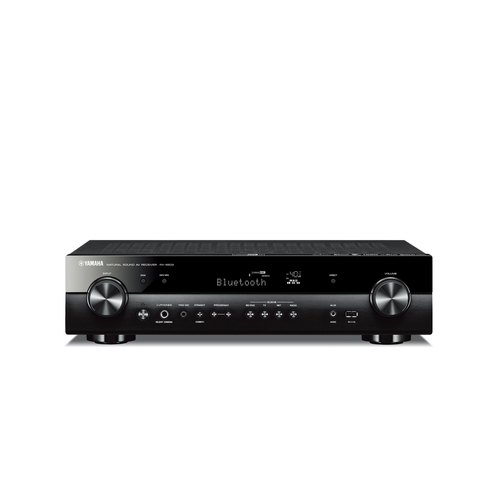

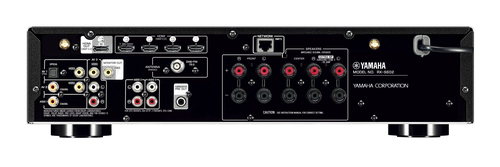

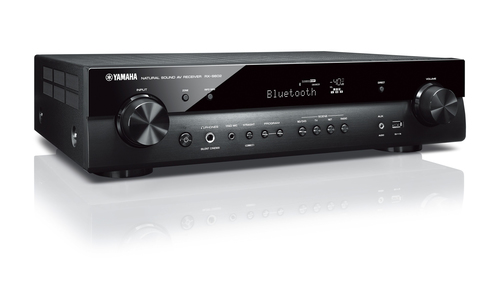

RX-S602 5.1 channels Surround 3D Black
Model RX-S602Part no. RXS602-BLEAN 4957812633727
62 specifications
- Weight7.8 kg
- ColourBlack
- Audio output channels5.1 channels
- HDMI in4
- Number of HDMI outputs1
- Speakers connectivity typeClamp terminals
Overview
- Weight
- 7.8 kg
- Colour
- Black
- Audio output channels
- 5.1 channels
- HDMI in
- 4
- Number of HDMI outputs
- 1
- Speakers connectivity type
- Clamp terminals
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-S602
- Part numbers
- RXS602-BL, RXS602-WH, RXS602-TI
- EAN / UPC
- 4957812633727, 4957812633666, 4957812633758
- Also known as
- Yamaha RX-S602 5.1 channels Surround 3D Black
Specifications
62 specifications in 14 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| Receiver type | Surround |
| Dynamic power per channel (2 Ohm) | 160 W |
| Power output per channel (1KHz@6 Ohm) | 95 W |
| Dynamic power per channel (4 Ohm) | 140 W |
| Dynamic power per channel (6 Ohm) | 110 W |
| Dynamic power per channel (8 Ohm) | 90 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Composite video in | 3 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Composite video out | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Clamp terminals |
| AM antenna ports quantity | 1 |
| FM antenna ports quantity | 1 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA |
| Video formats supported | MPEG4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 4.2 |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| AM band range | 530 - 1710 kHz |
| FM band range | 87.5 - 108 MHz |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported video modes | 2160p |
| 3D | Yes |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| Apple docking | No |
| DSP programs quantity | 17 |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Auto standby | Yes |
| Bi-amping | Yes |
| Bluetooth range | 10 m |
| ECO mode | Yes |
| HDCP | No |
| HDCP version | 2.2 |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Remote control included | Yes |
| Volume control | Rotary |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 328 mm |
| Height | 111 mm |
| Weight | 7.8 kg |
Packaging content
| Specification | Value |
|---|---|
| AM antenna | Yes |
| Batteries included | Yes |
| FM antenna | Yes |
| User guide | Yes |
