AVENTAGE RX-A3030
Model AVENTAGE RX-A3030Part no. RX-A3030SEAN 4957812535465
62 specifications
- Weight19.9 kg
- ColourTitanium
- Power output per channel (20-20KHz@8 Ohm)150 W
- HDMI in8
- Number of HDMI outputs2
- 12V triggerYes
Overview
- Weight
- 19.9 kg
- Colour
- Titanium
- Power output per channel (20-20KHz@8 Ohm)
- 150 W
- HDMI in
- 8
- Number of HDMI outputs
- 2
- 12V trigger
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- AVENTAGE RX-A3030
- Part number
- RX-A3030S
- EAN / UPC
- 4957812535465
- Also known as
- Yamaha AVENTAGE RX-A3030 150 W 9.2 channels 3D Titanium
Specifications
62 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 150 W |
| Audio output channels | 9.2 channels |
| Power output per channel (1KHz@8 Ohm) | 230 W |
| Dynamic power per channel (4 Ohm) | 295 W |
| Dynamic power per channel (8 Ohm) | 175 W |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
| Pre-out connectivity | Yes |

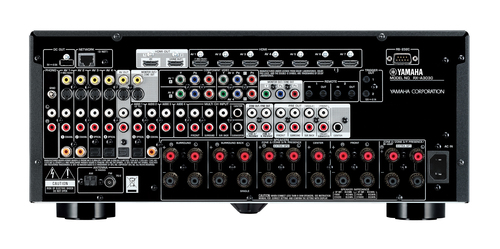

Inputs
| Specification | Value |
|---|---|
| HDMI in | 8 |
| Component video (YPbPr/YCbCr) in | 4 |
| Composite video in | 5 |
| S-Video inputs quantity | 4 |
| Audio (L/R) in | 10 |
| Digital audio optical in | 4 |
| Digital audio coaxial in | 3 |
| Remote (IR) input | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 2 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 1 |
| Audio (L/R) out | 1 |
| Digital audio optical out | 1 |
| Digital audio coaxial out | 0 |
| Remote (IR) output | 2 |
| Headphone outputs | 1 |
| Headphone connectivity | 6.3 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| 12V trigger | Yes |
| 12V trigger ports quantity | 2 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| AM band range | 522 - 1.620 kHz |
| FM band range | 87.5 - 108 MHz |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Display | LED |
| Audio decoders | Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| Apple docking compatibility | Not supported |
| Digital Signal Processing (DSP) | Yes |
| AV input | Yes |
| AirPlay | Yes |
| Bi-amping | Yes |
| On Screen Display (OSD) | Yes |
| Product colour | Titanium |
| RS-232 interface | Yes |
| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.35 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 467 mm |
| Height | 192 mm |
| Weight | 19.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
| Warranty card | Yes |
