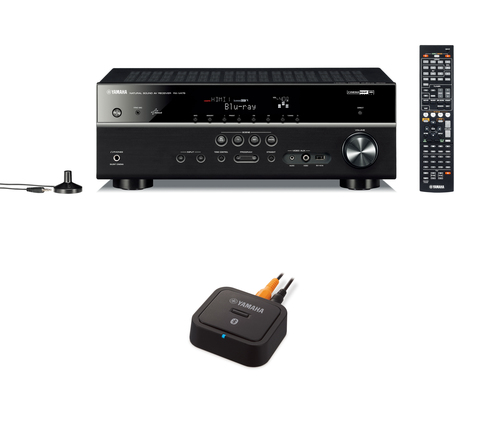

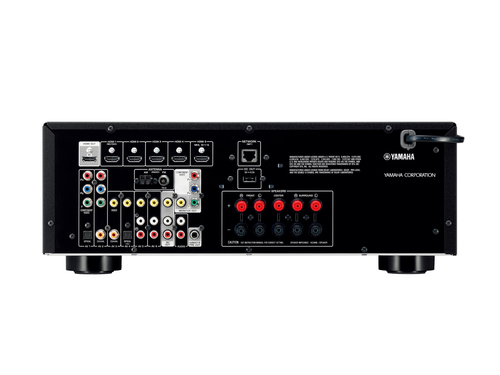

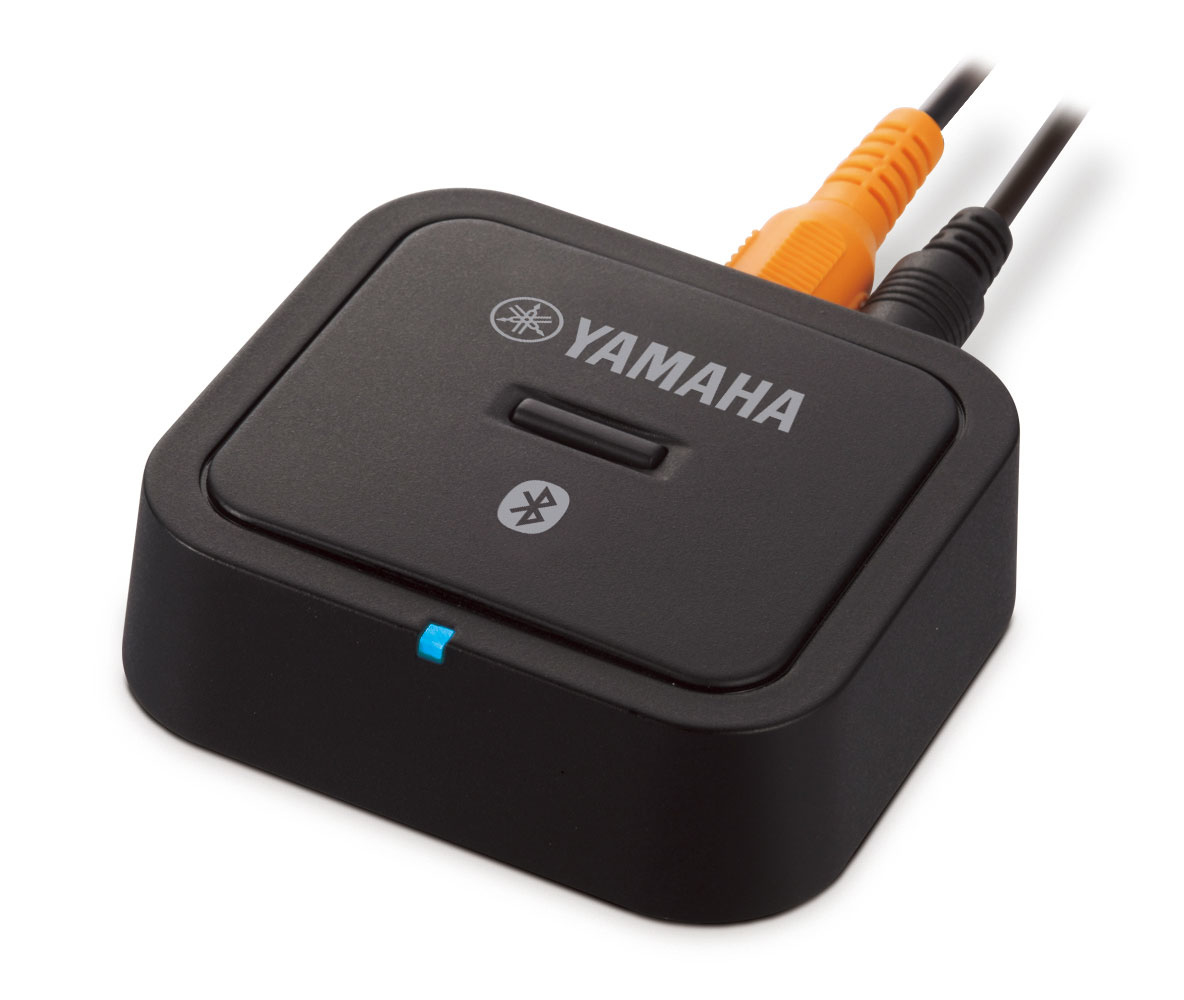

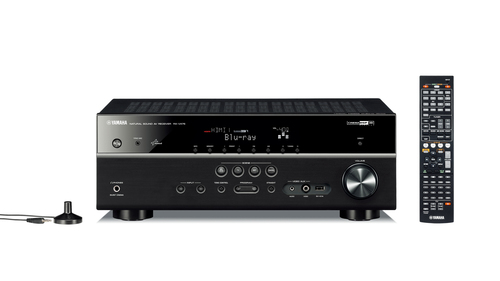

RX-V475 + YBA-11
Model RX-V475 + YBA-11Part no. APKRXV475BLBT
61 specifications
- ConnectivityWired
- Weight7.8 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)80 W
- HDMI in5
- Number of HDMI outputs1
Overview
- Connectivity
- Wired
- Weight
- 7.8 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 80 W
- HDMI in
- 5
- Number of HDMI outputs
- 1
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-V475 + YBA-11
- Part number
- APKRXV475BLBT
- Also known as
- Yamaha RX-V475 + YBA-11 80 W 5.1 channels Surround 3D Black
Specifications
61 specifications in 14 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 80 W |
| Audio output channels | 5.1 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 115 W |
| Power output per channel (1KHz@6 Ohm) | 135 W |
| Dynamic power per channel (4 Ohm) | 130 W |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
| Pre-out channels | 1 SW |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 5 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 4 |
| Audio (L/R) in | 4 |
| Digital audio optical in | 2 |
| Digital audio coaxial in | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Audio (L/R) out | 1 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 1 |
| Headphone connectivity | 3.5 mm |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Binding post |
| Connectivity technology | Wired |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, FLAC, MP3, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| Internet radio | Yes |
| Internet radio services supported | Spotify, vTuner |
| Preset stations quantity | 40 |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| 3D | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| Apple docking compatibility | Not supported |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Audio Lip synchronization | Yes |
| Bi-amping | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| On Screen Display (OSD) | Yes |
| On Screen Display (OSD) languages | German, English, Spanish, French, Italian, Japanese, Russian |
| Product colour | Black |
| Remote control included | Yes |
| Volume control | Rotary |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 320 mm |
| Height | 111 mm |
| Weight | 7.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
