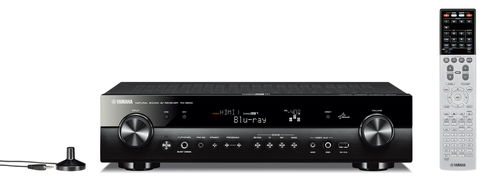

RX-S600 60 W 5.1 channels 3D Black
Model RX-S600Part no. RX-S600BEAN 4957812538794
54 specifications
- Weight7.8 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)60 W
- HDMI in5
- Number of HDMI outputs1
- Ethernet LANYes
Overview
- Weight
- 7.8 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 60 W
- HDMI in
- 5
- Number of HDMI outputs
- 1
- Ethernet LAN
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-S600
- Part numbers
- RX-S600B, RX-S600S, RX-S600TI
- EAN / UPC
- 4957812538794, 4957812538831
- Also known as
- Yamaha RX-S600 60 W 5.1 channels 3D Black
Specifications
54 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 60 W |
| Audio output channels | 5.1 channels |
| Power output per channel (1KHz@6 Ohm) | 95 W |
| Dynamic power per channel (4 Ohm) | 140 W |
| Dynamic power per channel (8 Ohm) | 90 W |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
| Pre-out channels | 1 SW |
| Pre-out connectivity | Yes |

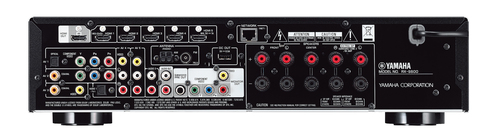

Inputs
| Specification | Value |
|---|---|
| HDMI in | 5 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 4 |
| Audio (L/R) in | 4 |
| Digital audio optical in | 2 |
| Digital audio coaxial in | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Audio (L/R) out | 1 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Headphone outputs | 1 |
| Headphone connectivity | 6.3 mm |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| AM band range | 522 - 1.620 kHz |
| FM band range | 87.5 - 108 MHz |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
Technical details
| Specification | Value |
|---|---|
| Display | LED |
| Audio decoders | Dolby Digital Plus, Dolby TrueHD, DTS-HD Master Audio |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| Apple docking compatibility | Not supported |
| Digital Signal Processing (DSP) | Yes |
| AV input | Yes |
| AirPlay | Yes |
| On Screen Display (OSD) | Yes |
| Product colour | Black |

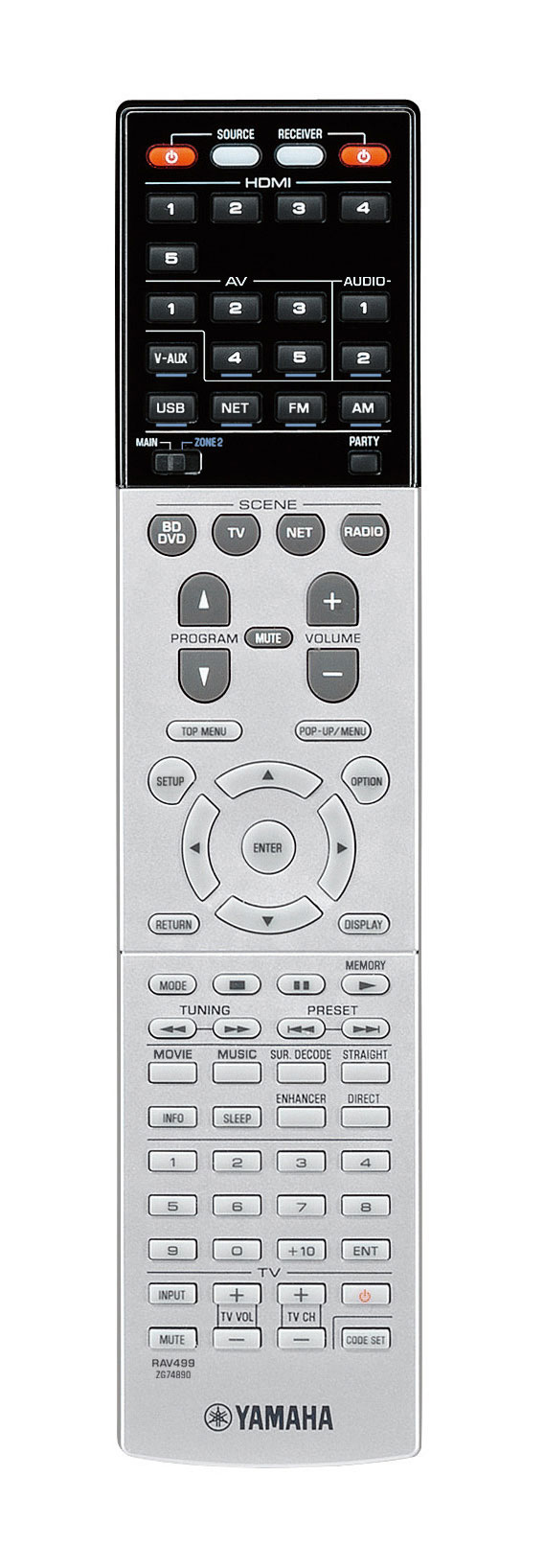

| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| AC input voltage | 100-240 V |
| AC input frequency | 50 - 60 Hz |
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 320 mm |
| Height | 111 mm |
| Weight | 7.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
| Warranty card | Yes |
