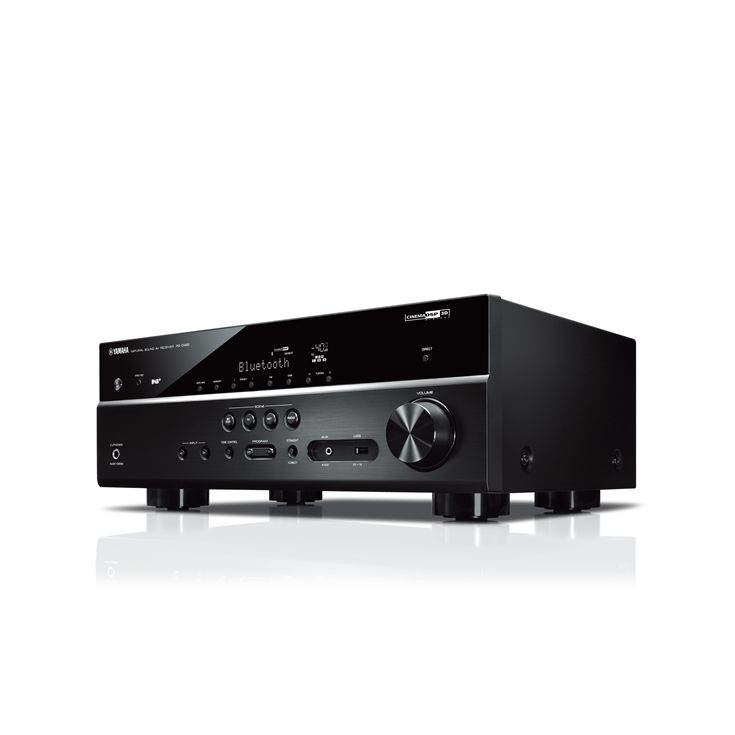

RX-D485 5.1 channels Surround 3D Black
Model RX-D485Part no. RX-D485 BLACKEAN 4957812629102
49 specifications
- Weight7.8 kg
- ColourBlack
- Audio output channels5.1 channels
- HDMI in4
- Number of HDMI outputs1
- Speakers connectivity typeRCA
Overview
- Weight
- 7.8 kg
- Colour
- Black
- Audio output channels
- 5.1 channels
- HDMI in
- 4
- Number of HDMI outputs
- 1
- Speakers connectivity type
- RCA
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-D485
- Part numbers
- RX-D485 BLACK, RX-D485 TITAN
- EAN / UPC
- 4957812629102, 4957812634564
- Also known as
- Yamaha RX-D485 5.1 channels Surround 3D Black
Specifications
49 specifications in 14 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 5.1 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@6 Ohm) | 115 W |
| Dynamic power per channel (4 Ohm) | 130 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Composite video in | 3 |
| Audio (L/R) in | 4 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 2 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Composite video out | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | RCA |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| Internet radio | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 3840 x 2160 |
| Supported video modes | 2160p |
| 3D | Yes |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Display | LCD |
| Audio decoders | DTS-HD Master Audio, Dolby Digital Plus, Dolby TrueHD |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| DSP programs quantity | 17 |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Auto standby | Yes |
| Bi-amping | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 327 mm |
| Height | 161 mm |
| Weight | 7.8 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
