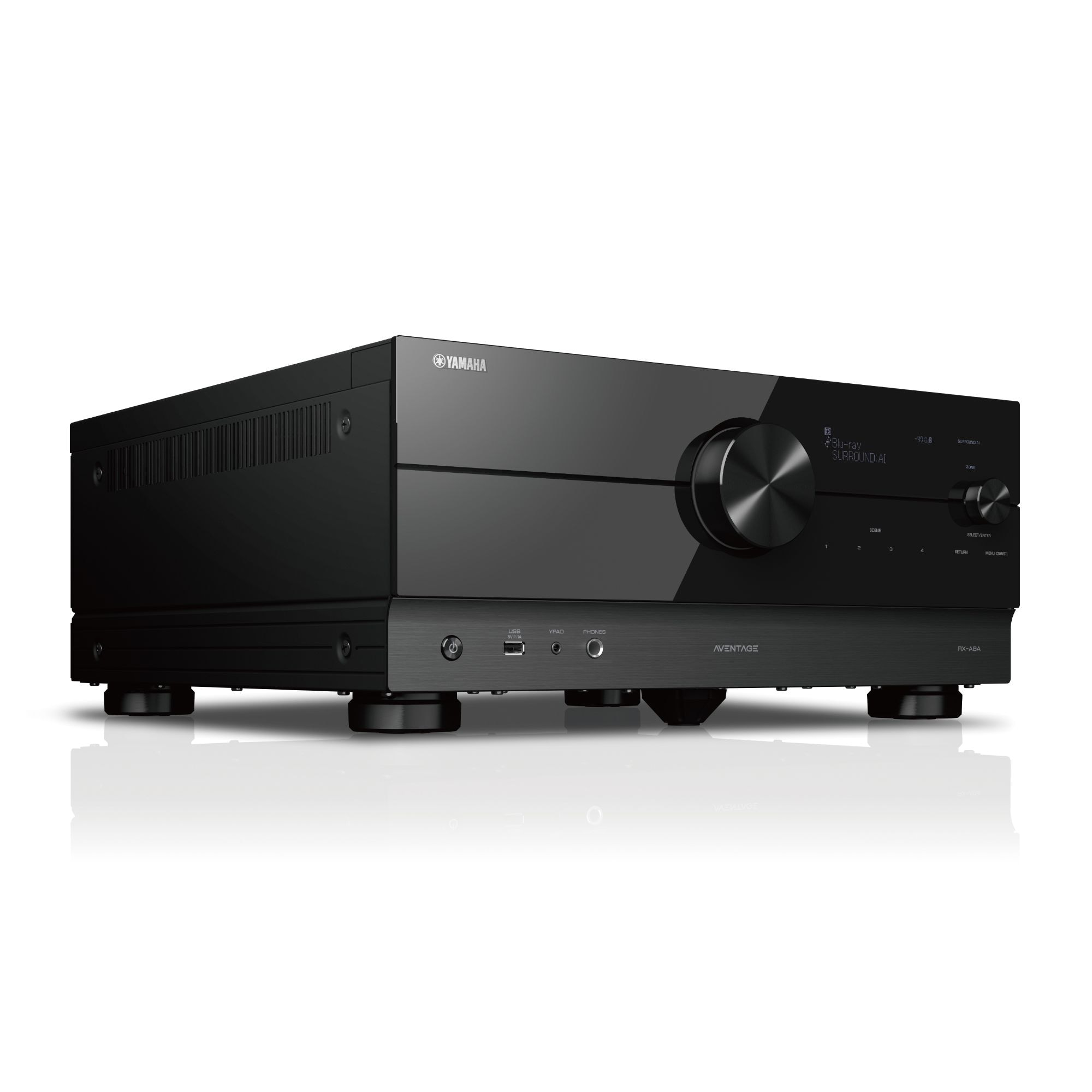

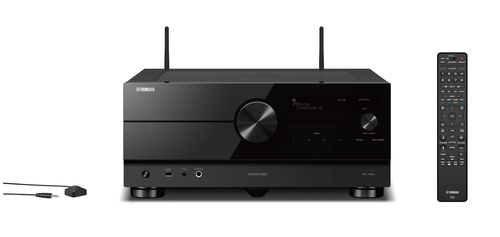

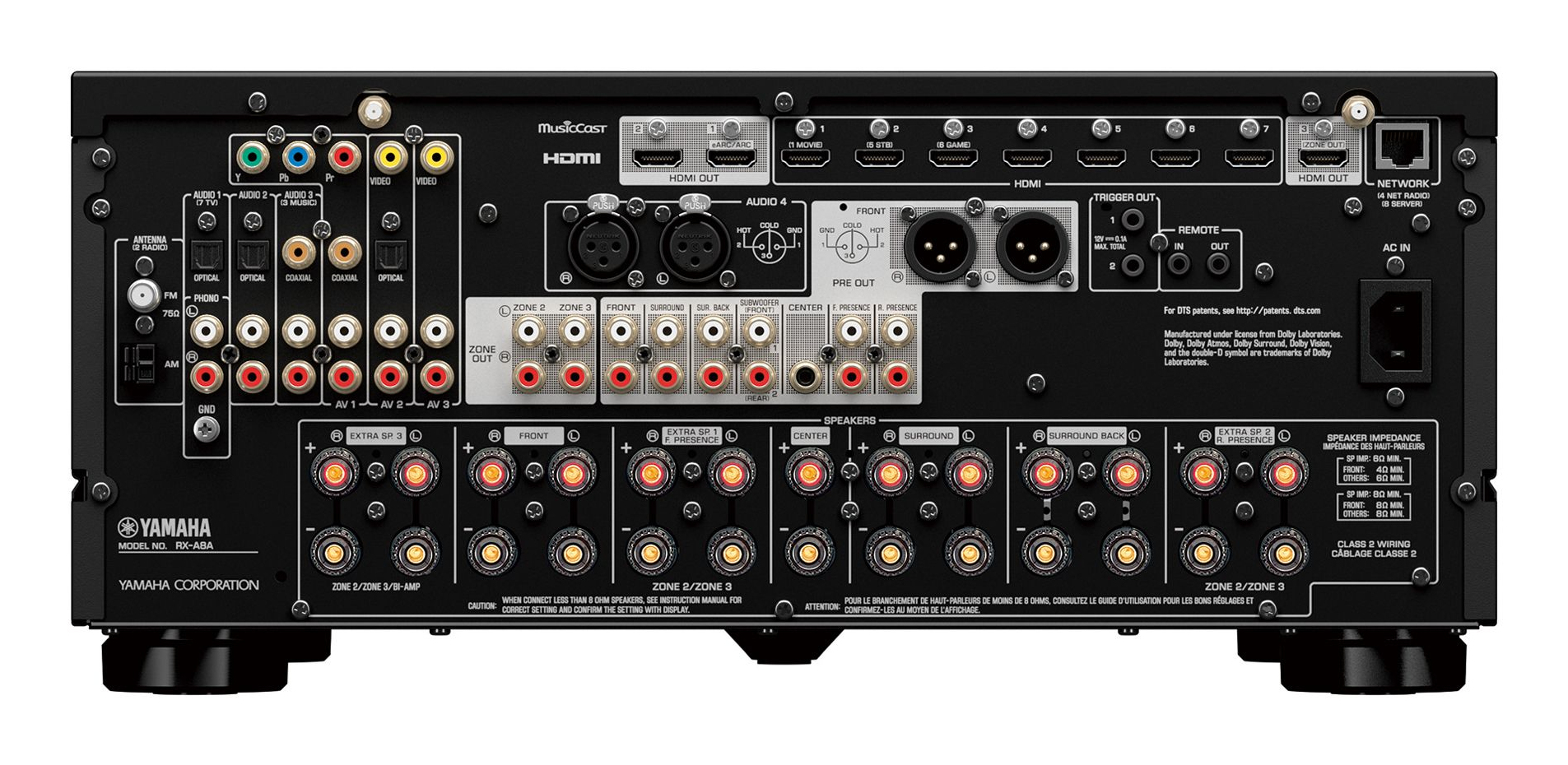

RX-A8A 150 W 11.2 channels Surround 3D Black
Model RX-A8APart no. RX-A8ABLEAN 027108959450
48 specifications
- Weight21.4 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)150 W
- HDMI in7
- Number of HDMI outputs3
- 12V triggerYes
Overview
- Weight
- 21.4 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 150 W
- HDMI in
- 7
- Number of HDMI outputs
- 3
- 12V trigger
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A8A
- Part numbers
- RX-A8ABL, RX-A8A
- EAN / UPC
- 027108959450, 4957812661706
- Also known as
- Yamaha RX-A8A 150 W 11.2 channels Surround 3D Black
Specifications
48 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 150 W |
| Audio output channels | 11.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 185 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out channels | 11.2 |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 7 |
| Component video (YPbPr/YCbCr) in | 1 |
| Composite video in | 2 |
| Digital audio optical in | 3 |
| Digital audio coaxial in | 2 |
| Remote (IR) input | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 3 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| 12V trigger | Yes |
| 12V trigger ports quantity | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WAV, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth profiles | AAC, SBC |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB, FM |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision |
| 3D | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| HDMI version | 2.1 |
| Audio Return Channel (ARC) | Yes |
| Apple docking | No |
| Graphical user interface (GUI) | Yes |
| DSP programs quantity | 24 |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Bi-amping | Yes |
| ECO mode | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| Number of products included | 1 pc(s) |
| Product colour | Black |
| Remote control included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 477 mm |
| Height | 192 mm |
| Weight | 21.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
