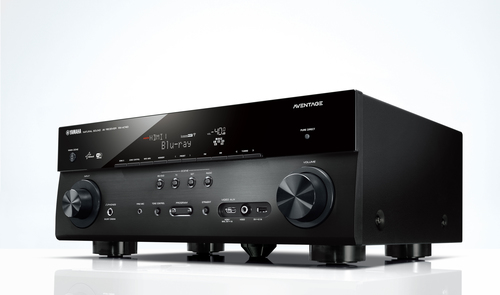

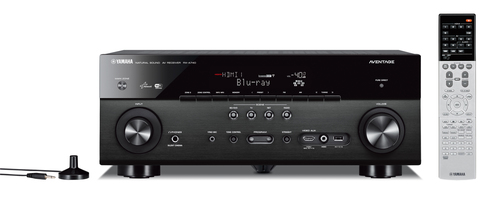

RX-A740 90 W 7.2 channels Surround 3D Black
Model RX-A740Part no. RX-A740BLEAN 027108948102
52 specifications
- Weight10.5 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)90 W
- HDMI in6
- Number of HDMI outputs1
- 12V triggerYes
Overview
- Weight
- 10.5 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 90 W
- HDMI in
- 6
- Number of HDMI outputs
- 1
- 12V trigger
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A740
- Part numbers
- RX-A740BL, RX-A740T
- EAN / UPC
- 027108948102, 4957812557436, 4957812557467
- Also known as
- Yamaha RX-A740 90 W 7.2 channels Surround 3D Black
Specifications
52 specifications in 11 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 90 W |
| Audio output channels | 7.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 150 W |
| Dynamic power per channel (4 Ohm) | 190 W |
| Dynamic power per channel (8 Ohm) | 125 W |
| Total Harmonic Distortion (THD) | 0.09% |
| Audio A/D Converter (ADC) | 24-bit/96kHz |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 6 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 5 |
| Digital audio optical in | 2 |
| Digital audio coaxial in | 2 |
| Remote (IR) input | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| 12V trigger | Yes |
| 12V trigger ports quantity | 1 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | FLAC, M4A, WAV |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| Apple docking compatibility | Not supported |
| Graphical user interface (GUI) | Yes |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Audio Lip synchronization | Yes |
| Bi-amping | Yes |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Remote control included | Yes |
| Volume control | Rotary |
| RS-232C for control | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 367 mm |
| Height | 171 mm |
| Weight | 10.5 kg |
