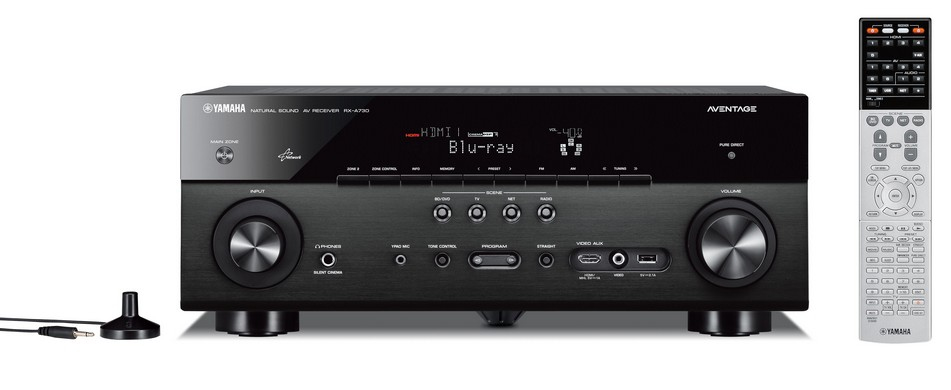

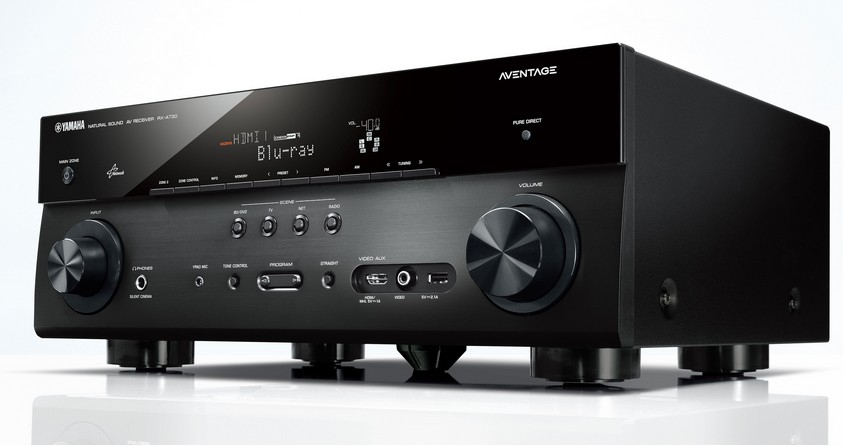

RX-A730 AV receiver
90 W 7.2 channels Surround 3D Black
Model RX-A730EAN 027108944494
55 specifications
- Weight10.4 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)90 W
- HDMI in1
- Number of HDMI outputs6
- Speakers connectivity typeBanana connector
Overview
- Weight
- 10.4 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 90 W
- HDMI in
- 1
- Number of HDMI outputs
- 6
- Speakers connectivity type
- Banana connector
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A730
- Part numbers
- RX-A730, ARXA730TI
- EAN / UPC
- 027108944494, 4957812530255, 4957812530286
- Also known as
- Yamaha RX-A730 AV receiver 90 W 7.2 channels Surround 3D Black
Specifications
55 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 90 W |
| Audio output channels | 7.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 105 W |
| Dynamic power per channel (4 Ohm) | 200 W |
| Dynamic power per channel (8 Ohm) | 130 W |
| Total Harmonic Distortion (THD) | 0.9% |
| Audio D/A Converter (DAC) | 24-bit/192kHz |

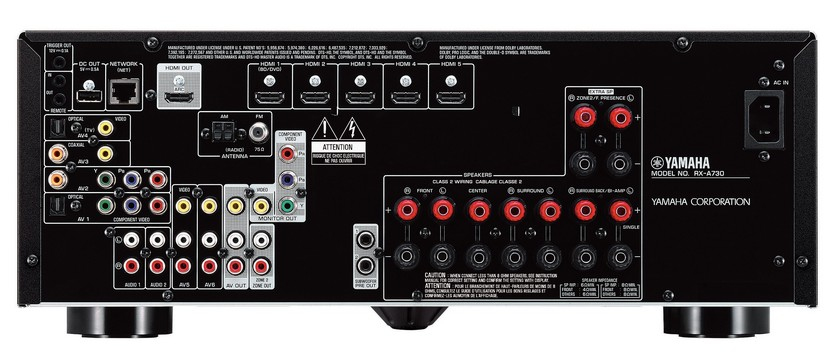

Inputs
| Specification | Value |
|---|---|
| HDMI in | 1 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 5 |
| Audio (L/R) in | 4 |
| Digital audio optical in | 2 |
| Digital audio coaxial in | 2 |
| Remote (IR) input | 1 |
| AC (power) in | Yes |
| Ethernet LAN (RJ-45) ports | 1 |
| Multichannel audio input type | RCA |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 6 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| Audio (L/R) out | 1 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
| Line-out | Yes |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Banana connector |
| AM antenna ports quantity | 1 |
| FM antenna ports quantity | 1 |
| 12V trigger ports quantity | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported graphics resolutions | 1920 x 1080 (HD 1080) |
| 3D | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Mobile High-Definition Link (MHL) | Yes |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Bi-amping | Yes |
| Product colour | Black |
| Remote control included | Yes |
| USB 2.0 ports quantity | 1 |
| Volume control | Rotary |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 368 mm |
| Height | 171 mm |
| Weight | 10.4 kg |
Packaging content
| Specification | Value |
|---|---|
| Cables included | AC |
| Manual | Yes |
