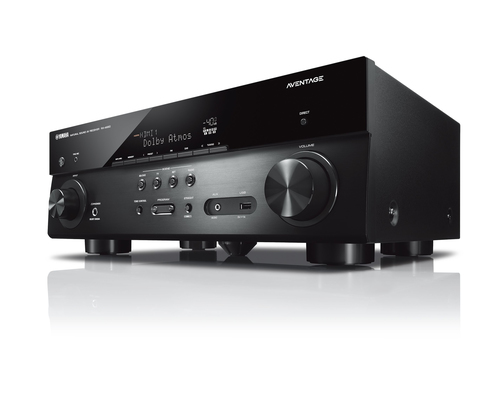

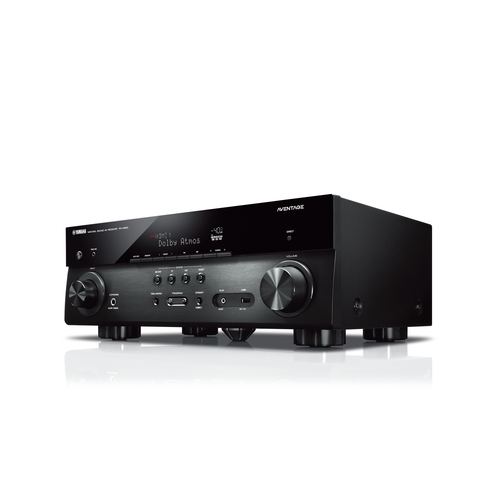

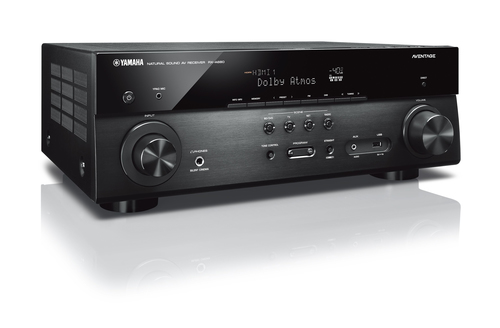

RX-A680 7.2 channels stereo 3D Black
Model RX-A680Part no. RXA680-BLEAN 4957812629379
59 specifications
- ConnectivityWired & Wireless
- Weight8.3 kg
- ColourBlack
- Audio output channels7.2 channels
- HDMI in4
- Number of HDMI outputs1
Overview
- Connectivity
- Wired & Wireless
- Weight
- 8.3 kg
- Colour
- Black
- Audio output channels
- 7.2 channels
- HDMI in
- 4
- Number of HDMI outputs
- 1
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A680
- Part numbers
- RXA680-BL, RXA680-TI
- EAN / UPC
- 4957812629379, 4957812629423
- Also known as
- Yamaha RX-A680 7.2 channels stereo 3D Black
Specifications
59 specifications in 12 groups
Audio
| Specification | Value |
|---|---|
| Audio output channels | 7.2 channels |
| Receiver type | stereo |
| Power output per channel (1KHz@6 Ohm) | 115 W |
| Dynamic power per channel (4 Ohm) | 170 W |
| Input sensitivity | 200 mV |
| Output level | 100 mV |
| Input impedance | 47 Ω |
| Output impedance | 470 Ω |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out connectivity | Yes |
| Signal-to-Noise Ratio (SNR) | 110 dB |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 4 |
| Composite video in | 3 |
| Ethernet LAN (RJ-45) ports | 1 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Composite video out | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired & Wireless |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, DSD, FLAC, MP3, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
| Bluetooth version | 2.1+EDR |
| Bluetooth profiles | A2DP, AVRCP |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB, FM |
| Internet radio | Yes |
| Internet radio services supported | Deezer, Pandora, Tidal |
| Auto digital tuning | Yes |
| Preset stations quantity | 40 |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| Supported video modes | 480i, 480p, 576i, 576p, 720p, 1080i, 1080p |
| 3D | Yes |
| Video D/A Converter (DAC) | 32-bit/384kHz |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Audio Return Channel (ARC) | Yes |
| DSP programs quantity | 17 |
| Digital Signal Processing (DSP) | Yes |
| AV input | Yes |
| AirPlay | Yes |
| Audio input | Digital x 3, Analog x 5 |
| Auto standby | Yes |
| ECO mode | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Multi-Room Streaming (MRS) support | Yes |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Remote control included | Yes |
| Subwoofer | 2 x mono |
| Volume control | Buttons |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 330 mm |
| Height | 161 mm |
| Weight | 8.3 kg |
