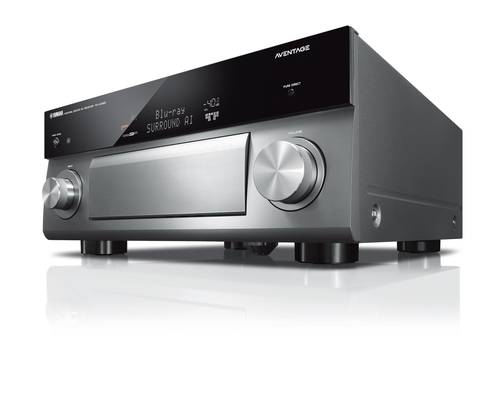

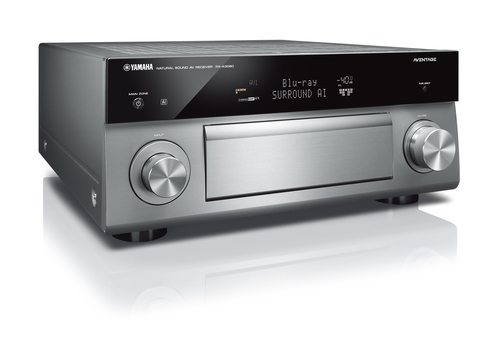

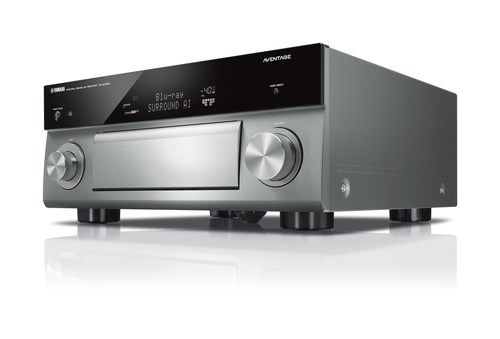

RX-A3080 150 W 9.2 channels Surround 3D Titanium
Model RX-A3080Part no. RXA3080-TIEAN 4957812633581
61 specifications
- Weight19.6 kg
- ColourTitanium
- Power output per channel (20-20KHz@8 Ohm)150 W
- HDMI in7
- Number of HDMI outputs3
- 12V triggerYes
Overview
- Weight
- 19.6 kg
- Colour
- Titanium
- Power output per channel (20-20KHz@8 Ohm)
- 150 W
- HDMI in
- 7
- Number of HDMI outputs
- 3
- 12V trigger
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A3080
- Part numbers
- RXA3080-TI, RXA3080-BL
- EAN / UPC
- 4957812633581, 027108957098, 4957812633499
- Also known as
- Yamaha RX-A3080 150 W 9.2 channels Surround 3D Titanium
Specifications
61 specifications in 10 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 150 W |
| Audio output channels | 9.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 230 W |
| Dynamic power per channel (4 Ohm) | 295 W |
| Dynamic power per channel (8 Ohm) | 175 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out channels | 11.2 |
| Pre-out connectivity | Yes |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 7 |
| Component video (YPbPr/YCbCr) in | 2 |
| Composite video in | 4 |
| Digital audio optical in | 3 |
| Digital audio coaxial in | 3 |
| Remote (IR) input | 1 |
| Ethernet LAN (RJ-45) ports | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 3 |
| Component video (YPbPr/YCbCr) out | 0 |
| Composite video out | 0 |
| Digital audio optical out | 0 |
| Digital audio coaxial out | 0 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| 12V trigger | Yes |
| 12V trigger ports quantity | 2 |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, ALAC, FLAC, MP3, WAV, WMA |
| Video formats supported | MPEG4 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | DAB, FM |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
| Video D/A Converter (DAC) | 32-bit/384kHz |
Technical details
| Specification | Value |
|---|---|
| Display | LCD |
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| Deep colour support | Yes |
| x.v.Color support | Yes |
| Equalizer | Yes |
| Audio Return Channel (ARC) | Yes |
| Multi-Zone capability | Yes |
| Multi-Zone quantity | 4 |
| Apple docking | Yes |
| Apple docking compatibility | iPad, iPhone |
| Graphical user interface (GUI) | Yes |
| DSP programs quantity | 24 |
| Digital Signal Processing (DSP) | Yes |
| AV input | Yes |
| AirPlay | Yes |
| Audio Lip synchronization | Yes |
| Bi-amping | Yes |
| ECO mode | Yes |
| HDCP | Yes |
| HDCP version | 2.2 |
| Headphone out | Yes |
| On Screen Display (OSD) | Yes |
| Product colour | Titanium |
| Remote control included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 474 mm |
| Height | 192 mm |
| Weight | 19.6 kg |
