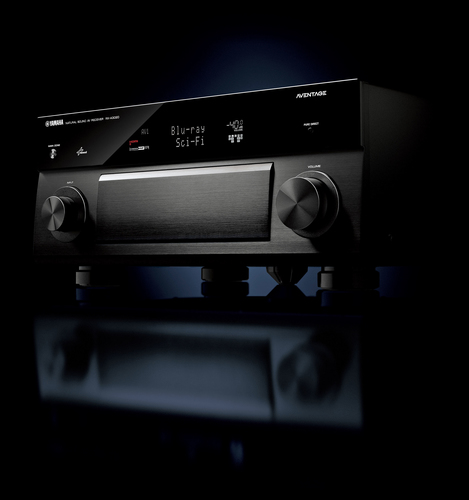

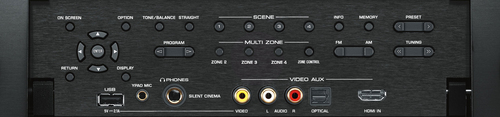

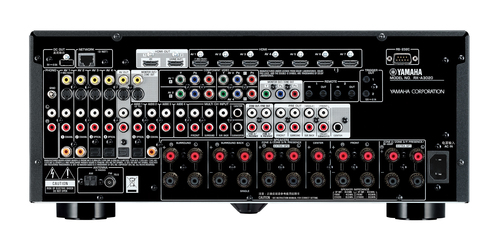

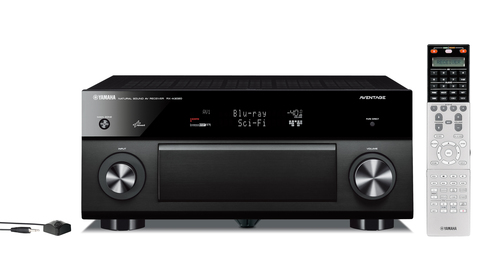

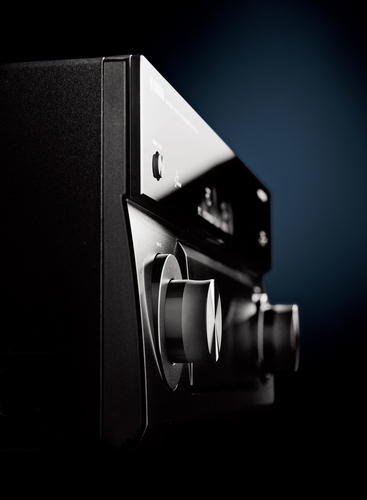

RX-A3020 AV receiver
150 W 9.2 channels Surround 3D Black
Model RX-A3020EAN 4957812516327
43 specifications
- ConnectivityWired
- Weight19.9 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)150 W
- HDMI in8
- Number of HDMI outputs1
Overview
- Connectivity
- Wired
- Weight
- 19.9 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 150 W
- HDMI in
- 8
- Number of HDMI outputs
- 1
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A3020
- Part number
- RX-A3020
- EAN / UPC
- 4957812516327, 4957812516402
- Also known as
- Yamaha RX-A3020 AV receiver 150 W 9.2 channels Surround 3D Black
Specifications
43 specifications in 13 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 150 W |
| Audio output channels | 9.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@6 Ohm) | 230 W |
| Dynamic power per channel (4 Ohm) | 295 W |
| Dynamic power per channel (8 Ohm) | 175 W |
| Total Harmonic Distortion (THD) | 0.06% |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
| Frequency range | 20 - 20000 Hz |
| Signal-to-Noise Ratio (SNR) | 8 dB |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 8 |
| Component video (YPbPr/YCbCr) in | 4 |
| Composite video in | 5 |
| S-Video inputs quantity | 4 |
| Digital audio optical in | 4 |
| Digital audio coaxial in | 3 |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Connectivity technology | Wired |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | Yes |
| Wi-Fi | No |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| 3D | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio |
| Apple docking compatibility | Not supported |
| AirPlay | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Product colour | Black |
| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.3 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 467 mm |
| Height | 192 mm |
| Weight | 19.9 kg |
Packaging content
| Specification | Value |
|---|---|
| Manual | Yes |
| User guide | Yes |
| Warranty card | Yes |
