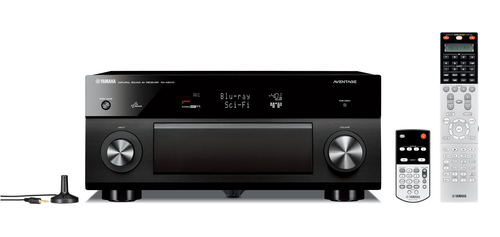

RX-A3010 150 W 9.2 channels Black
Model RX-A3010Part no. RXA3010BEAN 4957812497558
37 specifications
- Weight19.9 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)150 W
- HDMI in8
- Number of HDMI outputs2
- 12V triggerYes
Overview
- Weight
- 19.9 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 150 W
- HDMI in
- 8
- Number of HDMI outputs
- 2
- 12V trigger
- Yes
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A3010
- Part numbers
- RXA3010B, RX-A3010TI, RXA3010T, RX-A3010BL
- EAN / UPC
- 4957812497558, 4957812497626
- Also known as
- Yamaha RX-A3010 150 W 9.2 channels Black
Specifications
37 specifications in 9 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 150 W |
| Audio output channels | 9.2 channels |
| Power output per channel (1KHz@8 Ohm) | 230 W |
| Dynamic power per channel (4 Ohm) | 295 W |
| Dynamic power per channel (8 Ohm) | 175 W |
| Audio D/A Converter (DAC) | 24-bit/192kHz |
| RMS rated power | 2070 W |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 8 |
| Component video (YPbPr/YCbCr) in | 4 |
| Composite video in | 5 |
| S-Video inputs quantity | 5 |
| Digital audio optical in | 4 |
| Digital audio coaxial in | 3 |
| Remote (IR) input | 2 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 2 |
| Component video (YPbPr/YCbCr) out | 1 |
| Composite video out | 1 |
| S-Video outputs quantity | 1 |
| Digital audio optical out | 1 |
| Digital audio coaxial out | 0 |
| Remote (IR) output | 2 |
Ports & interfaces
| Specification | Value |
|---|---|
| 12V trigger | Yes |
| 12V trigger ports quantity | 2 |
| RS-232 ports | 1 |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, FM |
| Internet radio | Yes |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | Dolby Digital Plus, Dolby Pro Logic IIx, Dolby TrueHD, DTS-HD Master Audio |
| Graphical user interface (GUI) | Yes |
| Digital Living Network Alliance (DLNA) certified | Yes |
| Product colour | Black |
| Remote control included | Yes |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 467 mm |
| Height | 192 mm |
| Weight | 19.9 kg |
