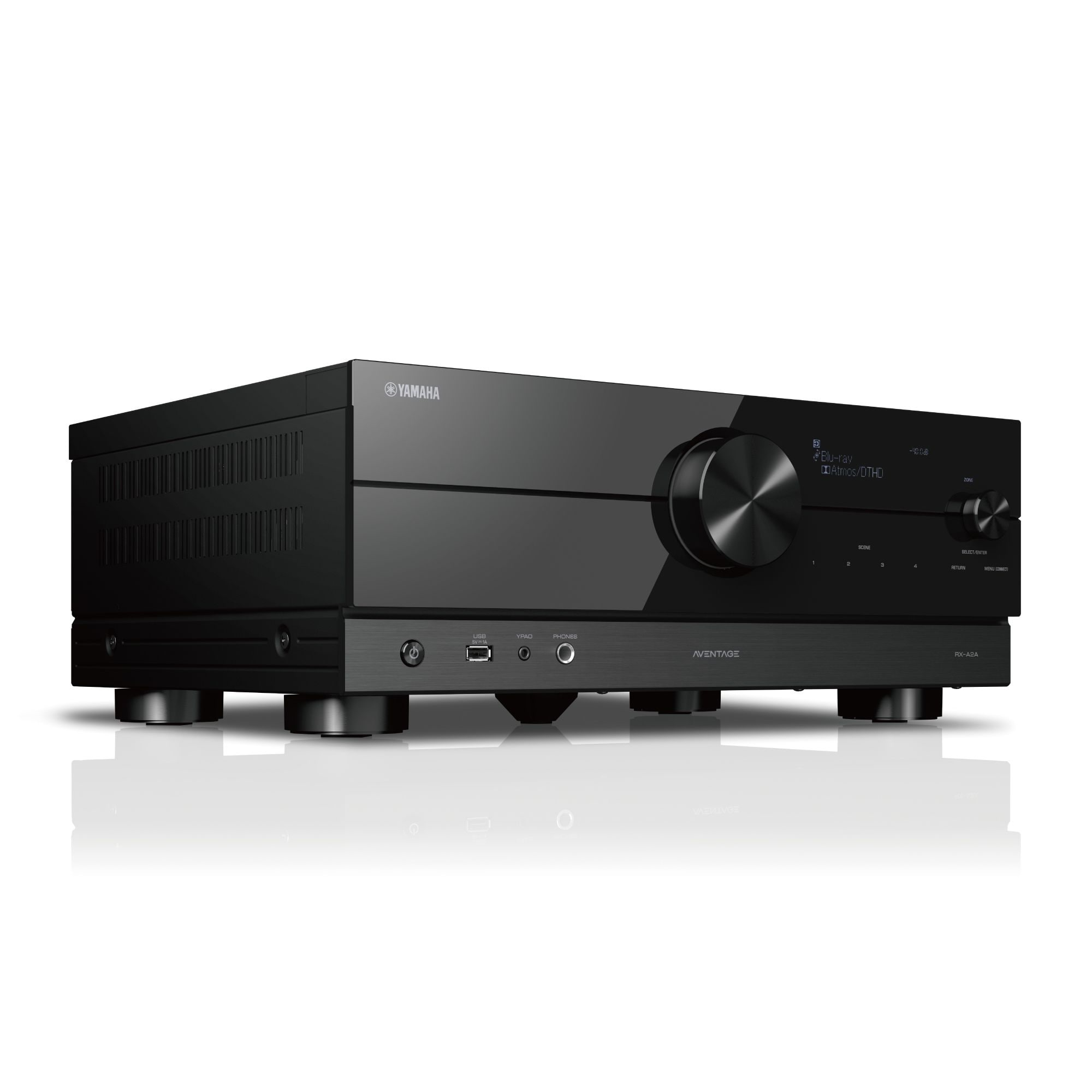

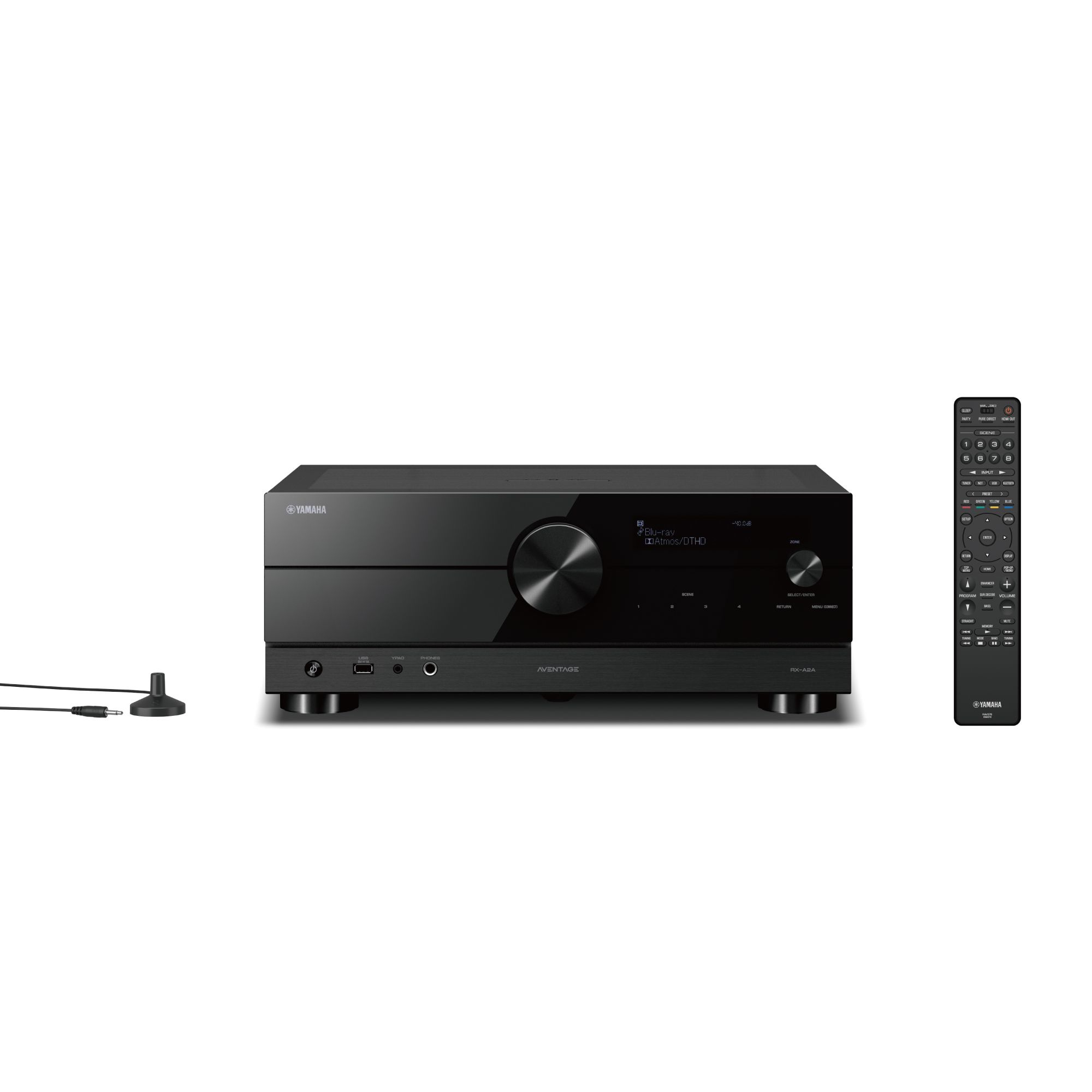

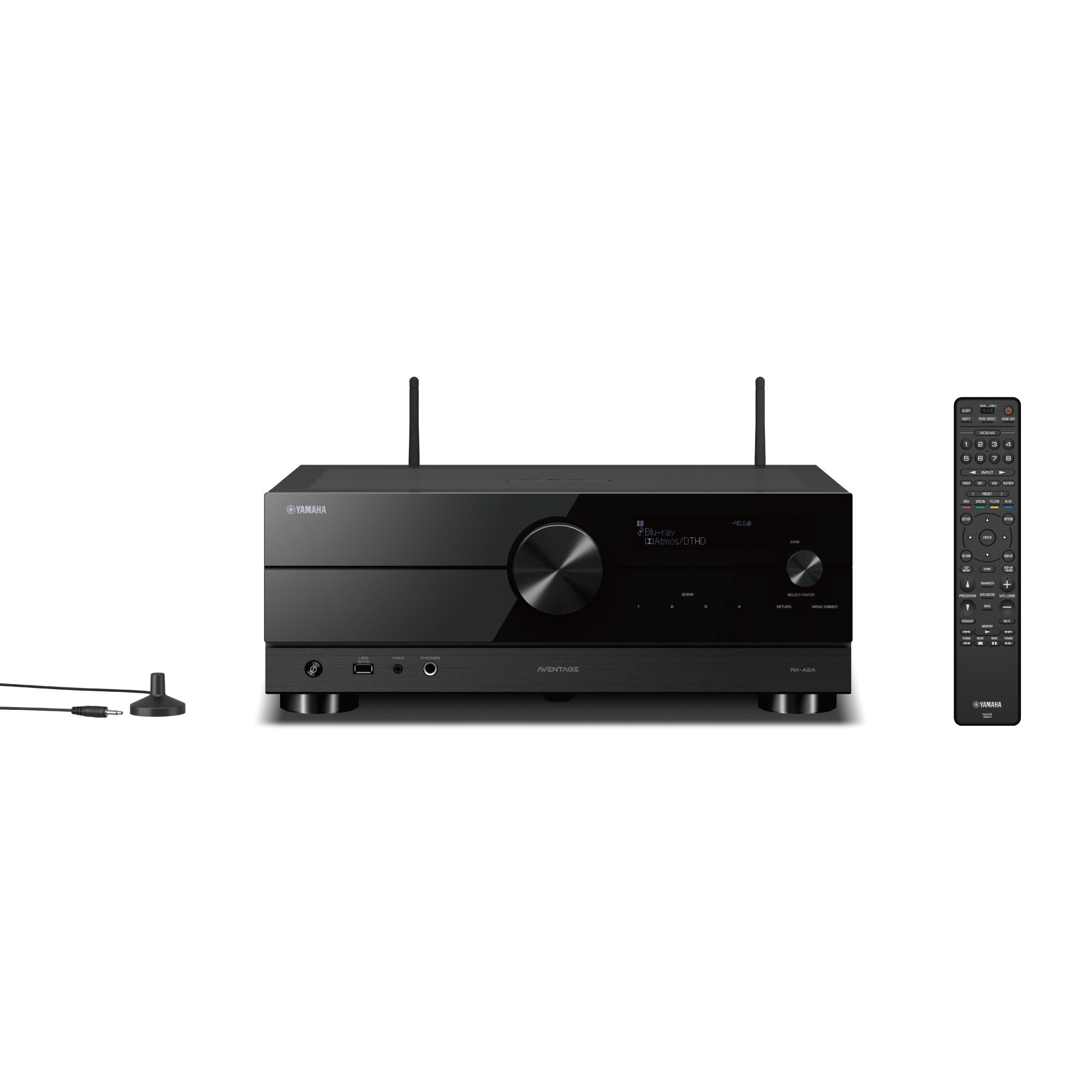

RX-A2A 100 W 7.2 channels Surround Black
Model RX-A2APart no. ARXA2ABLEAN 4957812660600
49 specifications
- ConnectivityWired & Wireless
- Weight10.2 kg
- ColourBlack
- Power output per channel (20-20KHz@8 Ohm)100 W
- HDMI in7
- Number of HDMI outputs1
Overview
- Connectivity
- Wired & Wireless
- Weight
- 10.2 kg
- Colour
- Black
- Power output per channel (20-20KHz@8 Ohm)
- 100 W
- HDMI in
- 7
- Number of HDMI outputs
- 1
- Brand
- Yamaha
- Category
- AV Receiver
- Model
- RX-A2A
- Part number
- ARXA2ABL
- EAN / UPC
- 4957812660600, 4957812660617
- Also known as
- Yamaha RX-A2A 100 W 7.2 channels Surround Black
Specifications
49 specifications in 15 groups
Audio
| Specification | Value |
|---|---|
| Power output per channel (20-20KHz@8 Ohm) | 100 W |
| Audio output channels | 7.2 channels |
| Receiver type | Surround |
| Power output per channel (1KHz@8 Ohm) | 125 W |
| Audio D/A Converter (DAC) | 32-bit/384kHz |
| Pre-out channels | 2.2 |
Inputs
| Specification | Value |
|---|---|
| HDMI in | 7 |
| Digital audio optical in | 1 |
| Digital audio coaxial in | 1 |
| Remote (IR) input | 1 |
| PC Audio in | Yes |
| USB ports quantity | 1 |
Outputs
| Specification | Value |
|---|---|
| Number of HDMI outputs | 1 |
| Remote (IR) output | 1 |
| Headphone outputs | 1 |
Ports & interfaces
| Specification | Value |
|---|---|
| Speakers connectivity type | Banana connector |
| Connectivity technology | Wired & Wireless |
File formats
| Specification | Value |
|---|---|
| Audio formats supported | AAC, AIFF, DSD, FLAC, MP3, WMA |
Network
| Specification | Value |
|---|---|
| Ethernet LAN | No |
| Wi-Fi | Yes |
| Bluetooth | Yes |
Radio
| Specification | Value |
|---|---|
| Supported radio bands | AM, DAB, FM |
Optical drive
| Specification | Value |
|---|---|
| Optical drive included | No |
Storage
| Specification | Value |
|---|---|
| Card reader integrated | No |
Video
| Specification | Value |
|---|---|
| High Dynamic Range (HDR) technology | Dolby Vision, HDR 10+ |
| Video upscaling | Yes |
Technical details
| Specification | Value |
|---|---|
| Audio decoders | DTS-HD Master Audio, DTS:X, Dolby Atmos, Dolby Digital Plus, Dolby Surround, Dolby TrueHD |
| HDMI version | 2.1 |
| Audio Return Channel (ARC) | Yes |
| Apple docking | No |
| Digital Signal Processing (DSP) | Yes |
| AirPlay | Yes |
| Auto standby | Yes |
| ECO mode | Yes |
| HDCP | Yes |
| HDCP version | 2.3 |
| On Screen Display (OSD) | Yes |
| Product colour | Black |
| Remote control included | Yes |
Power
| Specification | Value |
|---|---|
| Power consumption (standby) | 0.1 W |
Weight & dimensions
| Specification | Value |
|---|---|
| Width | 435 mm |
| Depth | 372 mm |
| Height | 171 mm |
| Weight | 10.2 kg |
Packaging content
| Specification | Value |
|---|---|
| AM antenna | Yes |
| Batteries included | Yes |
| FM antenna | Yes |
| User guide | Yes |
Other features
| Specification | Value |
|---|---|
| HDMI ports quantity | 8 |
